Evaporative Emission Control Canister: Service and Repair

Pre-Removal And Post-Installation Operation:

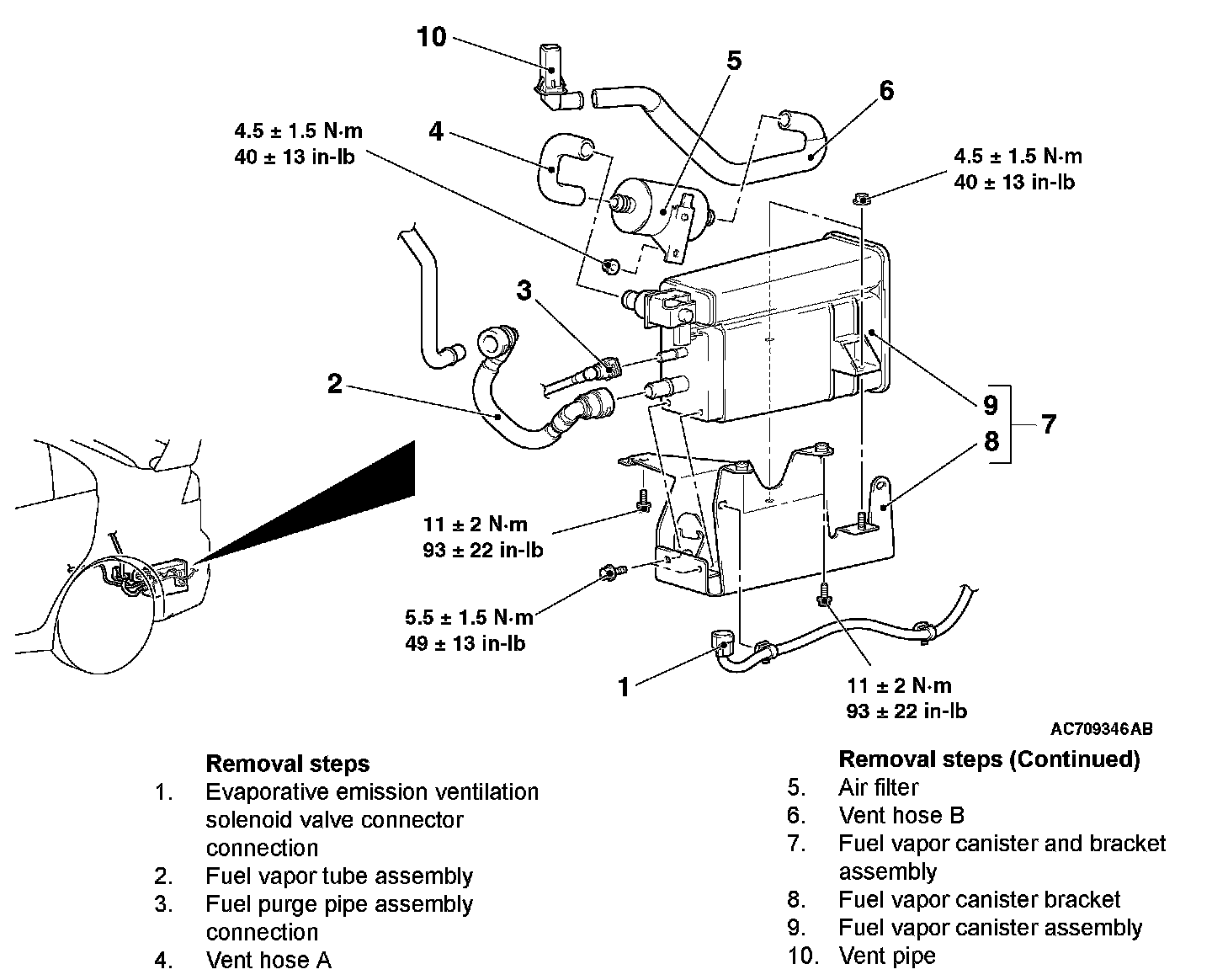

Removal Steps 1-10:
