Engine Controls - Revised VIN Writing & Variant Coding
No.: TSB-08-13-013DATE: August, 2008
MODEL: See Below
SUBJECT:
VIN WRITING & VARIANT CODING FOR ECM REPLACEMENT - SERVICE MANUAL REVISION
PURPOSE
The information that it is necessary to write the VIN and perform variant coding when replacing the Engine Control Module (ECM) is incorrect in the applicable service manual. This Technical Service Bulletin provides the correct information.
NOTE:
Instructions to conduct VIN writing and variant coding can be found in Group 00 - GENERAL in the applicable service manual and in the Advanced Electronic Service Procedures (AESP) self study training manual.
AFFECTED VEHICLE(S)
2007-08 Outlander
2008-09 Lancer
2008 Lancer Evolution

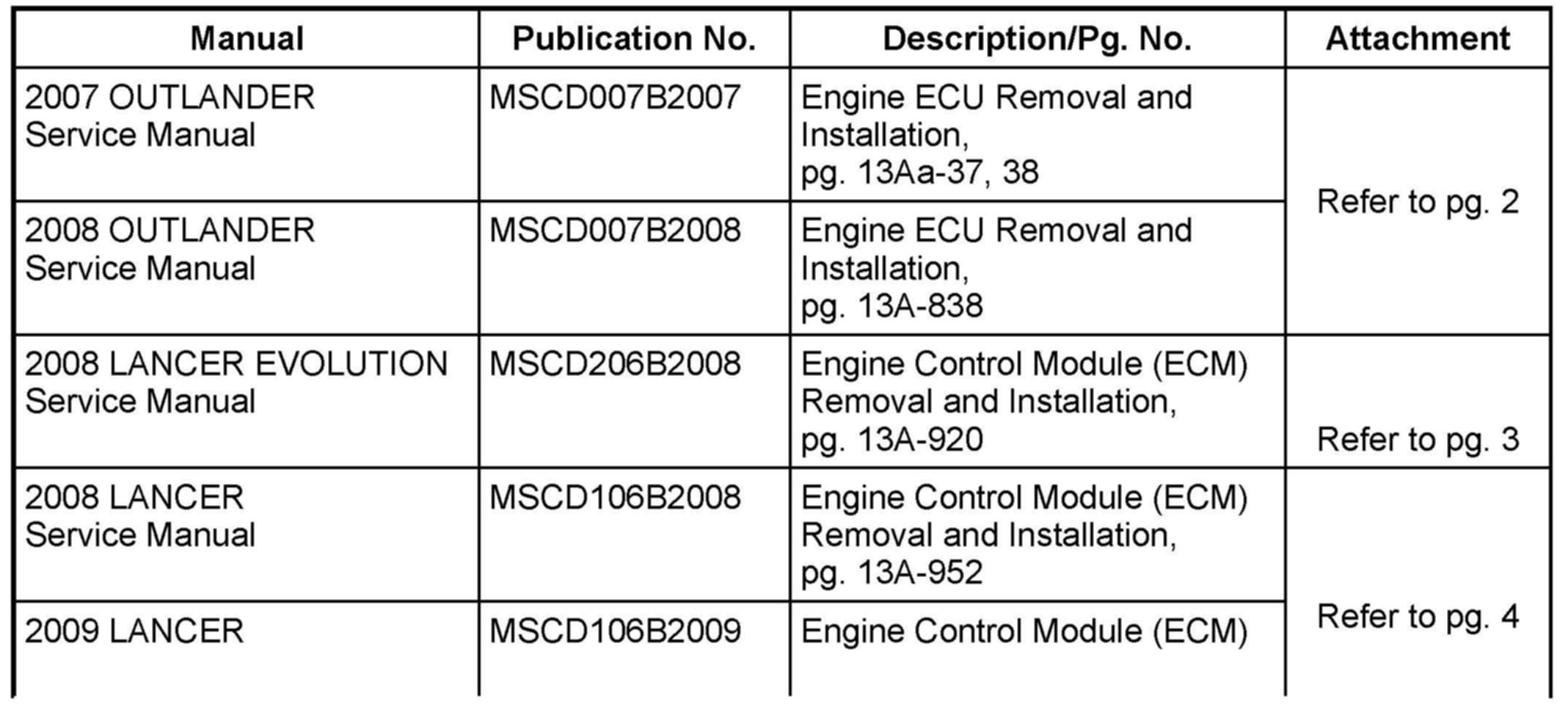

APPLICABLE MANUAL(S)

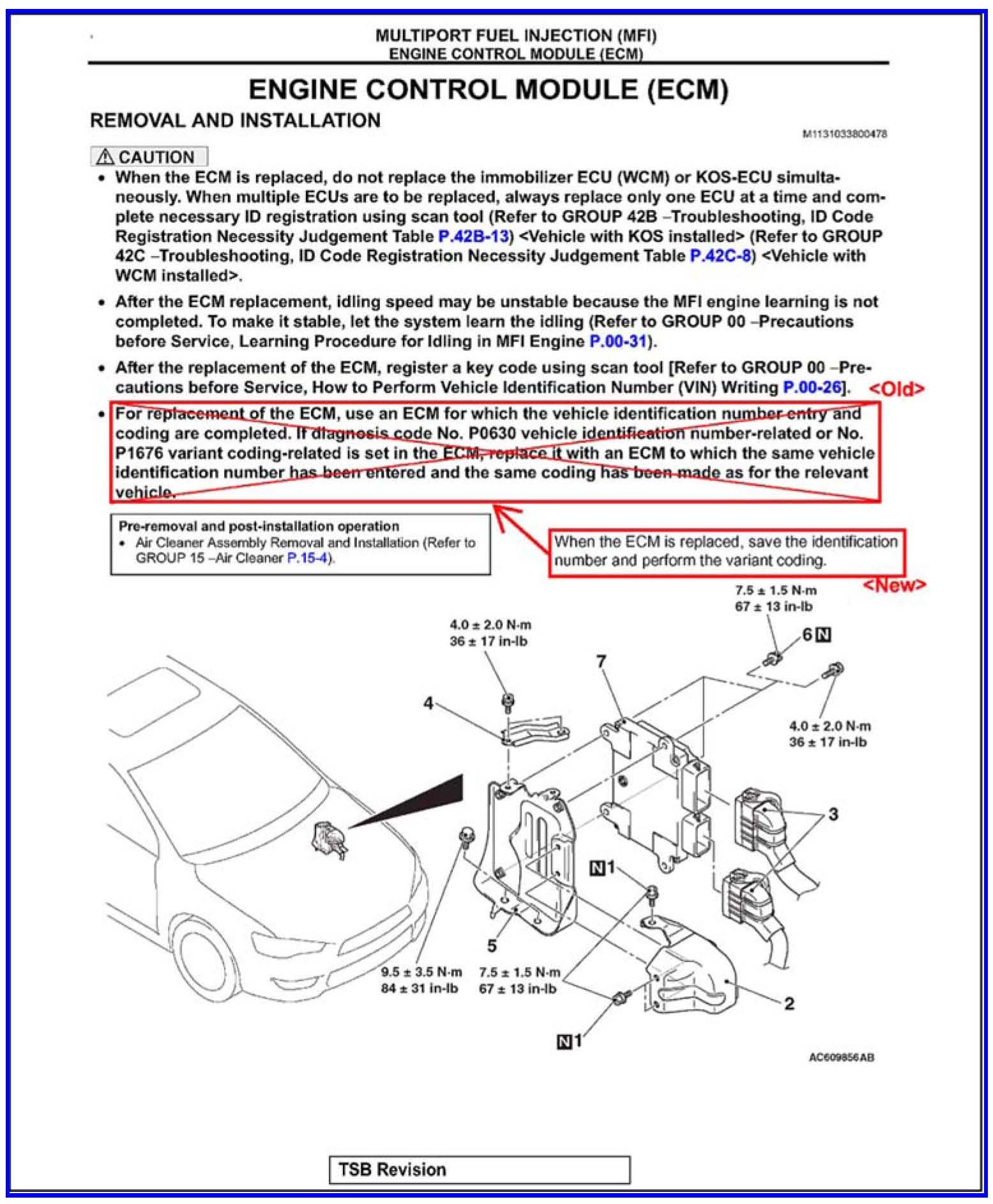

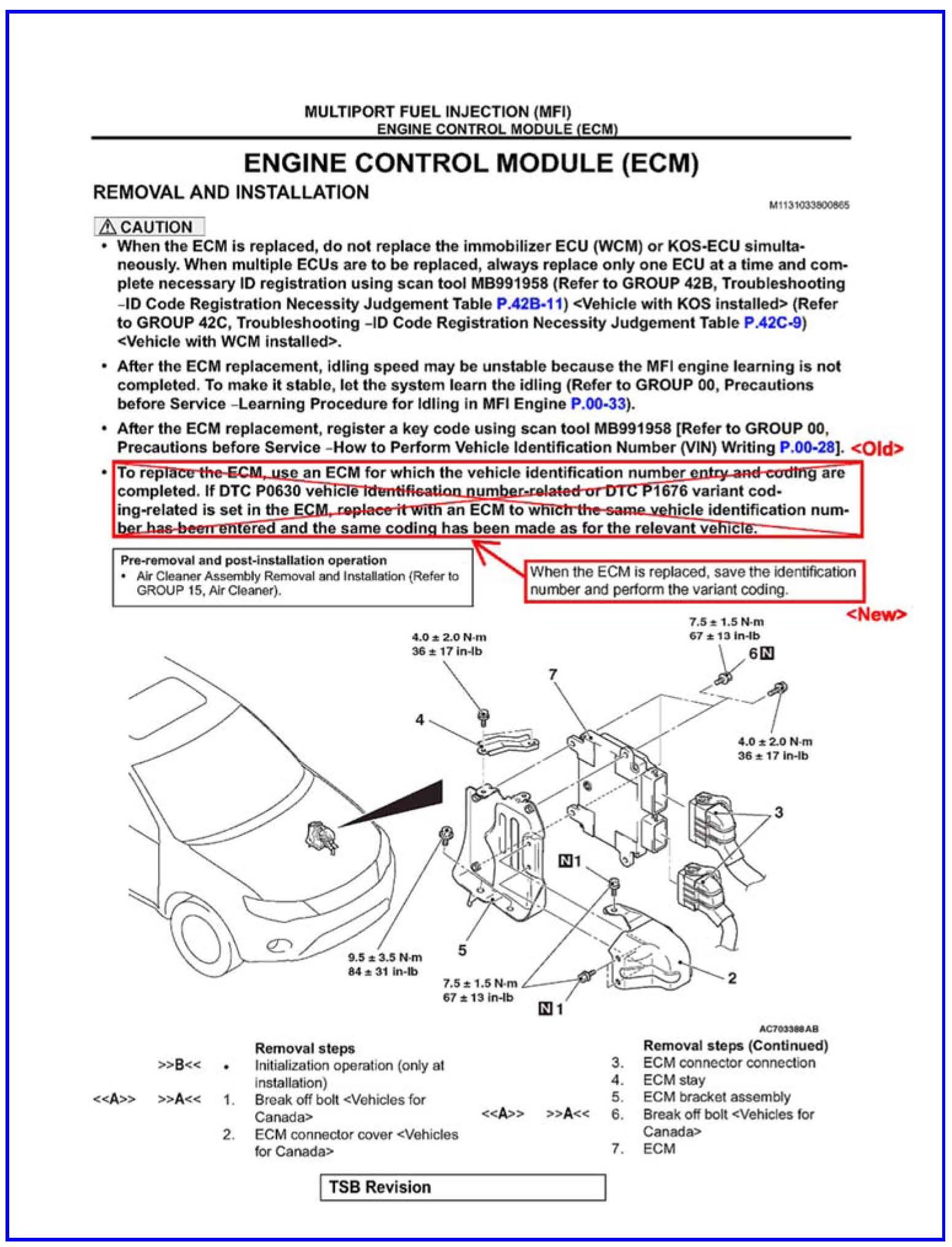

Service Manual Update For pages 13Aa-37, 38 and 13A-838

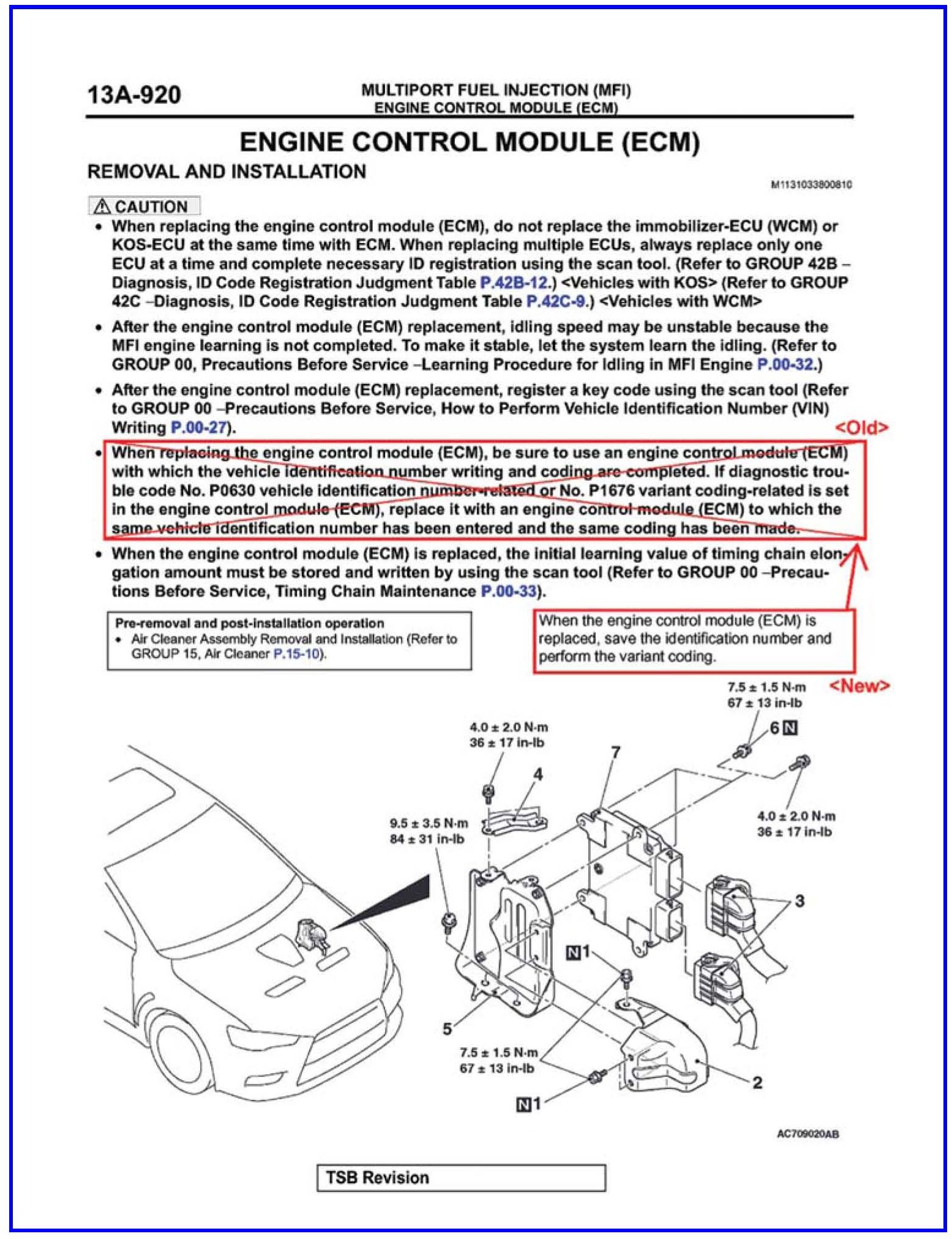

Service Manual Update For Pages 13A-920

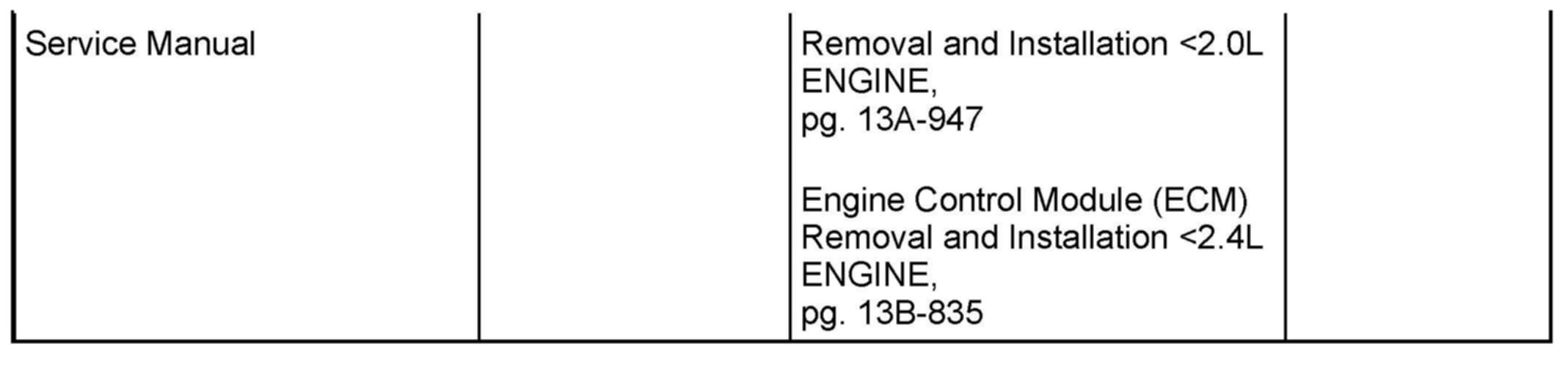

Service Manual Updates For Pages 13A-952 and 13A-947 and 13B-835
