Home >> Mitsubishi >> 2008 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Service and Repair

Computers and Control Systems: Service and Repair

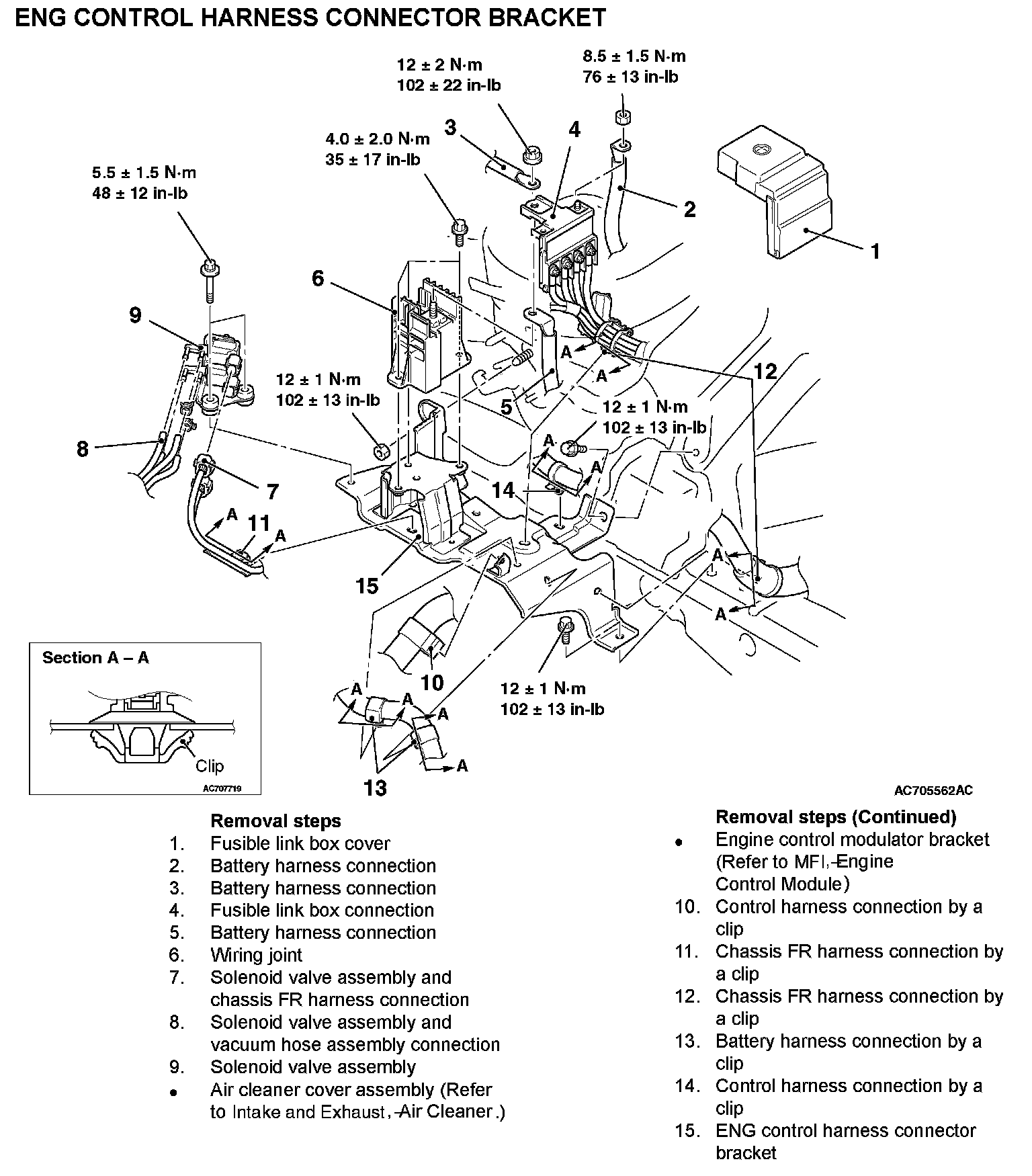

Removal Steps 1-15:
