Rear Axle

HUB BOLT REPLACEMENT

Required Special Tools:
^ MB990767: Front Hub and Flange Yoke Holder
^ MB991618: Hub Bolt Remover

1. Remove the rear brake disk.

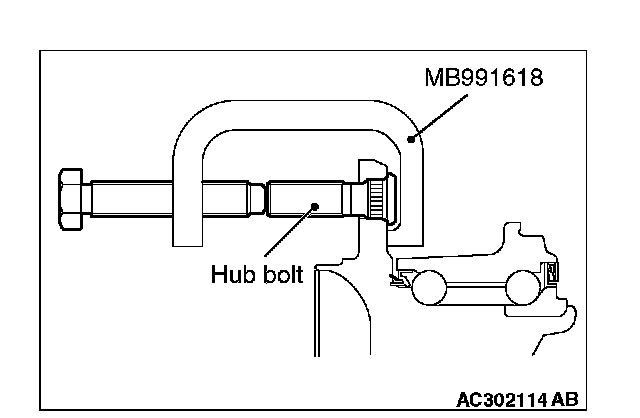

2. Use special tool MB991618 to remove the hub bolts.

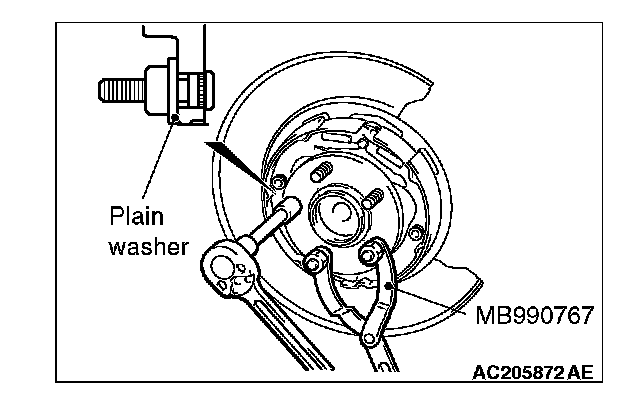

3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the rear brake disk.
