Maintenance Indicator Reset

Service Reminder

Shows the time until the periodic inspection every 6 months (7500 miles or 12000 km).

"_ _ _" is displayed to alert the driver when the inspection time has arrived.

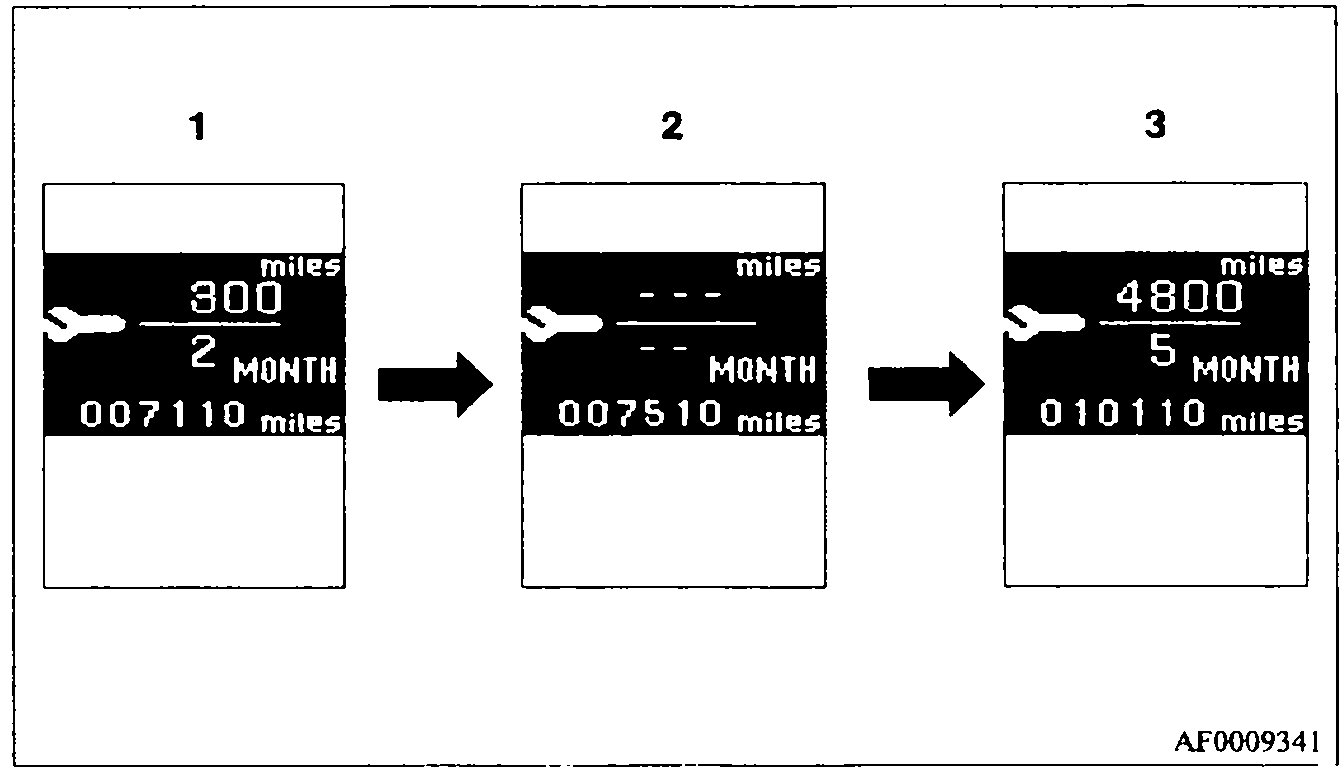

1. Shows the time until the next periodic inspection.

NOTE - Shows the distance in units of 100 miles (100 km) and the time in units of 1 month.

2. This informs you that a periodic inspection is due. Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.

At that time, when the ignition switch is switched from the "OFF" position to the "ON" position. "PERIODIC INSPECTION" is displayed for a few seconds on the information screen.






3. After your vehicle is inspected at an authorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.


To Reset

The "_ _ _" display can be reset while the ignition switch is in the "OFF" position. When the display is reset, the time until the next periodic inspection is displayed and "PERIODIC INSPECTION" is no longer displayed when the ignition switch is switched from the "OFF" position to the "ON" position.

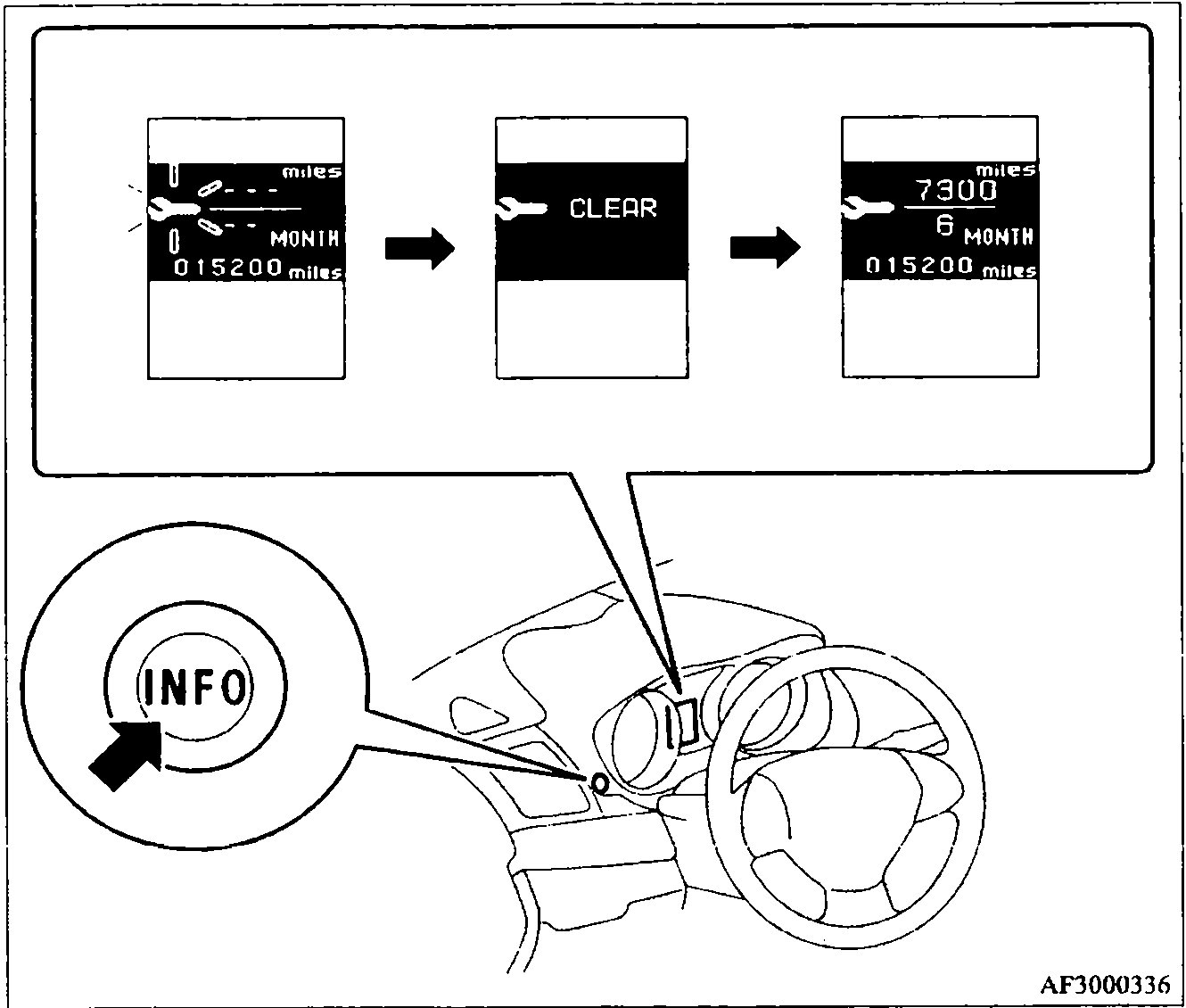

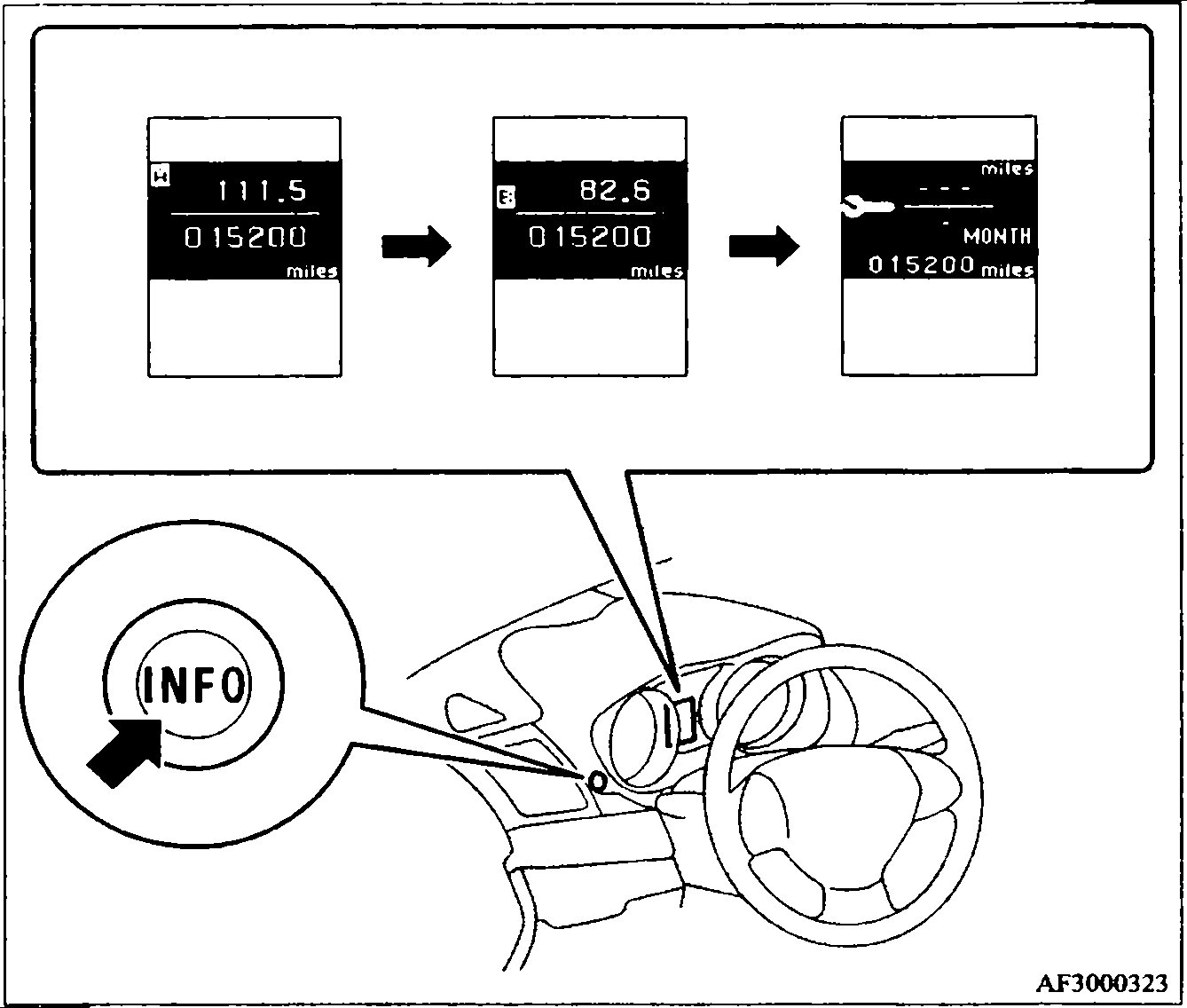

1. When you lightly press the multi-information meter switch. The information screen changes to the service reminder display screen.






2. Press and hold the multi-information meter switch (for about 2 seconds or more) to display "tool icon" and make it flash. (If there is no operation for about 10 seconds with this indicator flashing, the display returns to the previous screen.)

3. With this indicator flashing, if you lightly press the multi-information meter switch, the screen switches from "_ _ _" to "CLEAR". After that, the time until the next periodic inspection is shown.






NOTE:

- The "_ _ _" display cannot be reset while the ignition switch is in the "ON" position.
- When "_ _ _" is displayed, after a certain distance and a certain period of time, the display is reset and the time until the next periodic inspection is displayed.
- If you accidentally reset the display, consult an authorized Mitsubishi Motors dealer for assistance.
