Hose/Line HVAC: Service and Repair

REFRIGERANT LINE

REMOVAL AND INSTALLATION

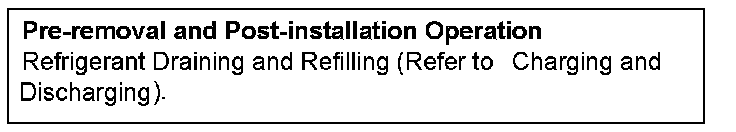

Pre-removal & Post-installation Operation:

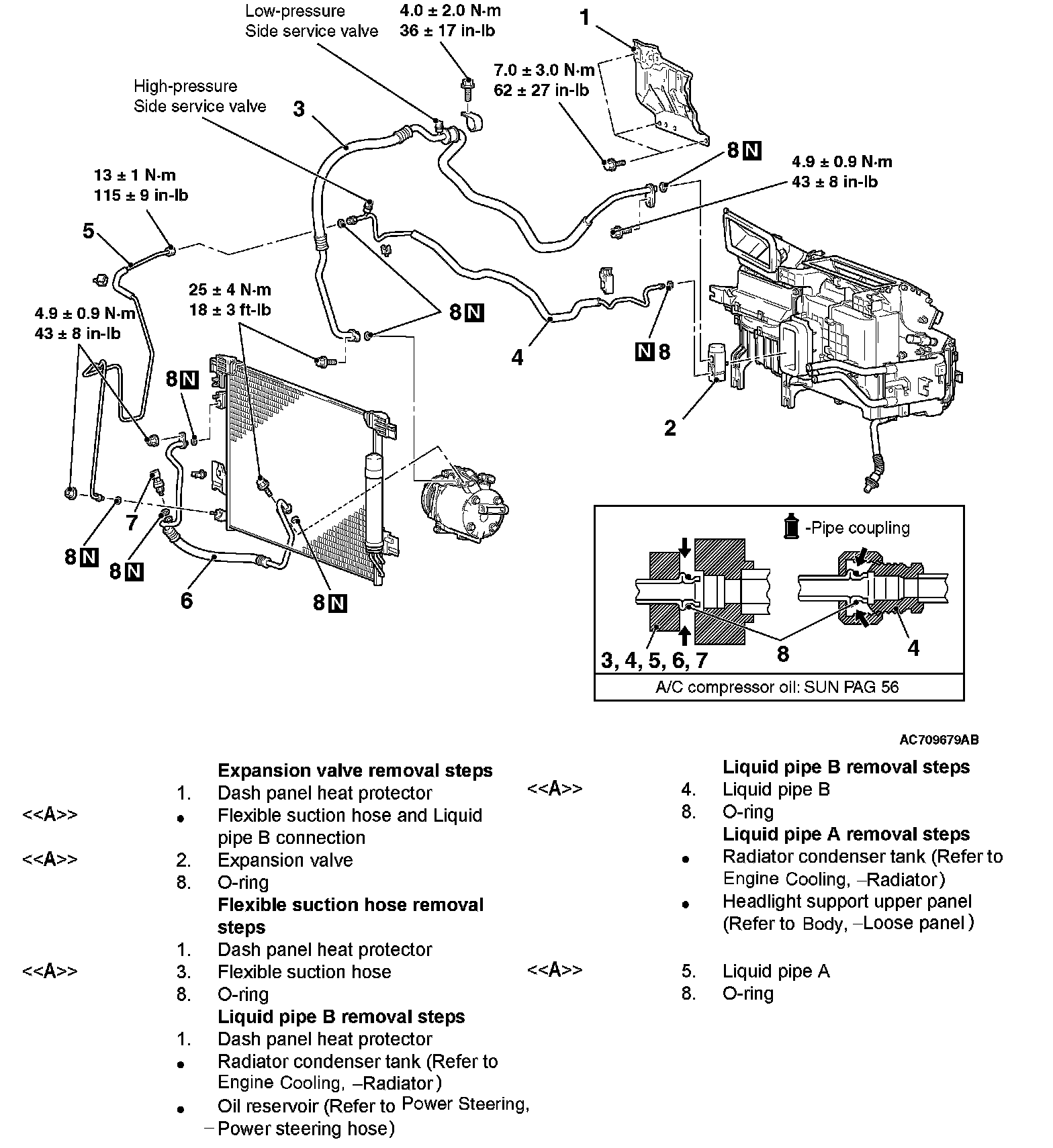

Removal Steps 1-8 (Part 1):

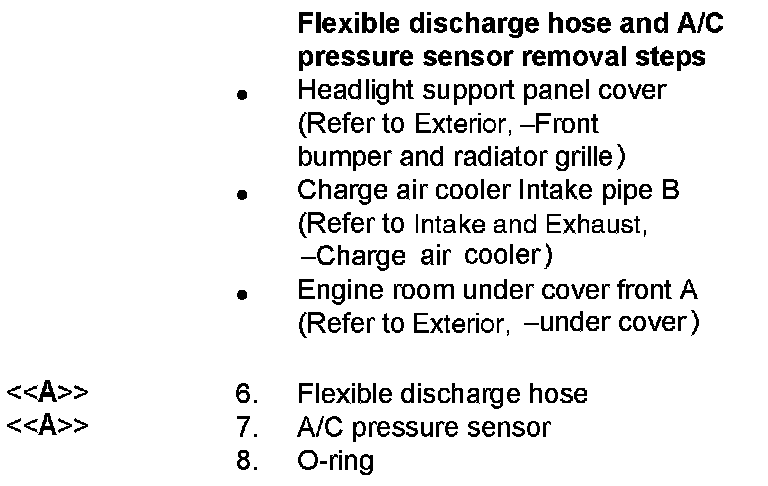

Removal Steps 1-8 (Part 2):

REMOVAL SERVICE POINT

[[A]]HOSE/PIPE DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of other foreign bodies, plug the condenser, compressor, and expansion valve nipples.
