Turn Signal Lamp: Service and Repair

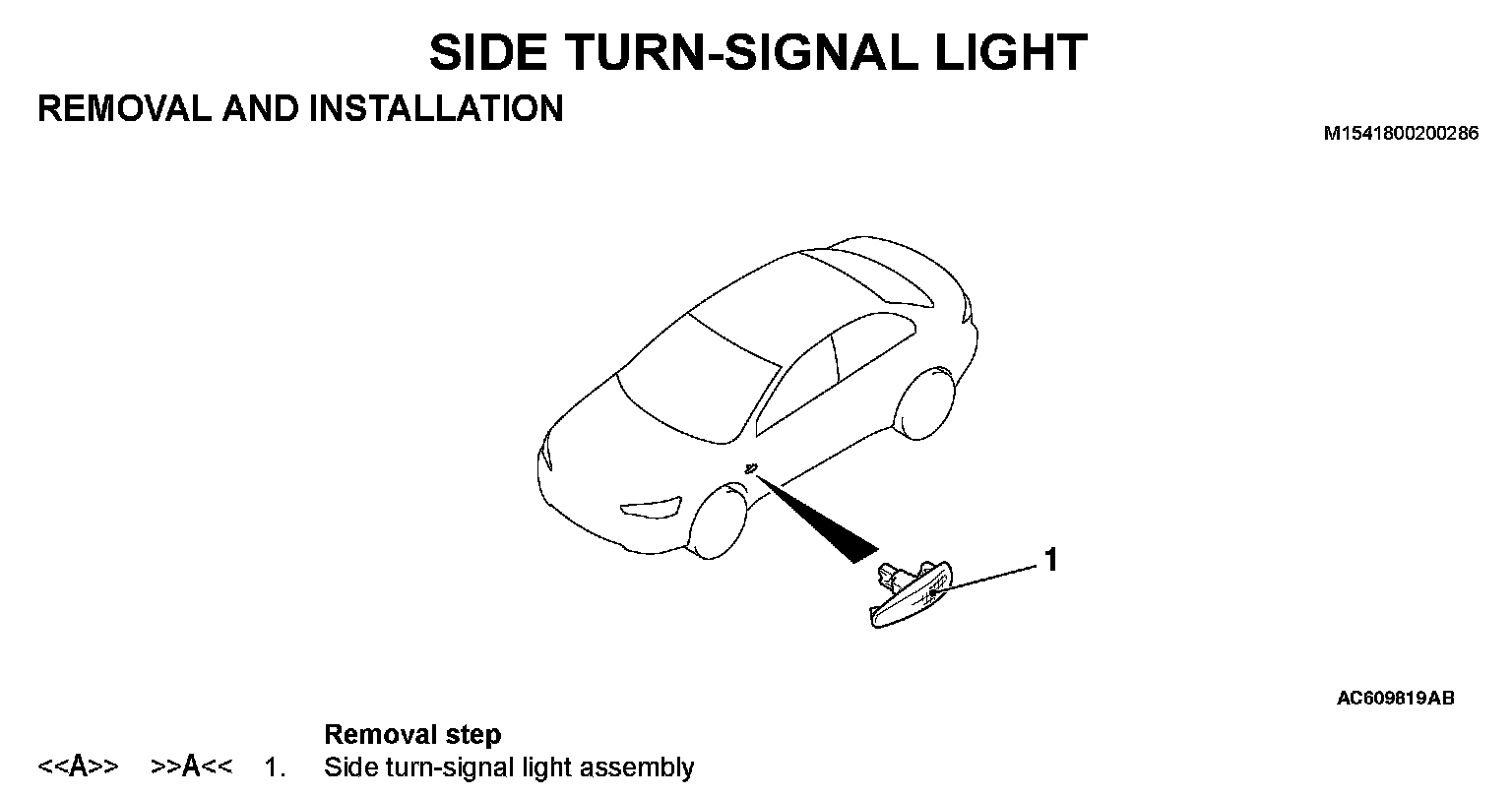

SIDE TURN-SIGNAL LIGHT

REMOVAL AND INSTALLATION

Removal Step 1:

REMOVAL SERVICE POINT

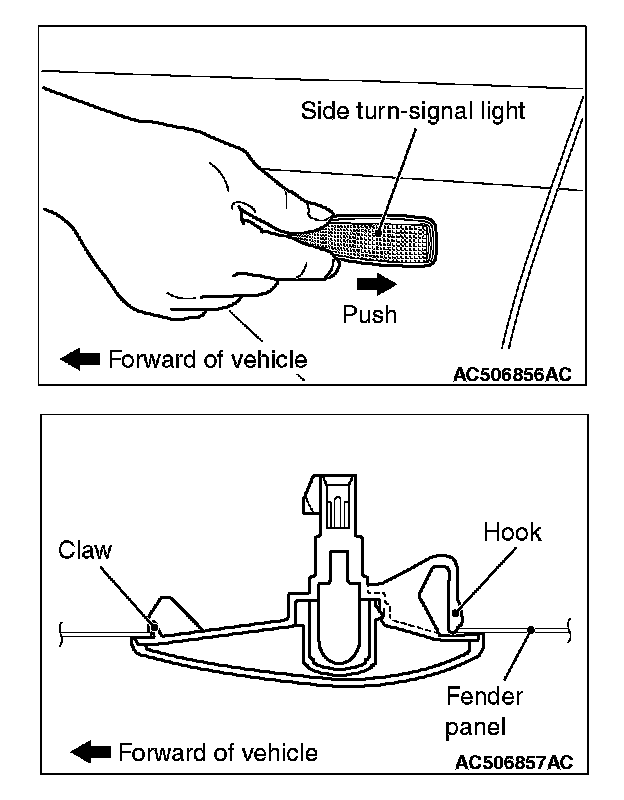

[[A]] SIDE TURN-SIGNAL LIGHT REMOVAL




Push the side turn-signal light toward the vehicle rear to bend the hook, and then remove by disengaging the tab from the fender panel.

INSTALLATION SERVICE POINT

]]A[[ SIDE TURN-SIGNAL LIGHT INSTALLATION
Engage the claw to the fender panel to install the side turn signal light.
