Home >> Mitsubishi >> 2008 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Service and Repair

Horn: Service and Repair

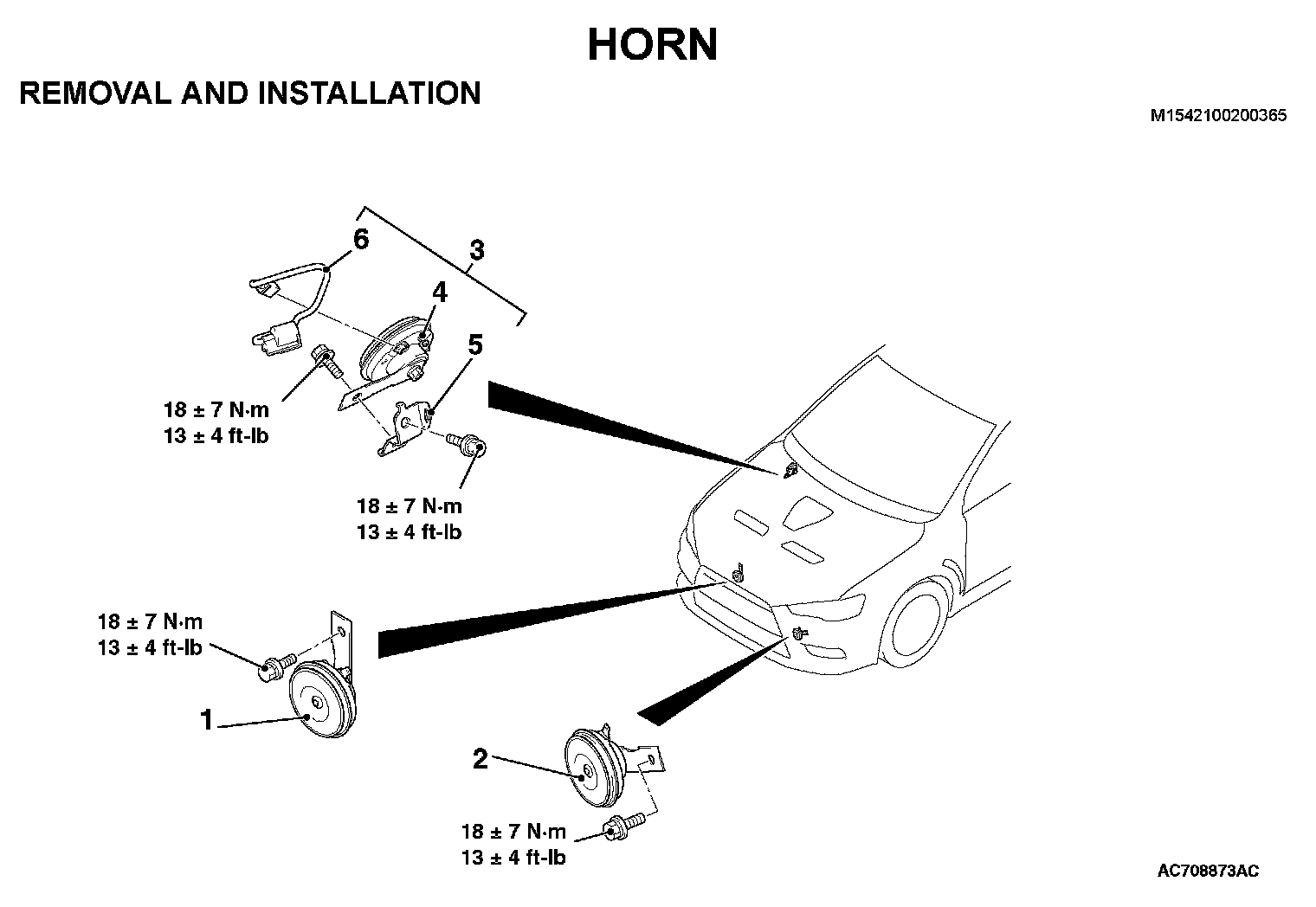

Removal Steps 1-6 (Part 1):



Removal Steps 1-6 (Part 2):
