Bracket Repair of Headlight Assembly
Bracket Repair of Headlight Assembly
*This document added per manufacturer TSB #08-54-012

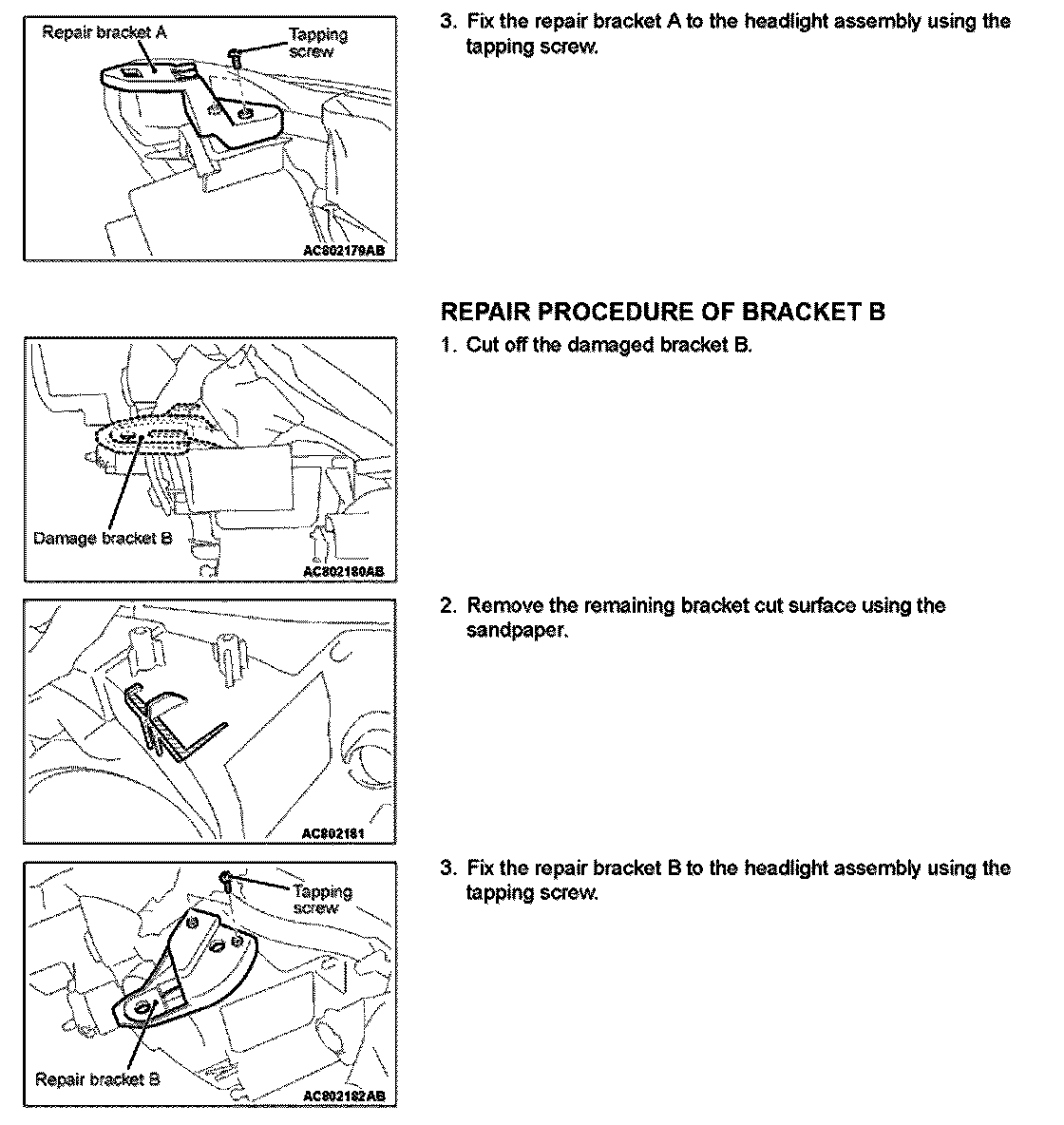

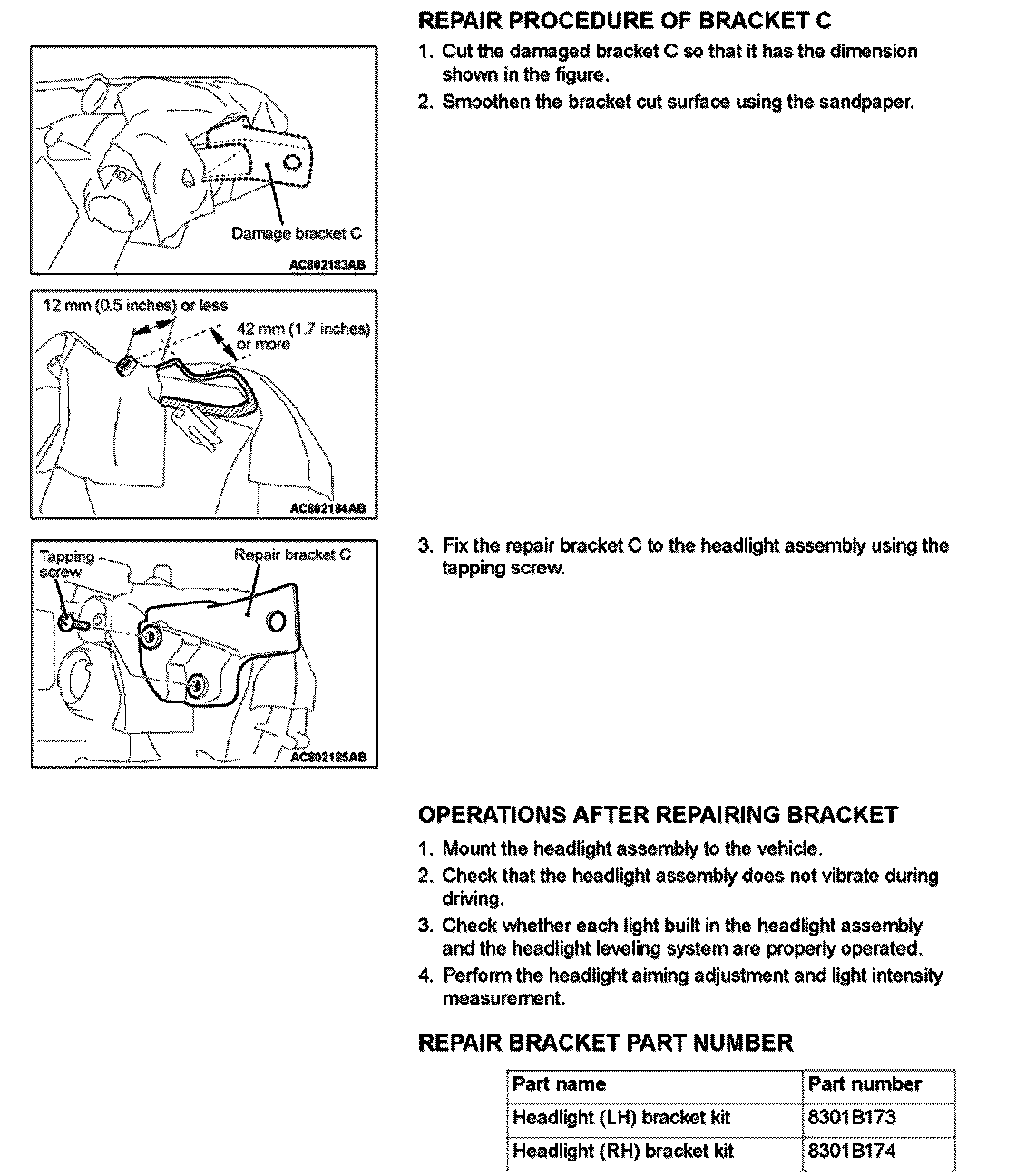

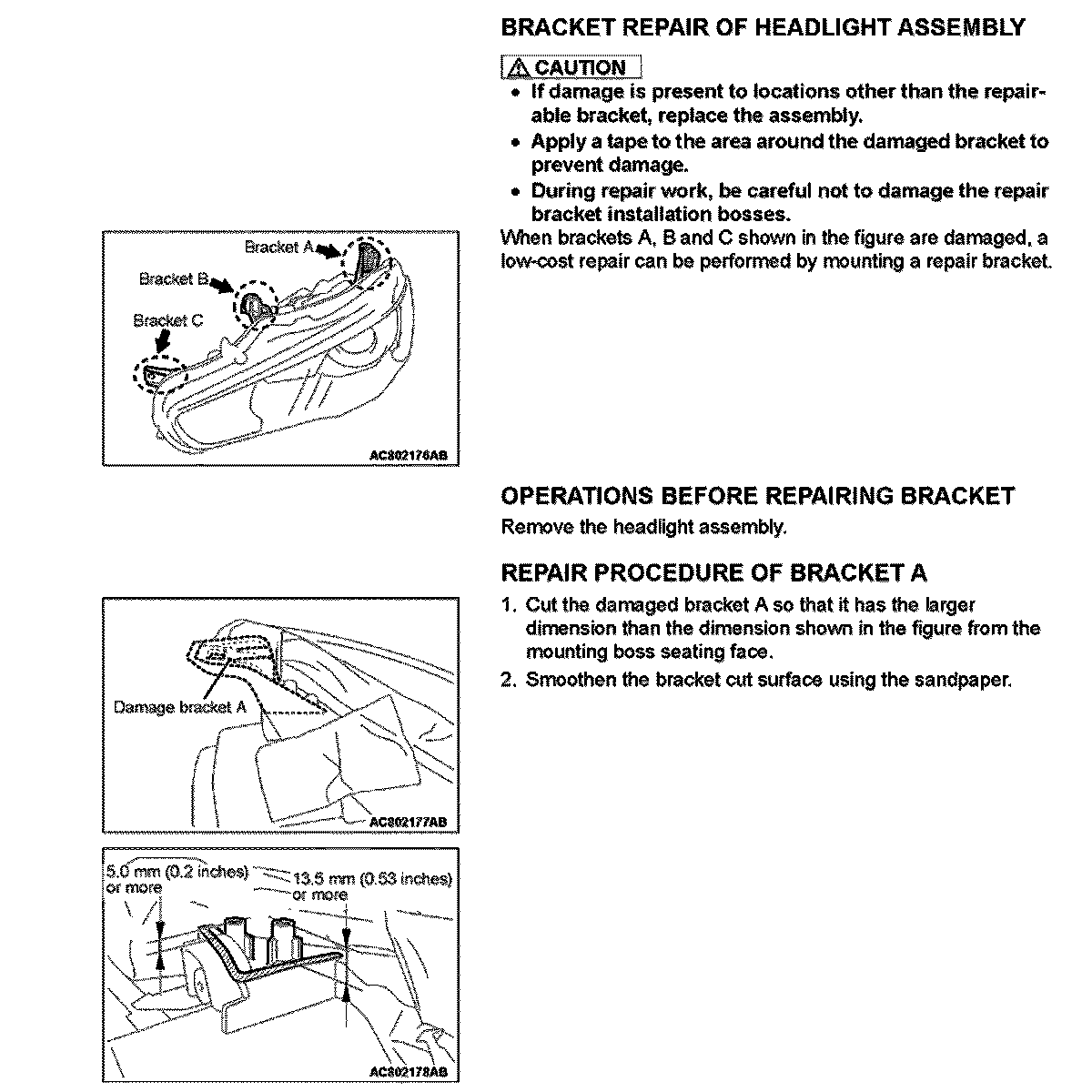

BRACKET REPAIR OF HEADLAMP ASSEMBLY
