Fog/Driving Lamp: Service and Repair
FOG LIGHT
REMOVAL AND INSTALLATION

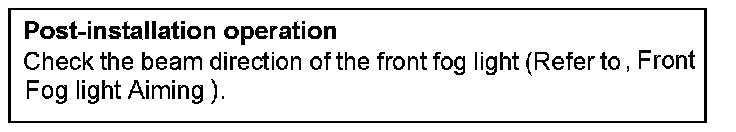

Post-installation Operation:

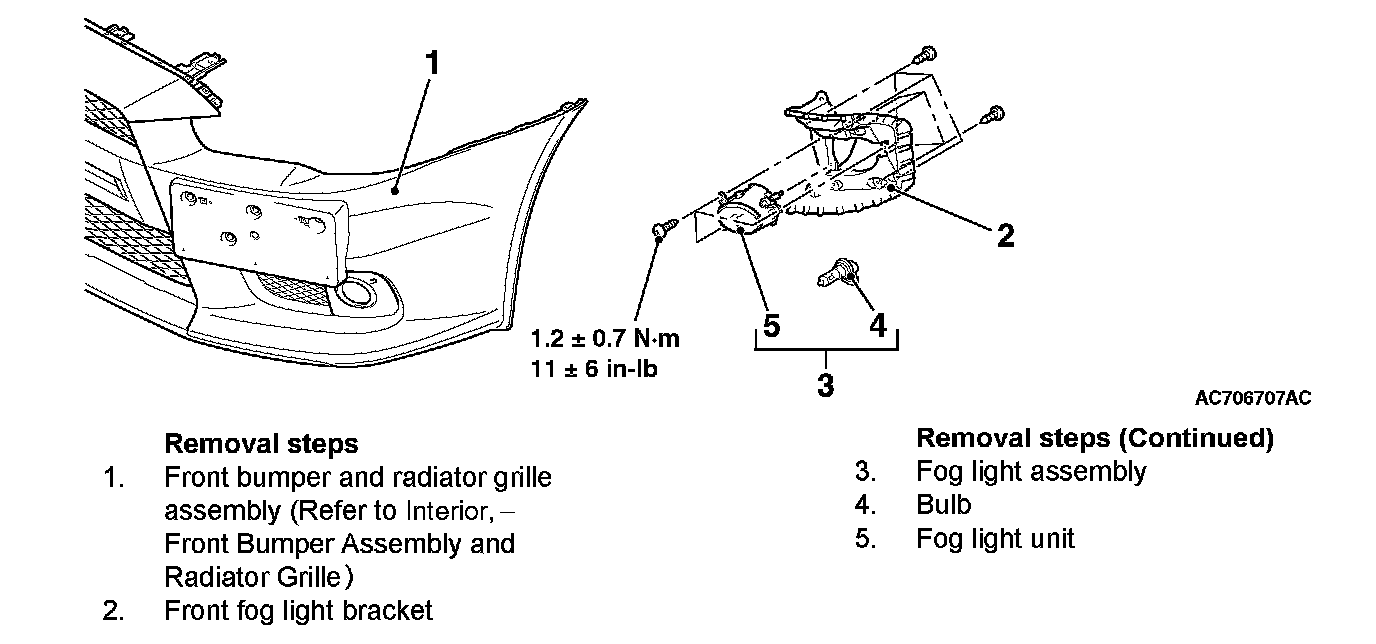

Removal Steps 1-5:
