Fuel Level Sensor Float Height
FUEL LEVEL SENSOR FLOAT HEIGHT

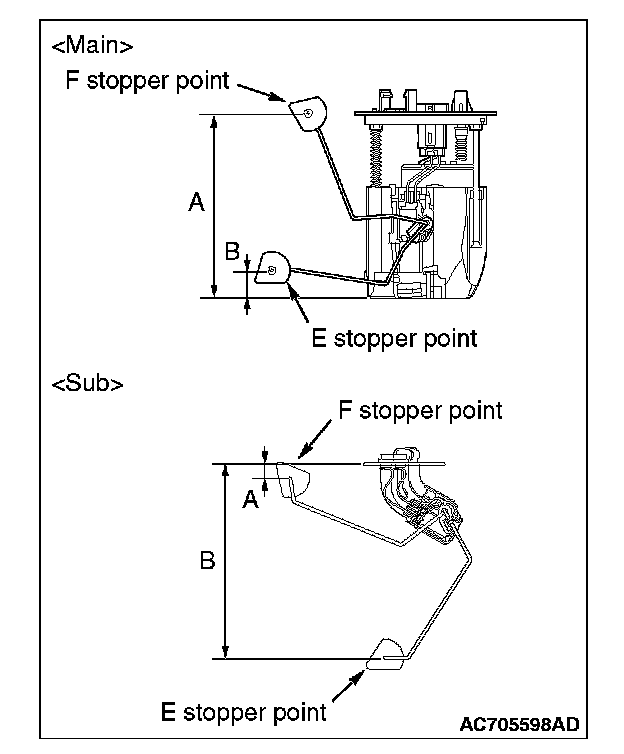

When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.

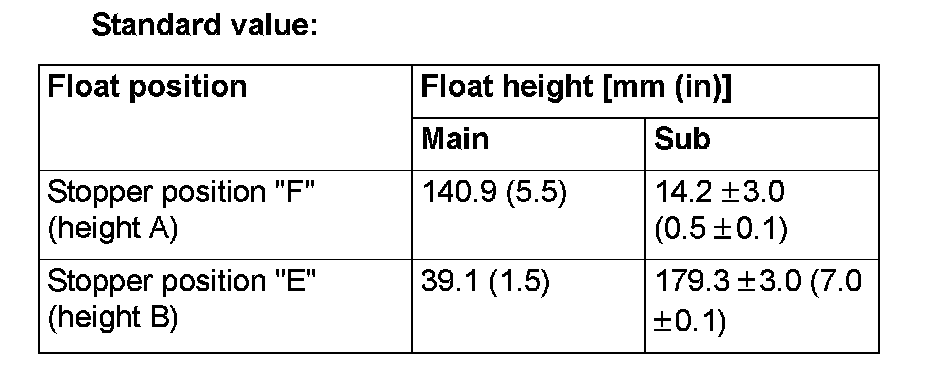

Standard Value:
When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.
