FUEL LEVEL SENSOR CHECK

1. Remove the rear seat.
2. Remove the floor inspection lid, and then remove the fuel pump module.

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR

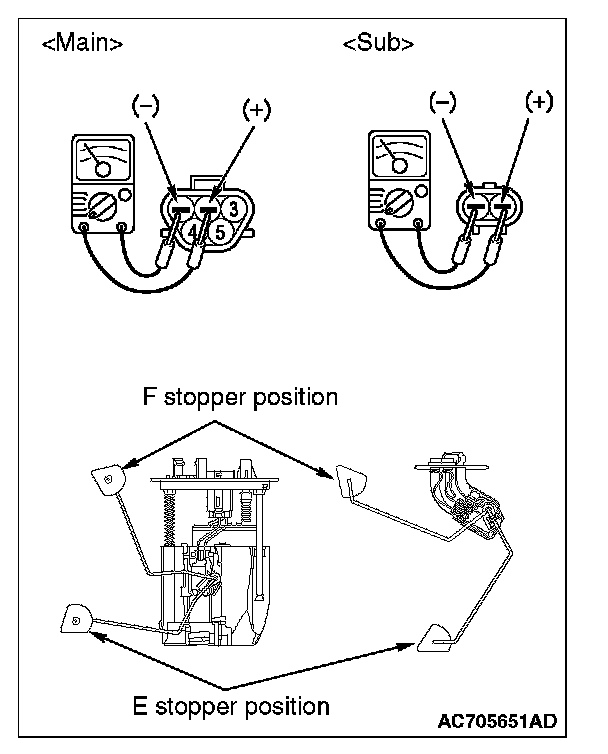

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.

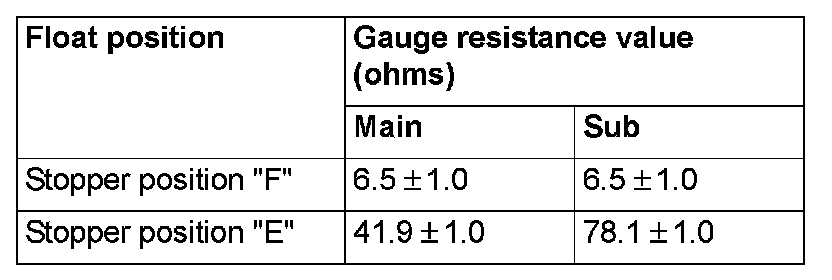

Standard value:






When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
