Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

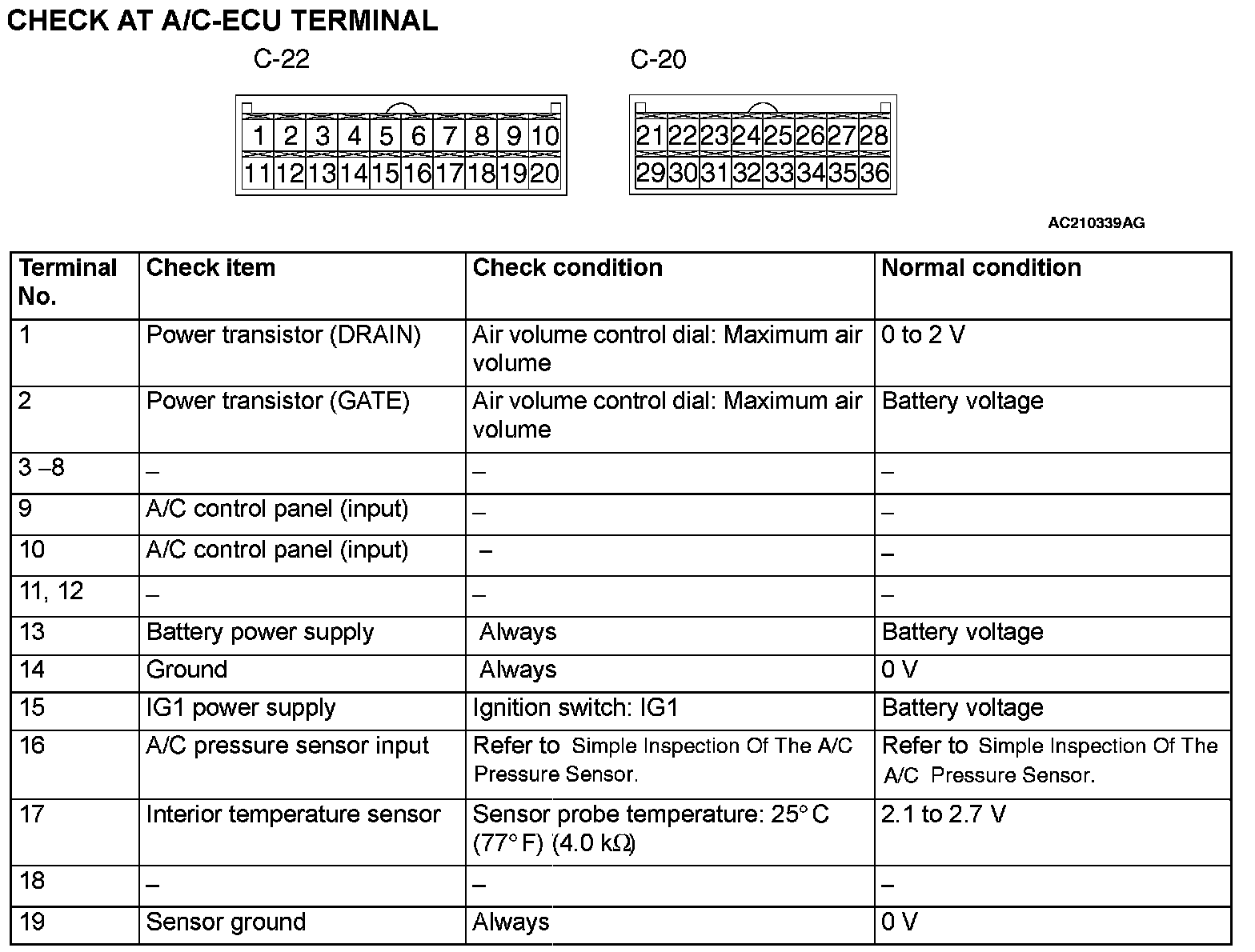

Check At A/C-ECU Terminal (Part 1):

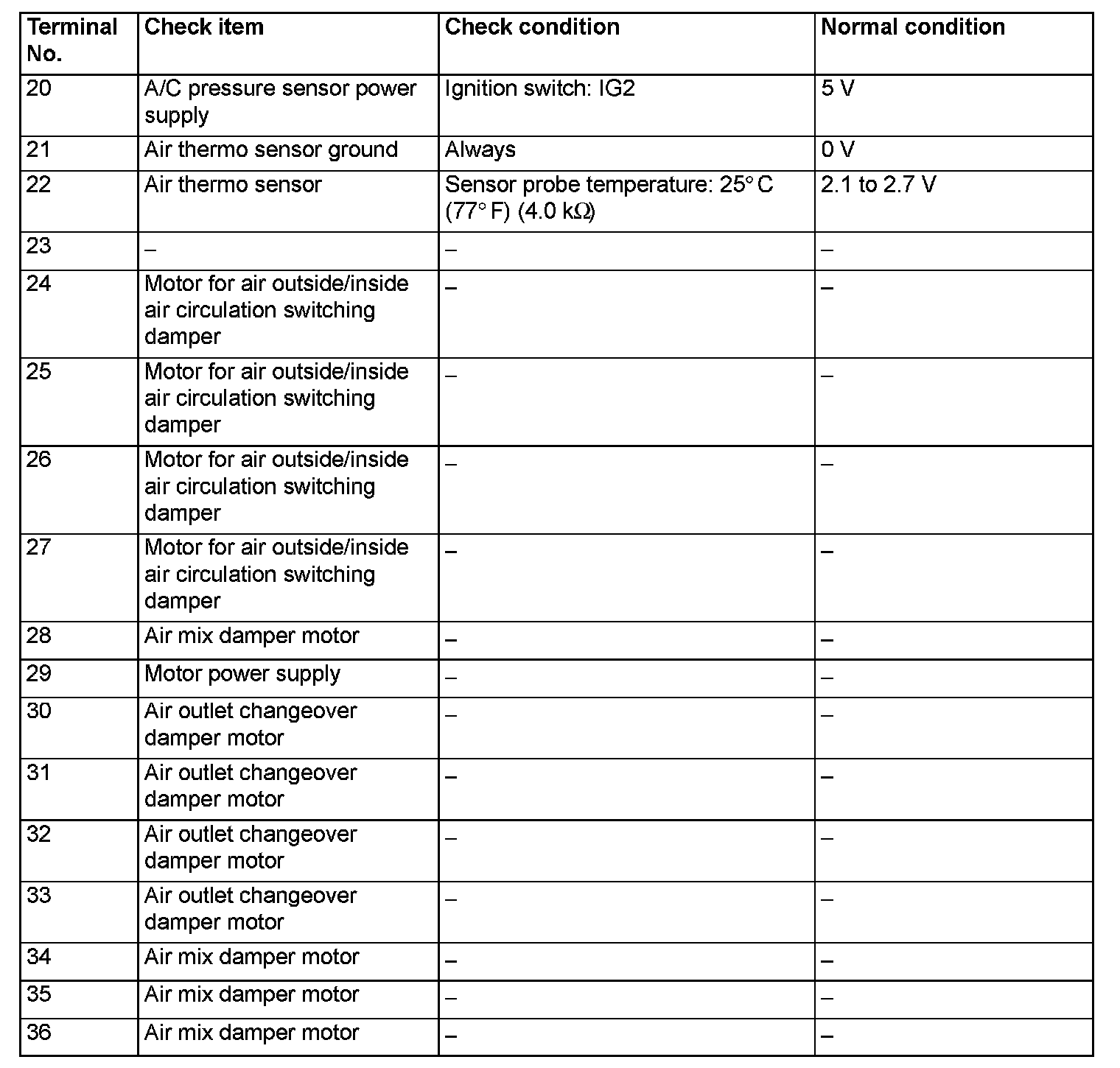

Check At A/C-ECU Terminal (Part 2):
