Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Service and Repair
>>
Overhaul
Overhaul

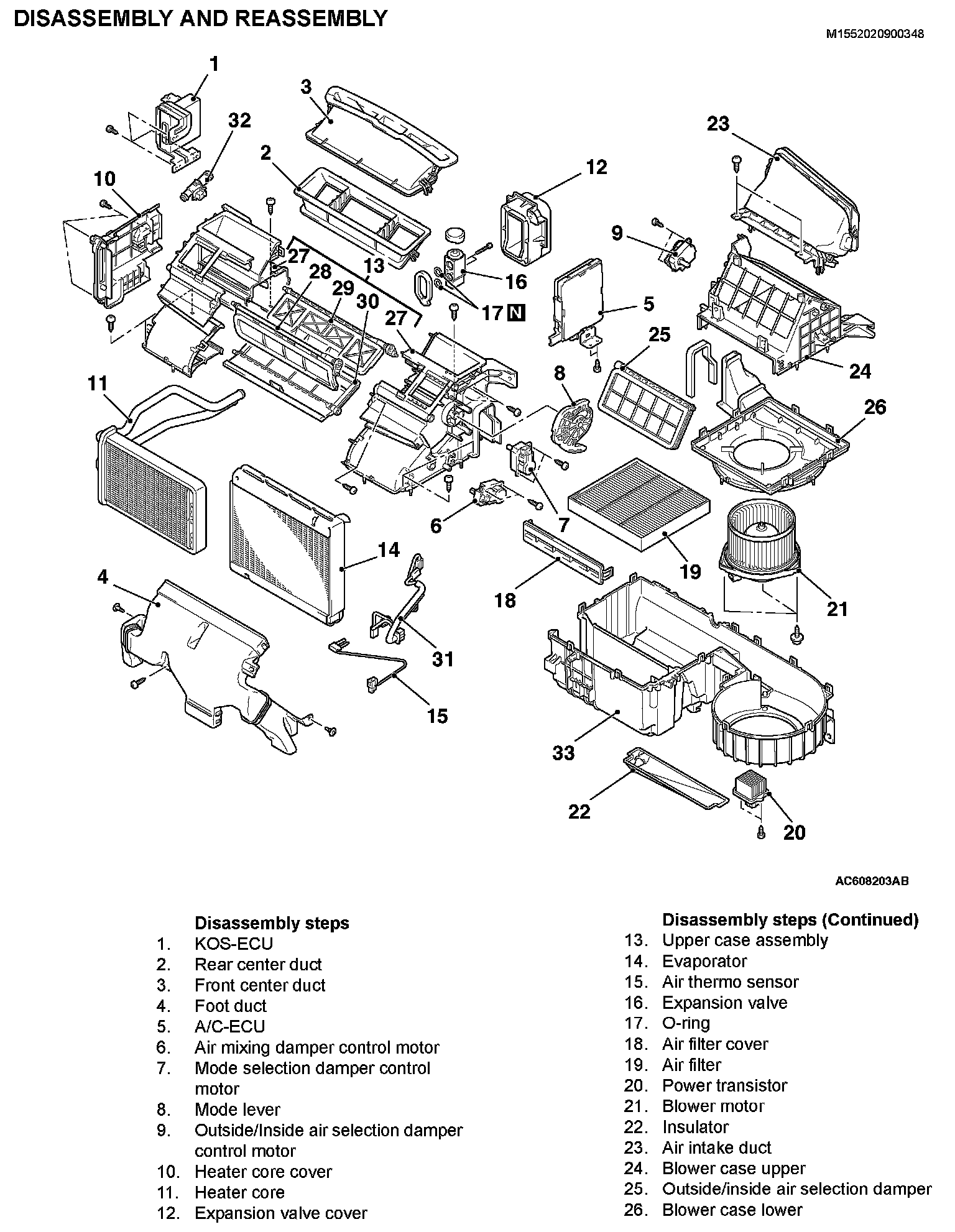

DISASSEMBLY AND REASSEMBLY
Disassembly Steps 1-26 (Part 1):

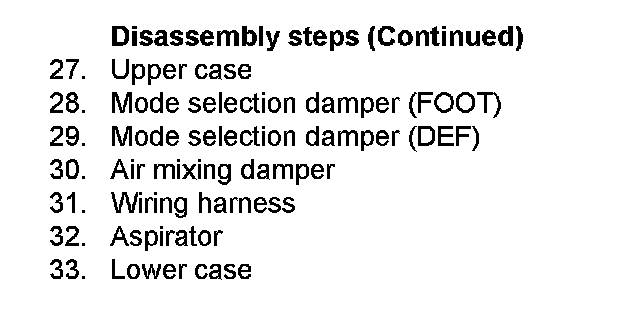

Disassembly Steps 1-26 (Part 2):
