Cabin Air Filter / Purifier: Service and Repair

REPLACE THE CLEAN AIR FILTER




1. Remove the glove box.

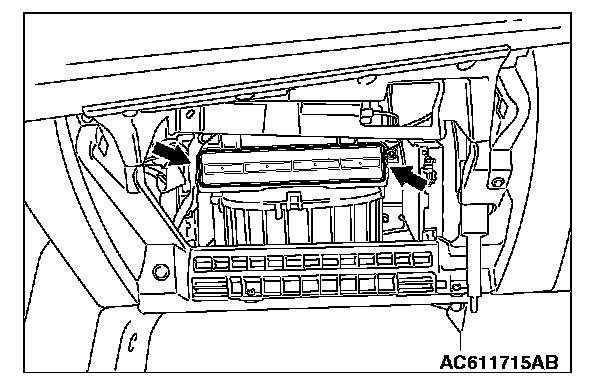

2. Loosen the two lugs as shown to replace the clean air filter.
3. Install the glove box.
