Timing Component Alignment Marks: Locations

Timing Alignment Marks

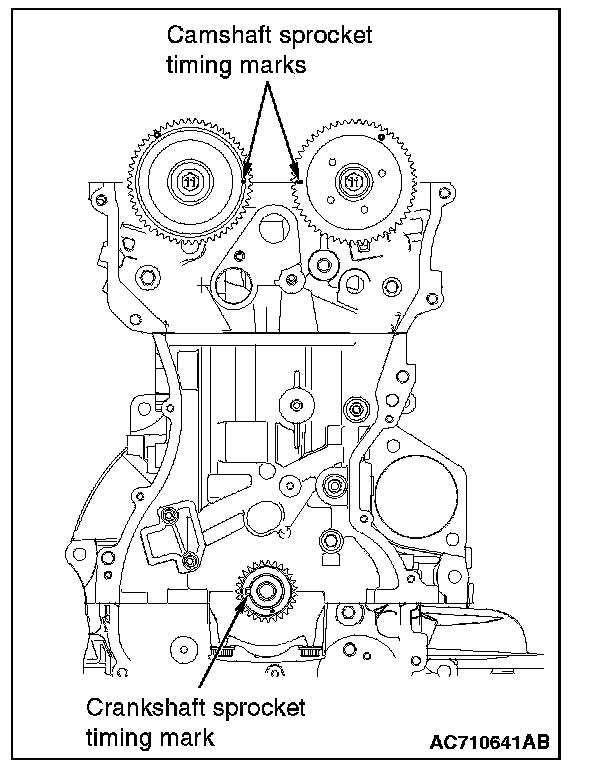

1. Set the timing marks of the camshaft sprockets and the crankshaft sprocket as shown in the figure.

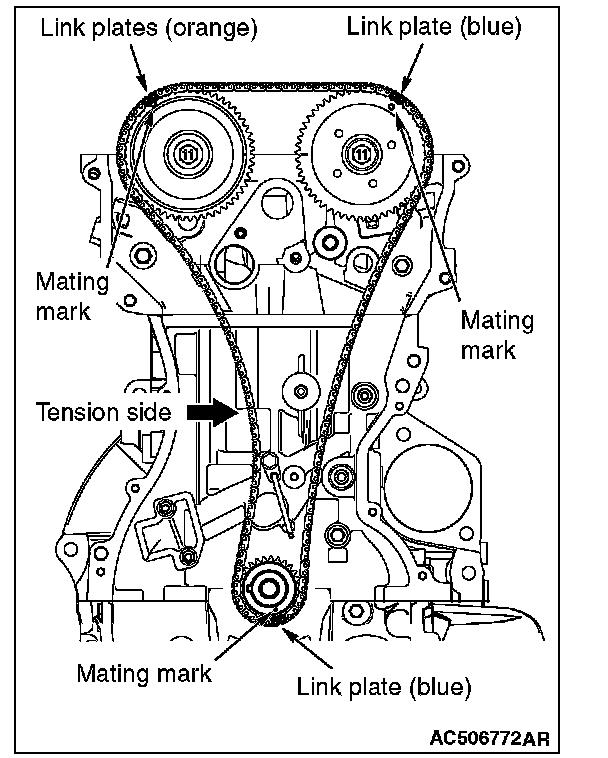

2. Align each sprocket timing chain mating marks with the link plate (orange or blue) of timing chain to avoid slack of the timing chain tension side, and install the timing chain to the sprockets.
