Timing Chain

TIMING CHAIN

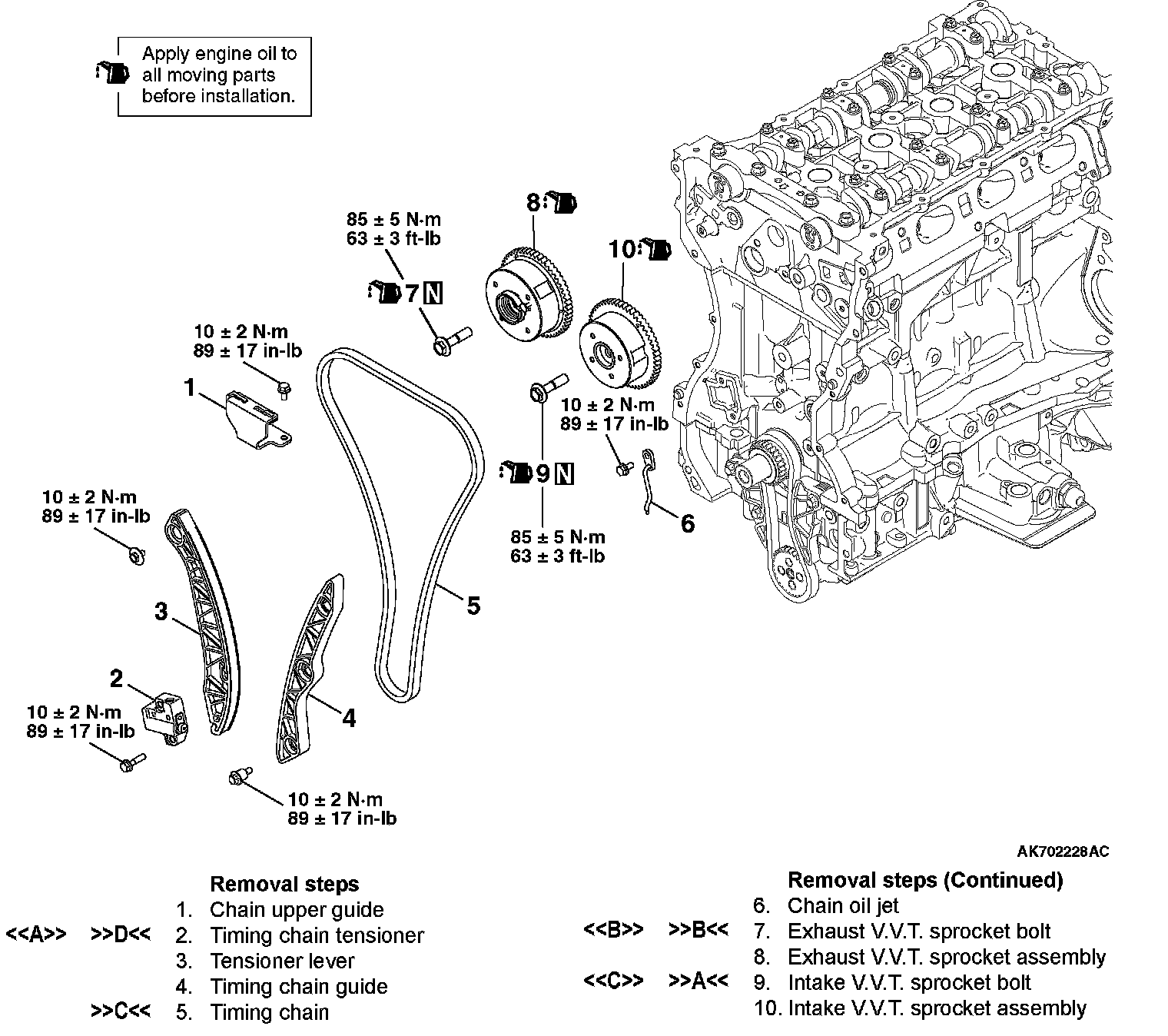

REMOVAL AND INSTALLATION





REMOVAL SERVICE POINTS

[A] TIMING CHAIN TENSIONER REMOVAL

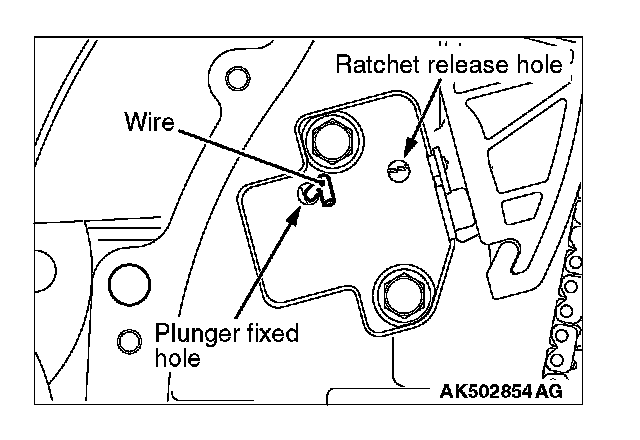

1. Insert a flatblade screwdriver into the release hole of the timing chain tensioner to release the latch.
2. Push the tensioner lever by hand and push in the plunger of the timing chain tensioner until it hits the bottom. Then, insert a hard wire (piano wire or the like) of 01.5 or hexagonal bar wrench (1.5 mm [0.05 inch]) into the fixing hole of the plunger.
3. Remove the timing chain tensioner.

[B] EXHAUST V.V.T. SPROCKET BOLT REMOVAL

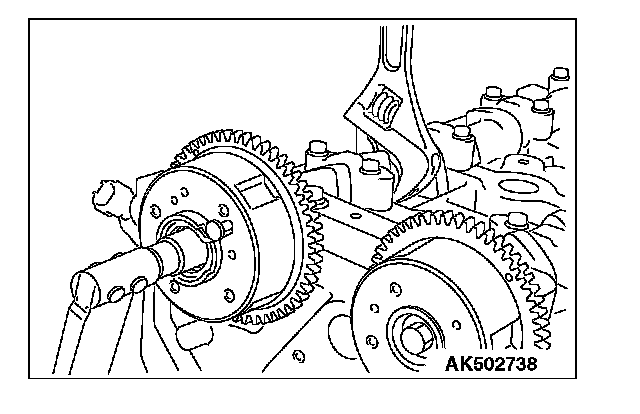

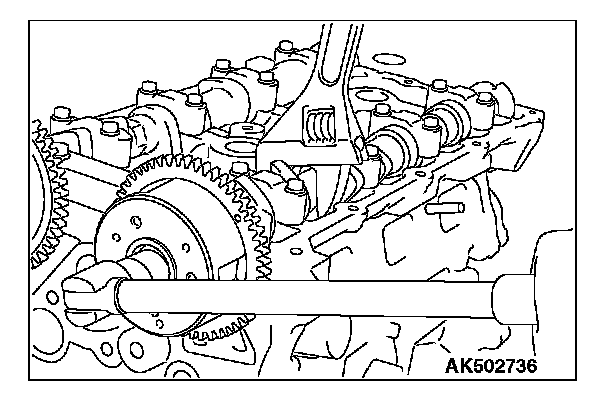

Hold the hexagonal portion of the exhaust camshaft with a wrench and loosen the exhaust V.V.T. sprocket bolt.

[C] INTAKE V.V.T. SPROCKET BOLT REMOVAL

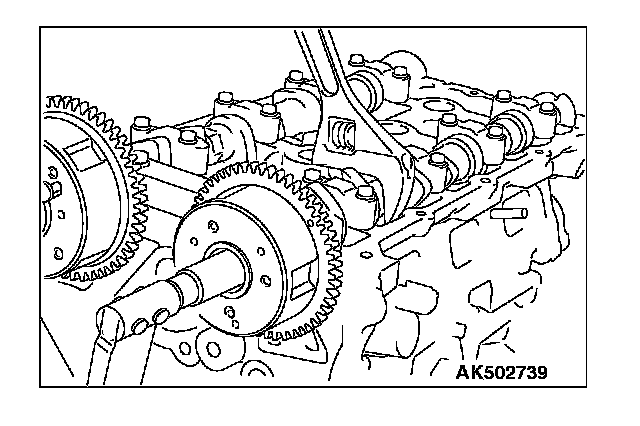

Hold the hexagonal portion of the intake camshaft with a wrench and loosen the intake V.V.T. sprocket bolt.

INSTALLATION SERVICE POINTS

]A[ INTAKE V.V.T. SPROCKET BOLT INSTALLATION





1. Assemble the intake V.V.T. sprocket assembly in the following procedure.
^ Make sure that the knock pin of the inlet camshaft assembly is positioned facing straight upward.

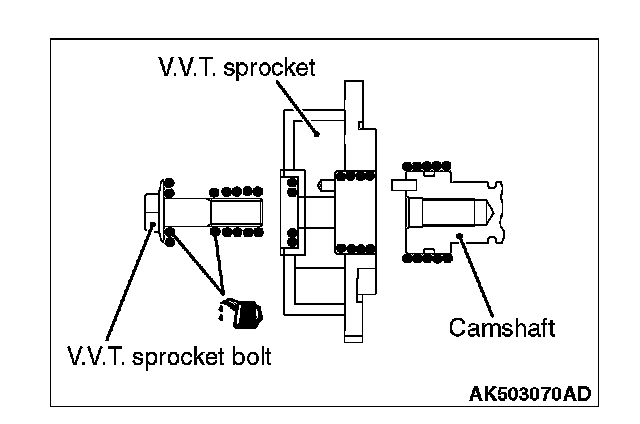

^ Apply an appropriate and minimum amount of engine oil to the circumference of the tip of the intake V.V.T. sprocket assembly and the entire circumference of the area into which the intake V.V.T. sprocket assembly is inserted.
^ Slowly insert the intake V.V.T. sprocket assembly into the normal position of the inlet camshaft assembly with its knock pin hole facing straight upward.
2. Install the V.V.T. sprocket.
3. Make sure that the V.V.T. sprocket is securely inserted into the bottom and that the V.V.T. sprocket does not rotate with the hexagonal portion of the camshaft secured with a wrench.

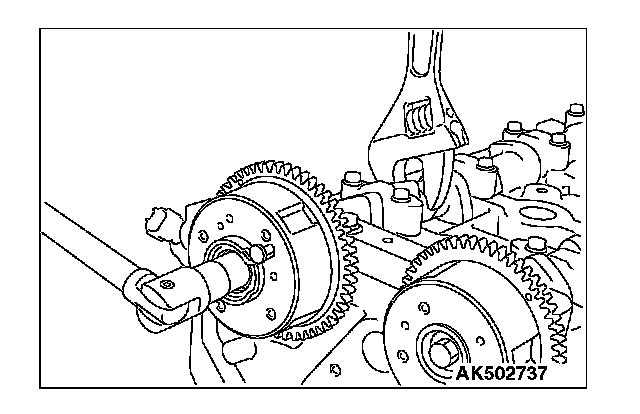

4. Hold the hexagonal portion of the camshaft with a wrench and tighten the intake V.V.T. sprocket bolt to the specified torque.

Specified torque: 85 ± 5 Nm (63 ± ft-lb)

]B[ EXHAUST V.V.T. SPROCKET BOLT INSTALLATION
1. Assemble the exhaust V.V.T. sprocket assembly in the following procedure.
^ Make sure that the knock pin of the exhaust camshaft assembly is positioned facing straight upward.
^ Apply an appropriate and minimum amount of engine oil to the circumference of the tip of the exhaust V.V.T. sprocket assembly and the entire circumference of the area into which the exhaust V.V.T. sprocket assembly is inserted.
^ Slowly insert the exhaust V.V.T. sprocket assembly into the normal position of the exhaust camshaft assembly with its knock pin hole facing straight upward.
2. Install the V.V.T. sprocket.
3. Make sure that the V.V.T. sprocket is securely inserted into the bottom and that the V.V.T. sprocket does not rotate with the hexagonal portion of the camshaft secured with a wrench.





4. Hold the hexagonal portion of the camshaft with a wrench and tighten the camshaft sprocket bolt to the specified torque.

Specified torque: 85 ± 5 Nm (63 ± ft-lb)

]C[ TIMING CHAIN INSTALLATION





1. Align the timing mark of the V.V.T. sprocket.

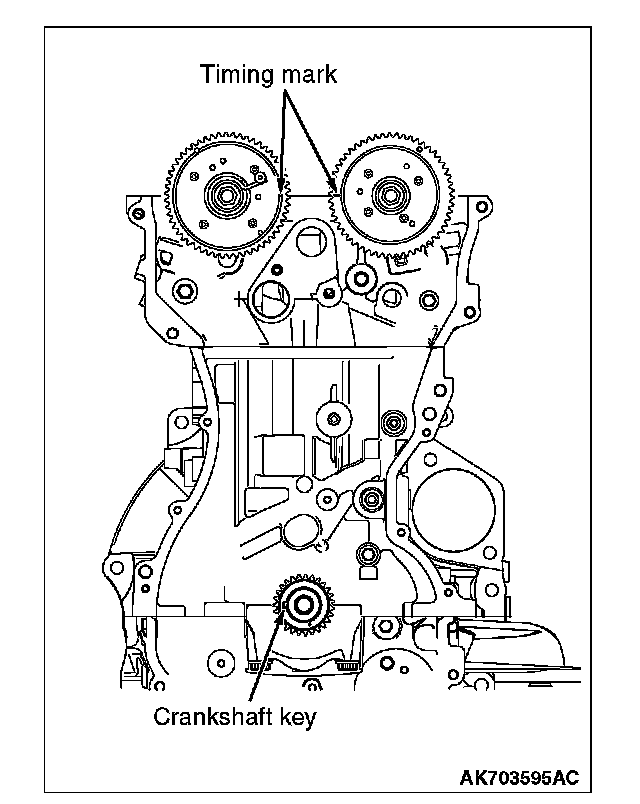

2. Align the crankshaft sprocket key with illustrated positions.

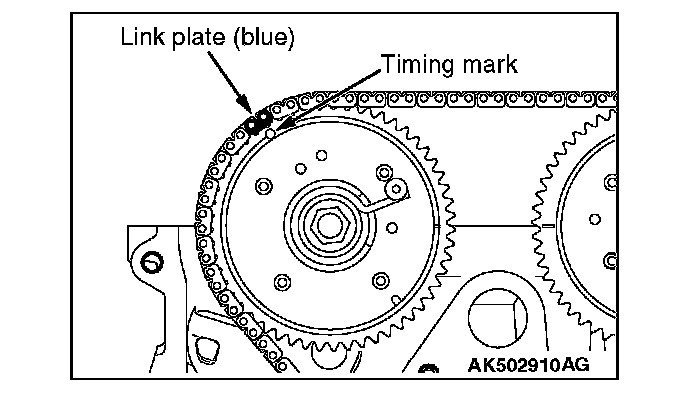

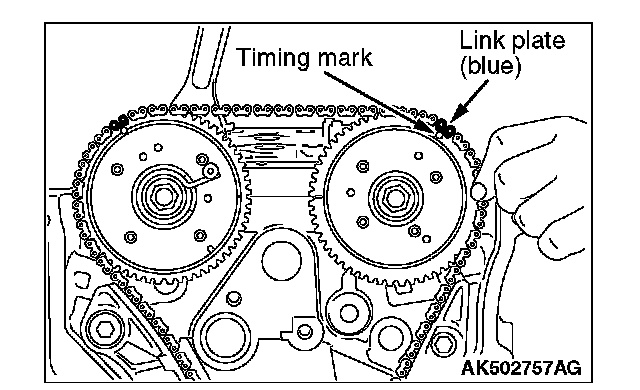

3. Align the link plate (blue) with the timing mark of the exhaust V.V.T. sprocket and loop the timing chain.





4. Align the link plate (blue) with the timing mark of the intake V.V.T. sprocket to loop the timing chain.
Rotate the intake V.V.T. sprocket by one or two teeth to align with the timing mark.





5. Align the timing mark of the crankshaft sprocket with the link plate (blue) to loop the timing chain. Because of timing chain slacks, hold it to prevent the timing mark from coming off the link plate (blue).





6. Make sure that the timing mark of each sprocket is aligned with the link plate (blue) of the timing chain at all of three locations.
7. Install the timing chain guide and tensioner lever.

]D[ TIMING CHAIN TENSIONER INSTALLATION





1. Install the timing chain tensioner on the cylinder block and tighten it to the specified torque.

Specified torque: 10 ± 2 Nm (89 ± 17 in-lb)

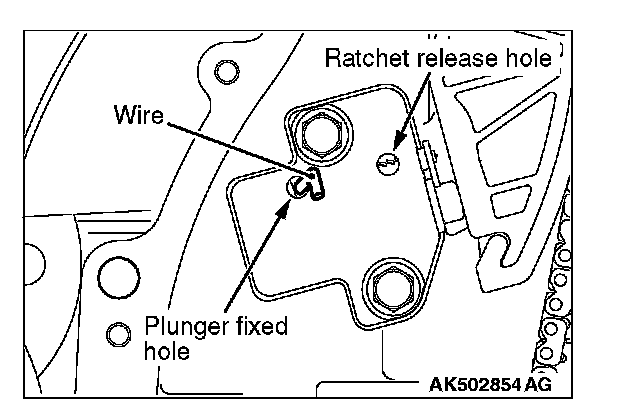

2. Remove the hard wire (piano wire or the like) of 01.5 or hexagonal bar wrench (1.5 mm [0.05 inch]) from the timing chain tensioner. This enables the plunger of the timing chain tensioner to push the tensioner lever to keep the timing chain tight.

INSPECTION

VALVE CLEARANCE ADJUSTMENT
Measure valve clearance as described in the following procedure.
Check and adjust the valve clearance with the timing chain installed.

CAUTION
Always rotate the crankshaft clockwise.

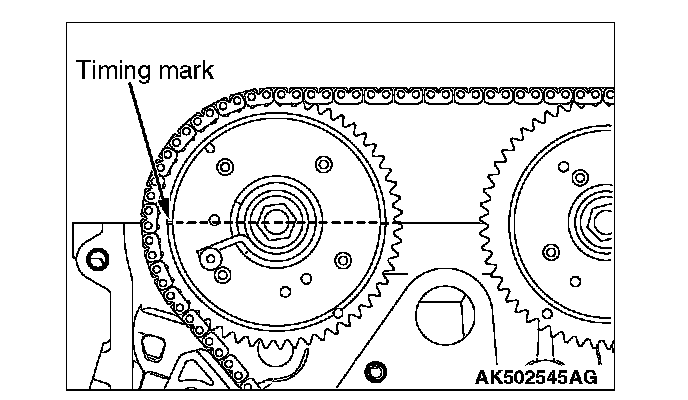

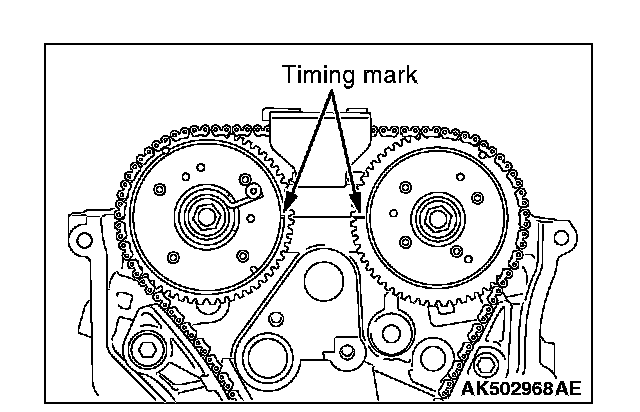

1. Rotate the crankshaft clockwise to align the timing mark of the V.V.T. sprocket with the top surface of the cylinder head as illustrated. (Set the No. 1 piston at top dead center on the compression stroke.)

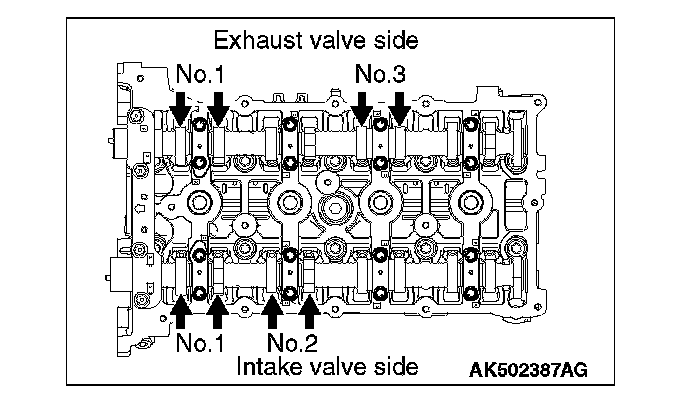

2. Valve clearance can be measured at the illustrated location in this condition.

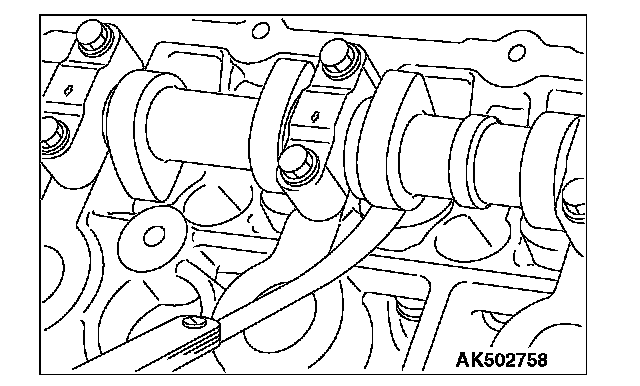

3. Use a thickness gauge to measure clearance between the camshaft and valve tappet.

Standard value (when engine is cold)
Intake side: 0.20 ± 0.03 mm (0.008 ± 0.001 inch)
Exhaust side: 0.30 ± 0.03 mm (0.012 ± 0.001 inch)

4. If measured values are out of the standard value, record measured values.

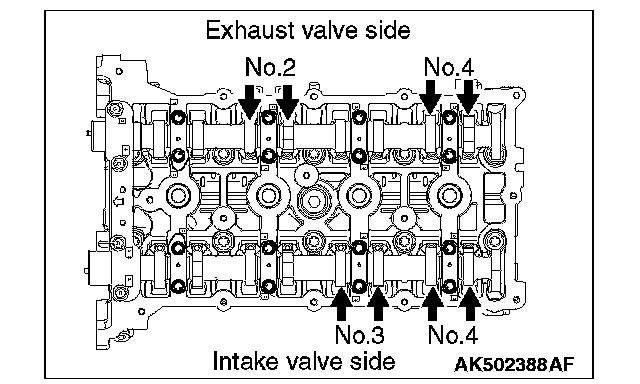

5. Rotate the crankshaft by one turn clockwise to set the No. 4 piston at top dead center on the compression stroke.

NOTE:
The timing mark of the V.V.T exhaust sprocket must be at the illustrated position.





6. Valve clearance can be measured at the illustrated location in this condition.
7. If measured values are out of the standard value, record measured values.
8. If the measured value is out of the standard value, replace the valve tappet.

NOTE:
There are 47 kinds of valve tappets at intervals of 0.015 mm (0.0006 inch) in the range between 3.000 (0.1181 inch) and 3.690 mm (0.1453 inch).





9. Use the following procedure select a valve tappet.

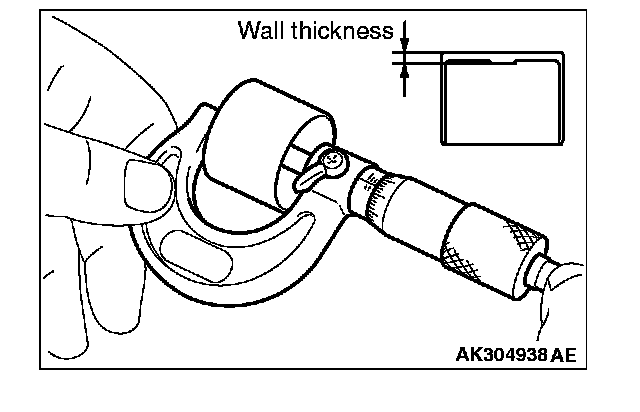

1) Measure thickness of a removed valve tappet.
2) Calculate thickness of a valve tappet so that valve clearance meets the standard value.

A: Thickness of valve tappet to be selected
B: Thickness of removed valve tappet
C: Measured valve clearance
Formula
Intake side: A = B + (C -0.20 mm [0.008 inch])
Exhaust side: A = B + (C -0.30 mm [0.012 inch])
