Throttle Body

THROTTLE BODY

REMOVAL AND INSTALLATION

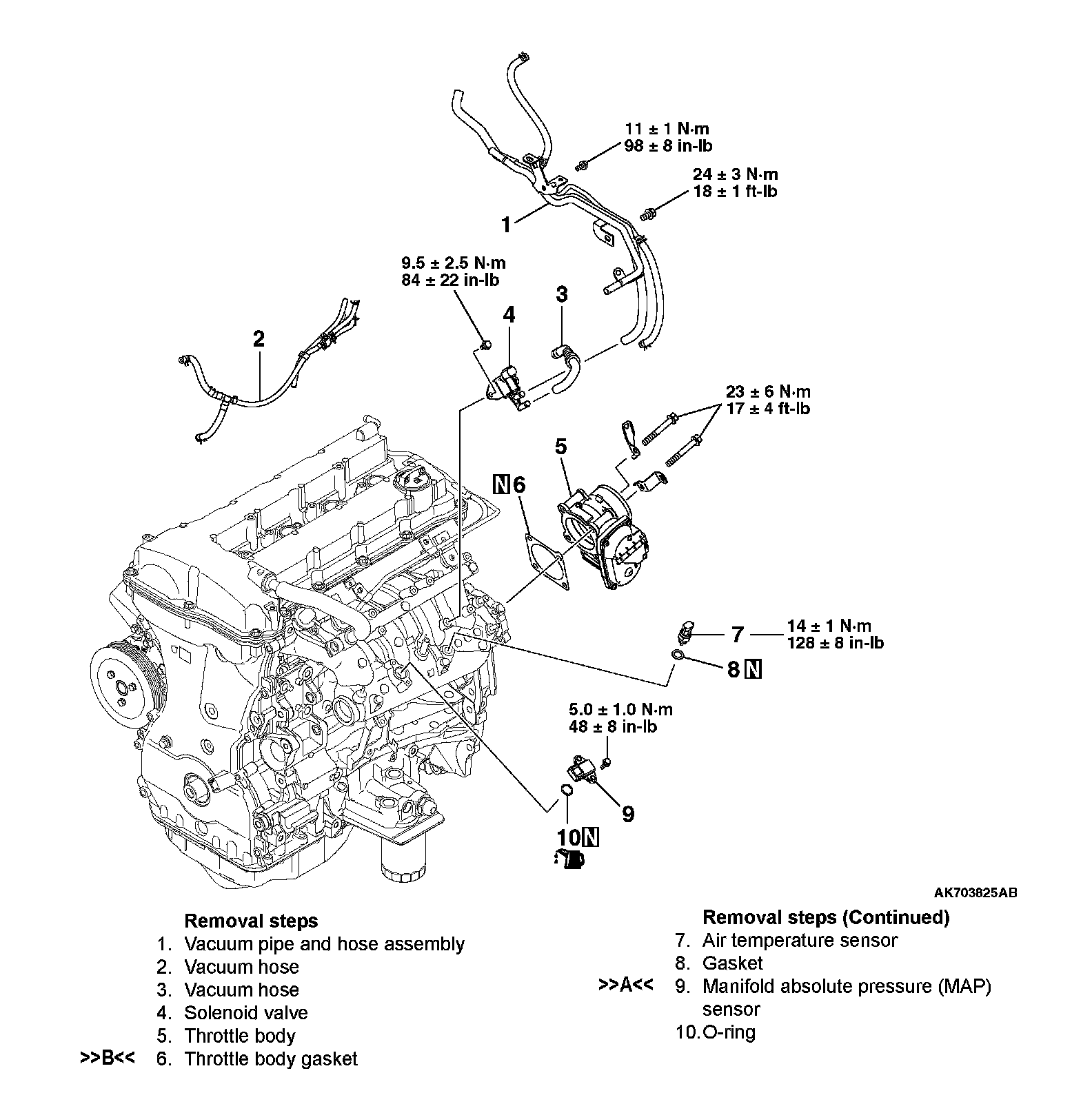

Removal Steps 1-10:

INSTALLATION SERVICE POINTS

]A[ MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSTALLATION

CAUTION
^ Install the manifold absolute pressure (MAP) sensor, taking care not to give a shock to it.
^ Do not use a manifold absolute pressure (MAP) sensor that has been dropped.

]B[ THROTTLE BODY GASKET INSTALLATION

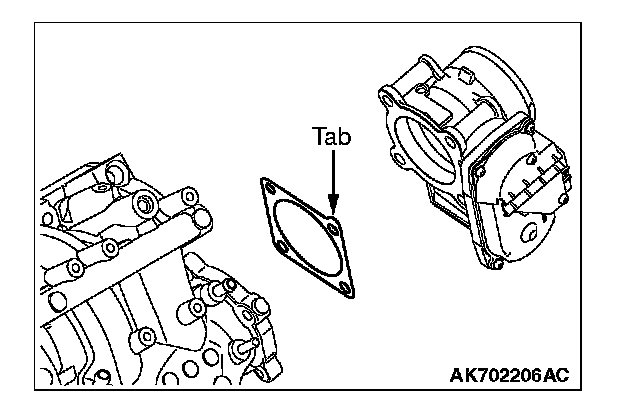

Install a new gasket so that the tab is positioned as shown in the illustration.
