Radiator: Service and Repair
RADIATORREMOVAL AND INSTALLATION

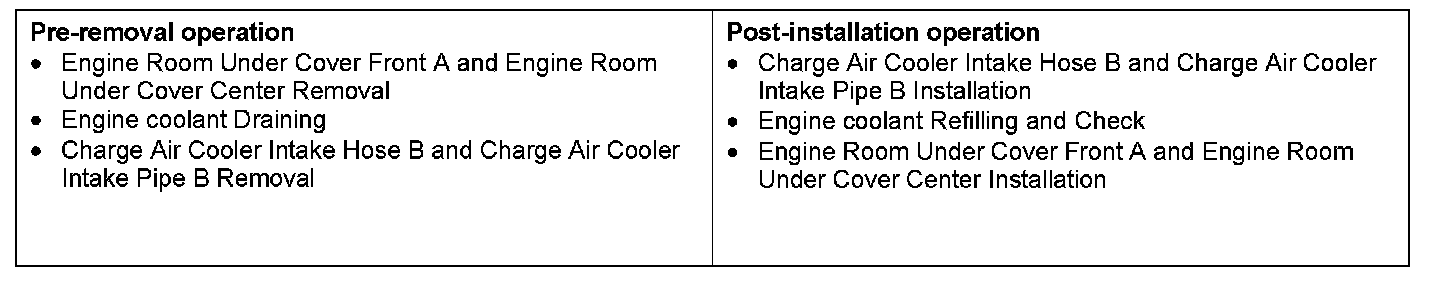

Pre-removal & Post-installation Operation:

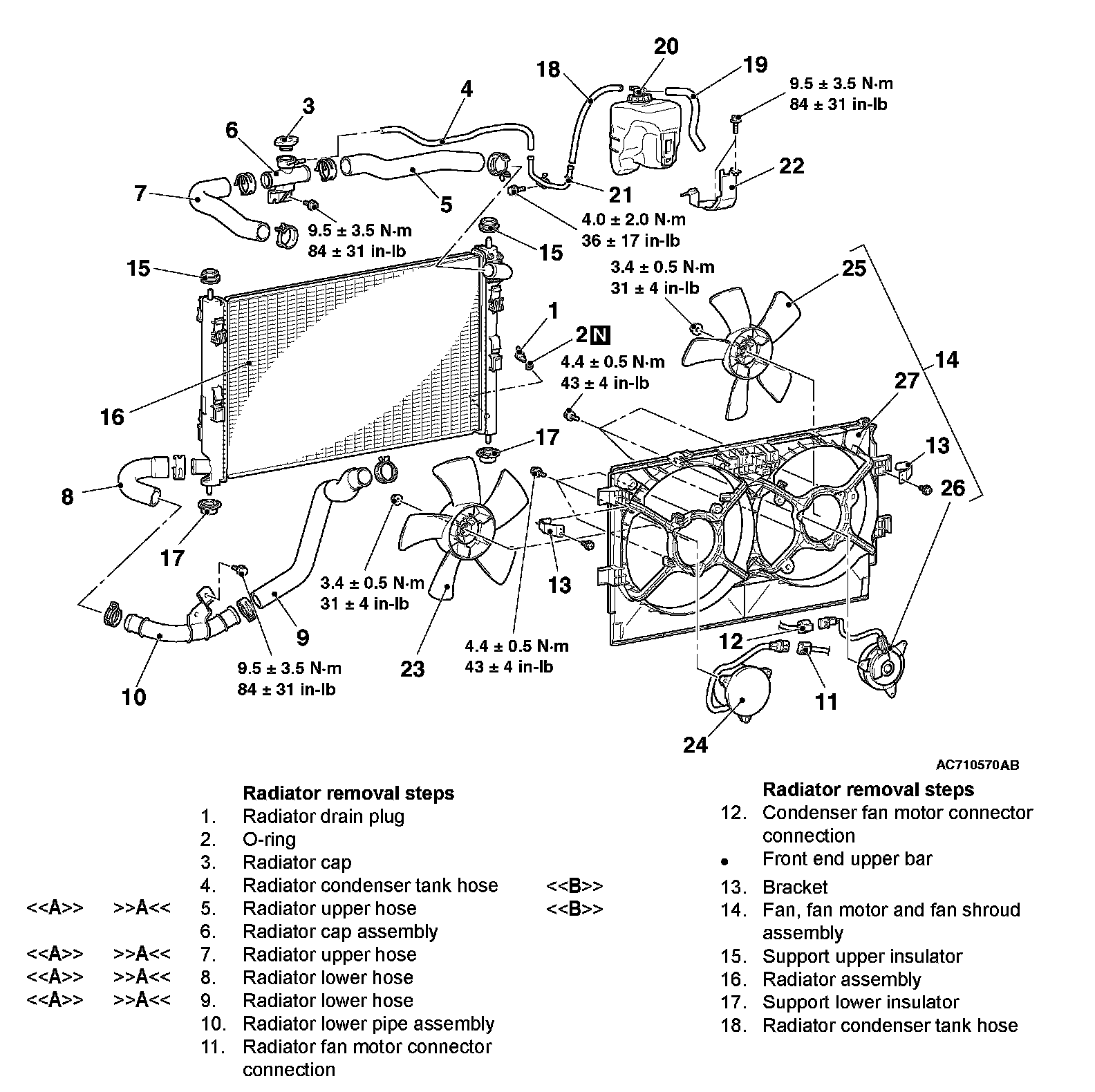

Radiator Removal Steps 1-18:

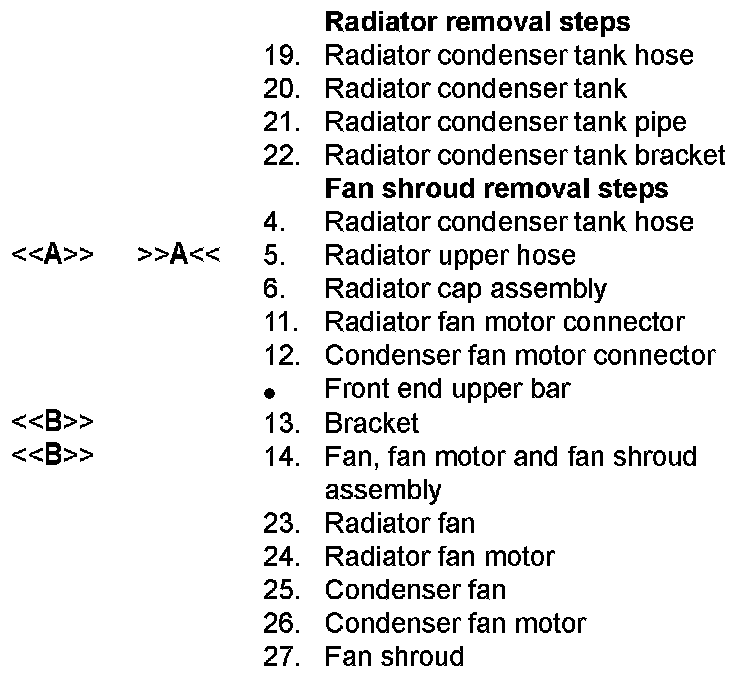

Radiator Removal Steps 19-22, Fan Shroud Removal Steps 4-27:
REMOVAL SERVICE POINTS
[A] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE REMOVAL

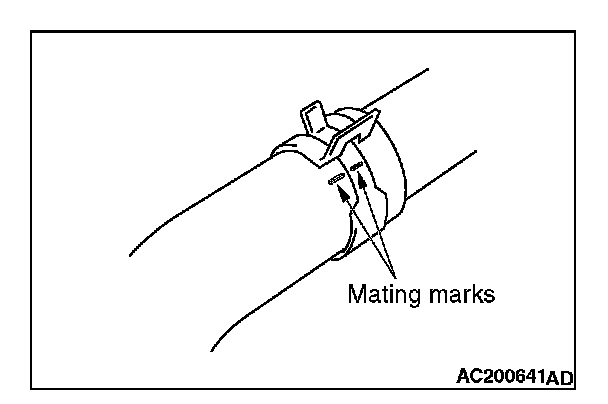

Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.
[B] BRACKET/FAN, FAN MOTOR AND FAN SHROUD ASSEMBLY REMOVAL

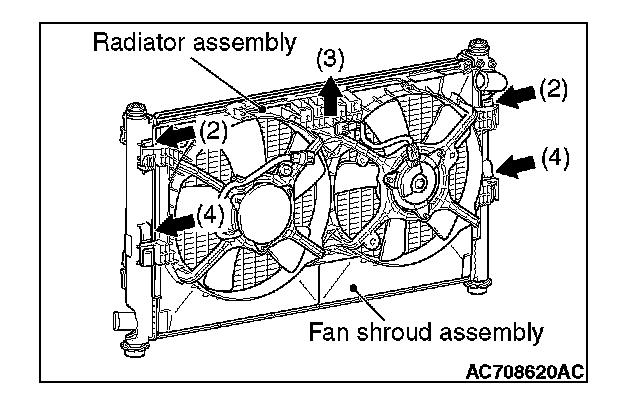

Remove the fan, fan motor, and fan shroud assembly from the radiator assembly with the following steps.
1. Remove the bracket.
2. Release the upper locks of the radiator assembly from the fan, fan motor, and fan shroud assembly.
3. Slightly raise the fan, fan motor, and fan shroud assembly.
4. Release the lower locks of the radiator assembly from the fan, fan motor, and fan shroud assembly. Then, remove the fan, fan motor, and fan shroud assembly from the radiator assembly.
INSTALLATION SERVICE POINT
]A[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE INSTALLATION

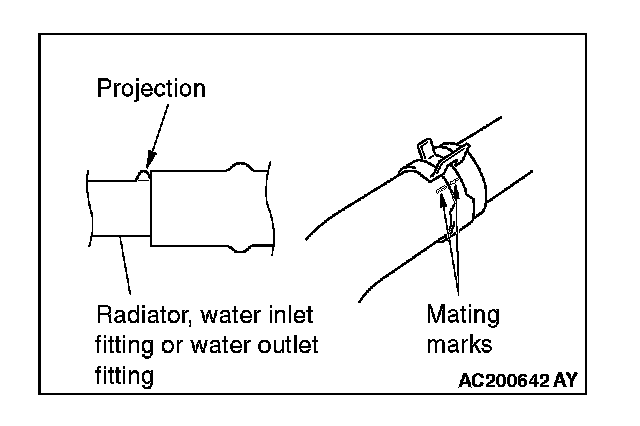

1. Insert each hose as far as the projection of the water inlet fitting, water outlet fitting or radiator.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
