Power and Ground Distribution
>>
Multiple Junction Connector
Multiple Junction Connector

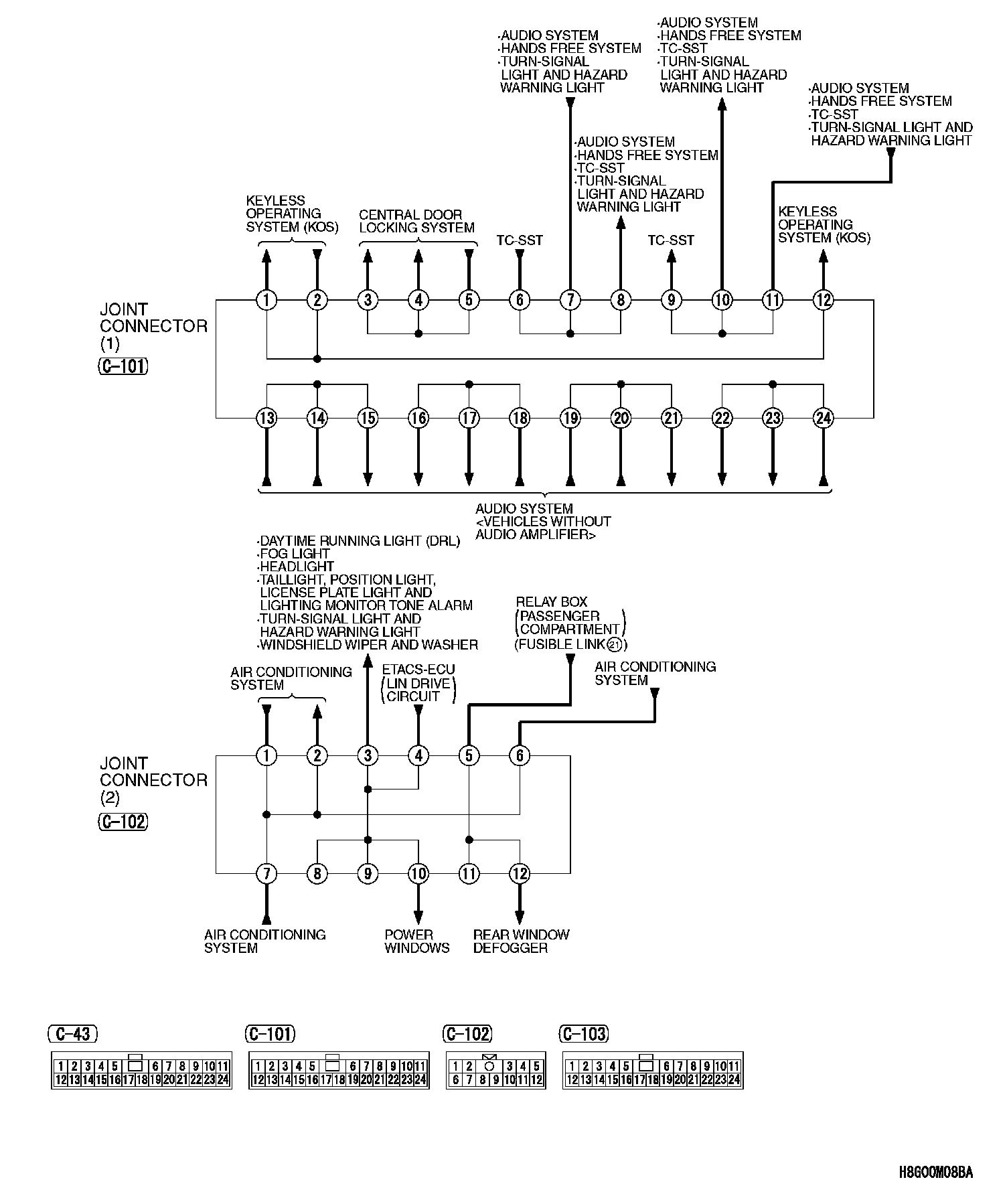

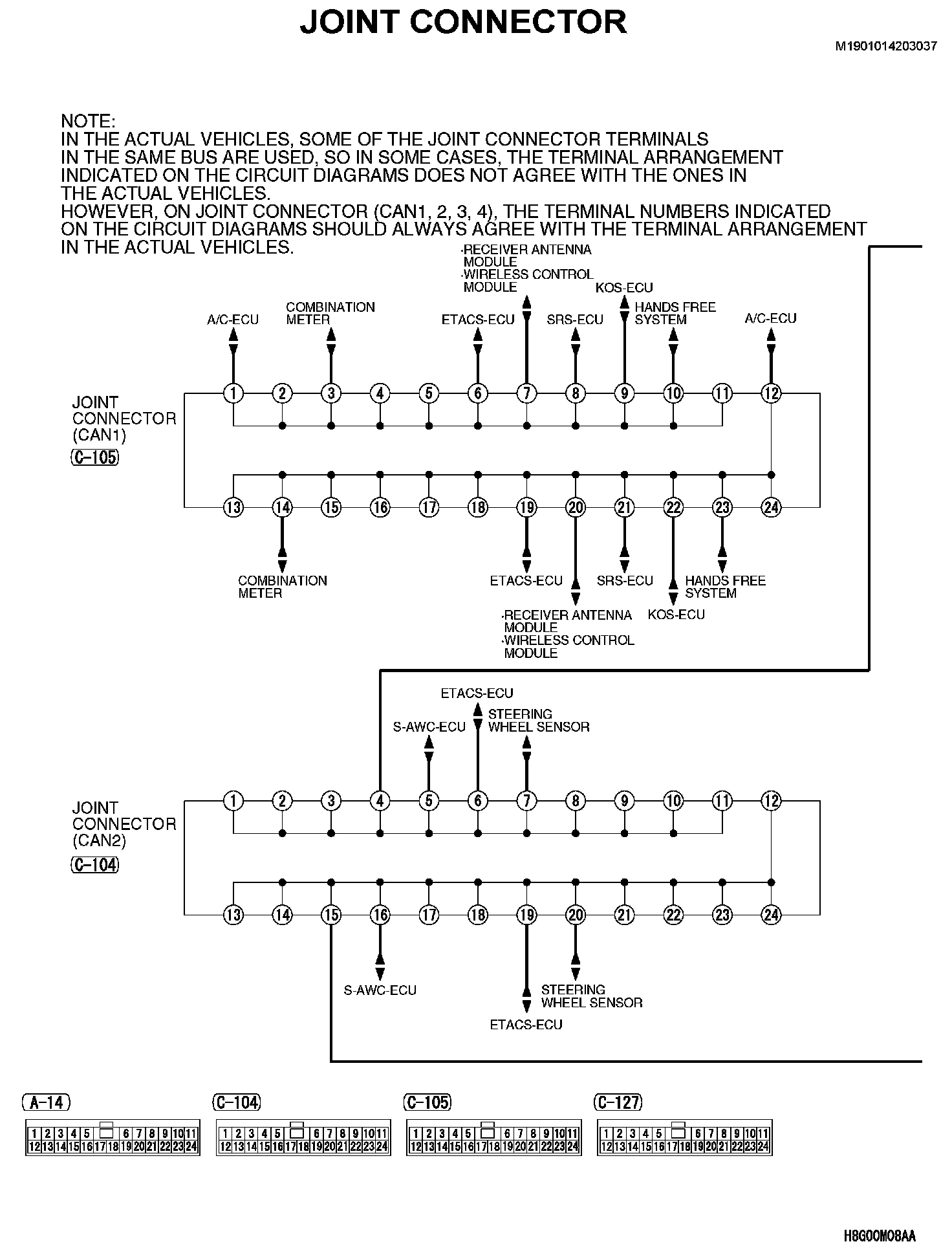

Joint Connector (Part 1):
Joint Connector (Part 2):
Joint Connector (Part 3):
Joint Connector (Part 4):
Joint Connector (Part 5):
Joint Connector (Part 6):
