Circuit Diagram
CIRCUIT DIAGRAMWARNING:
- Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown): Replace the wiring if necessary, after reading and following all precautions and procedures in this manual.
- Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools and a digital multi-meter.
CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.

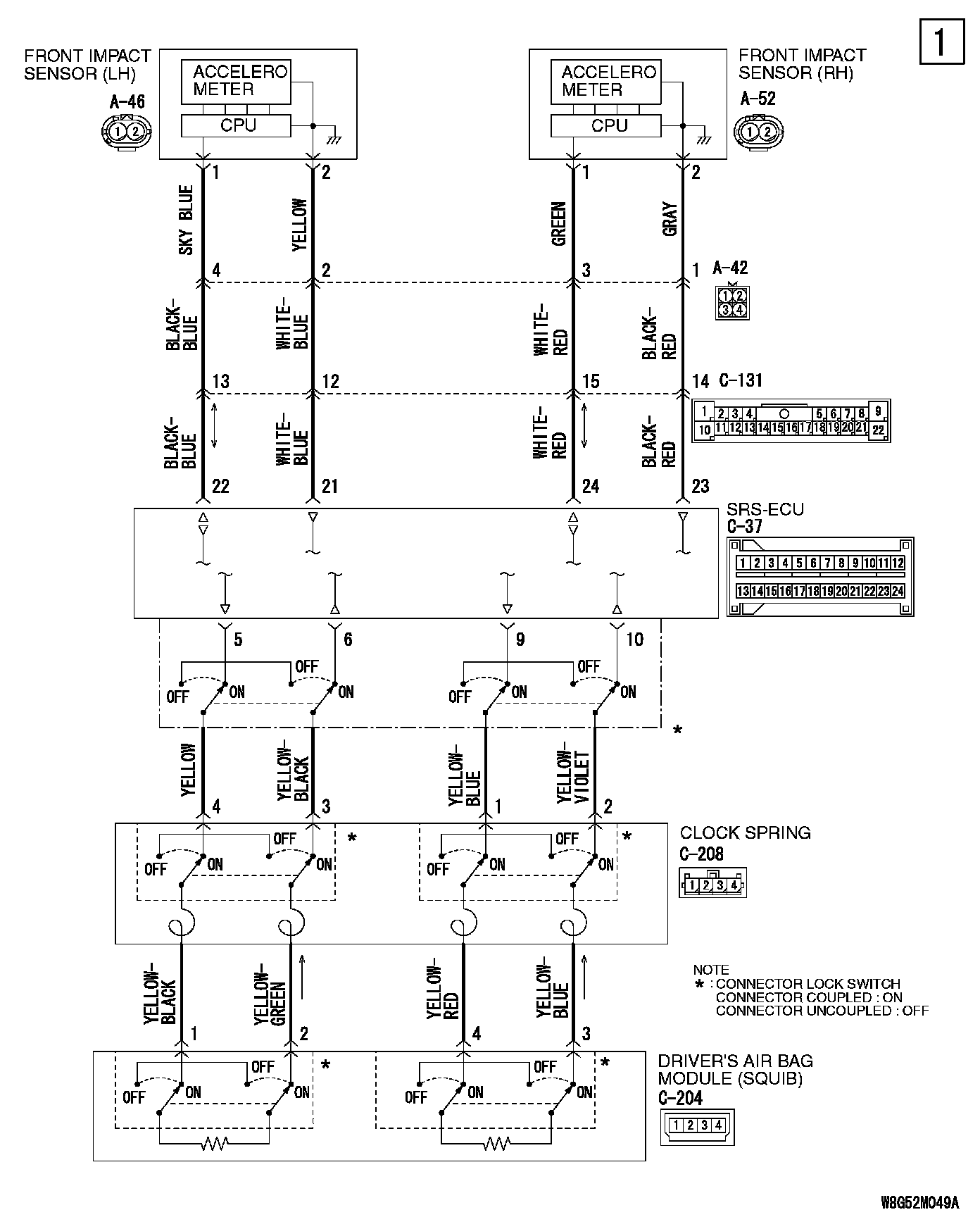

Circuit Diagram (Part 1):

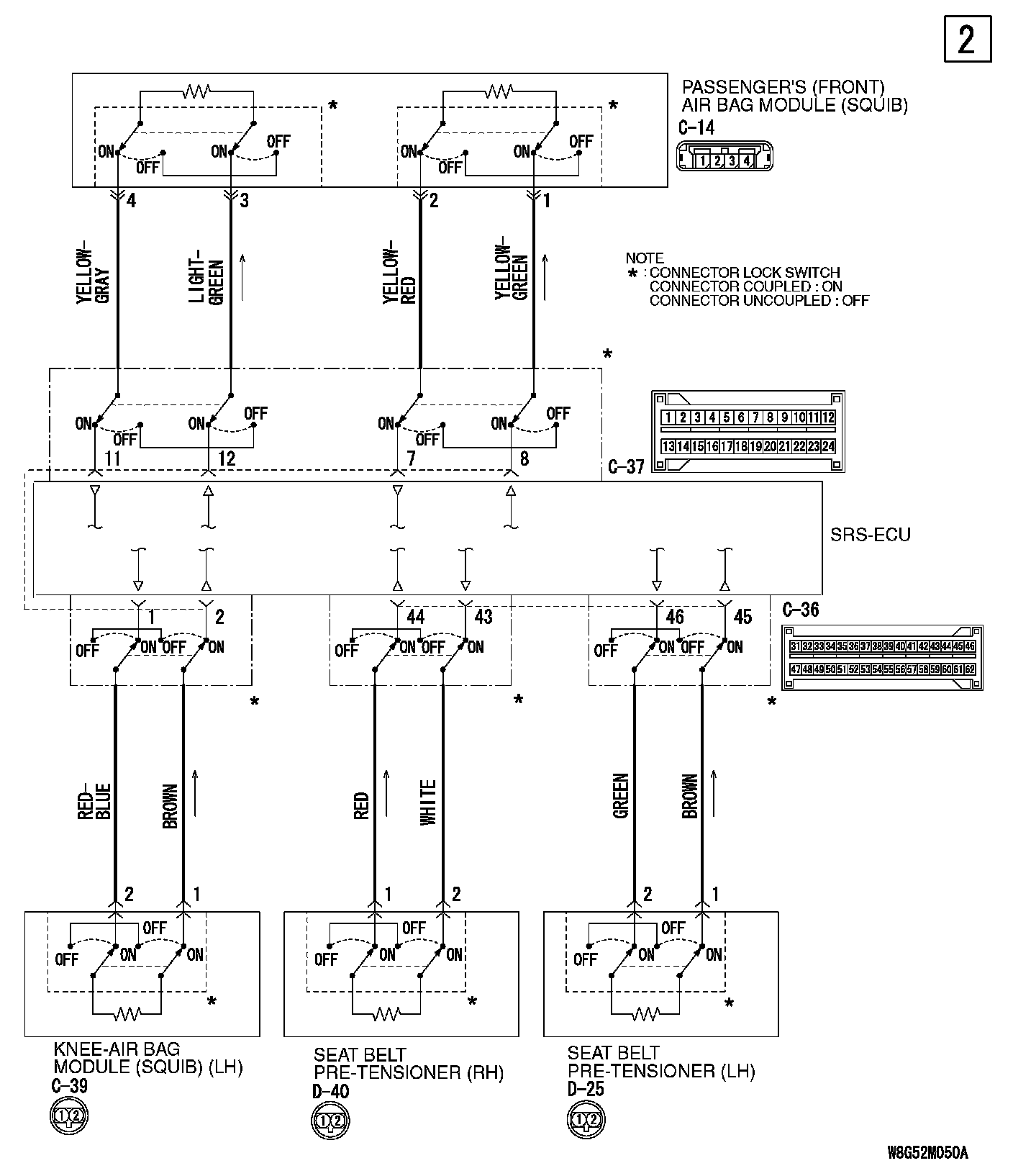

Circuit Diagram (Part 2):

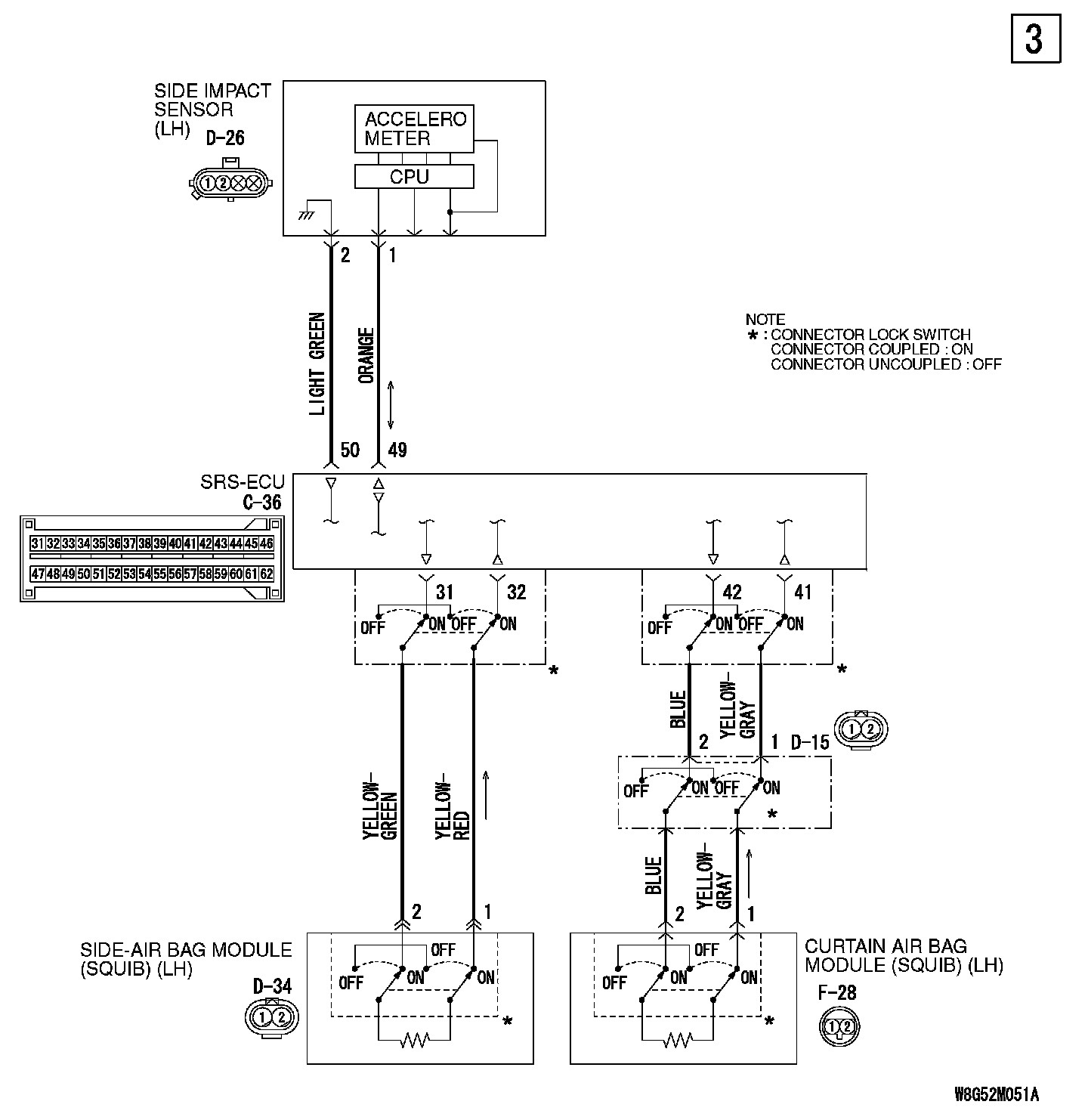

Circuit Diagram (Part 3):

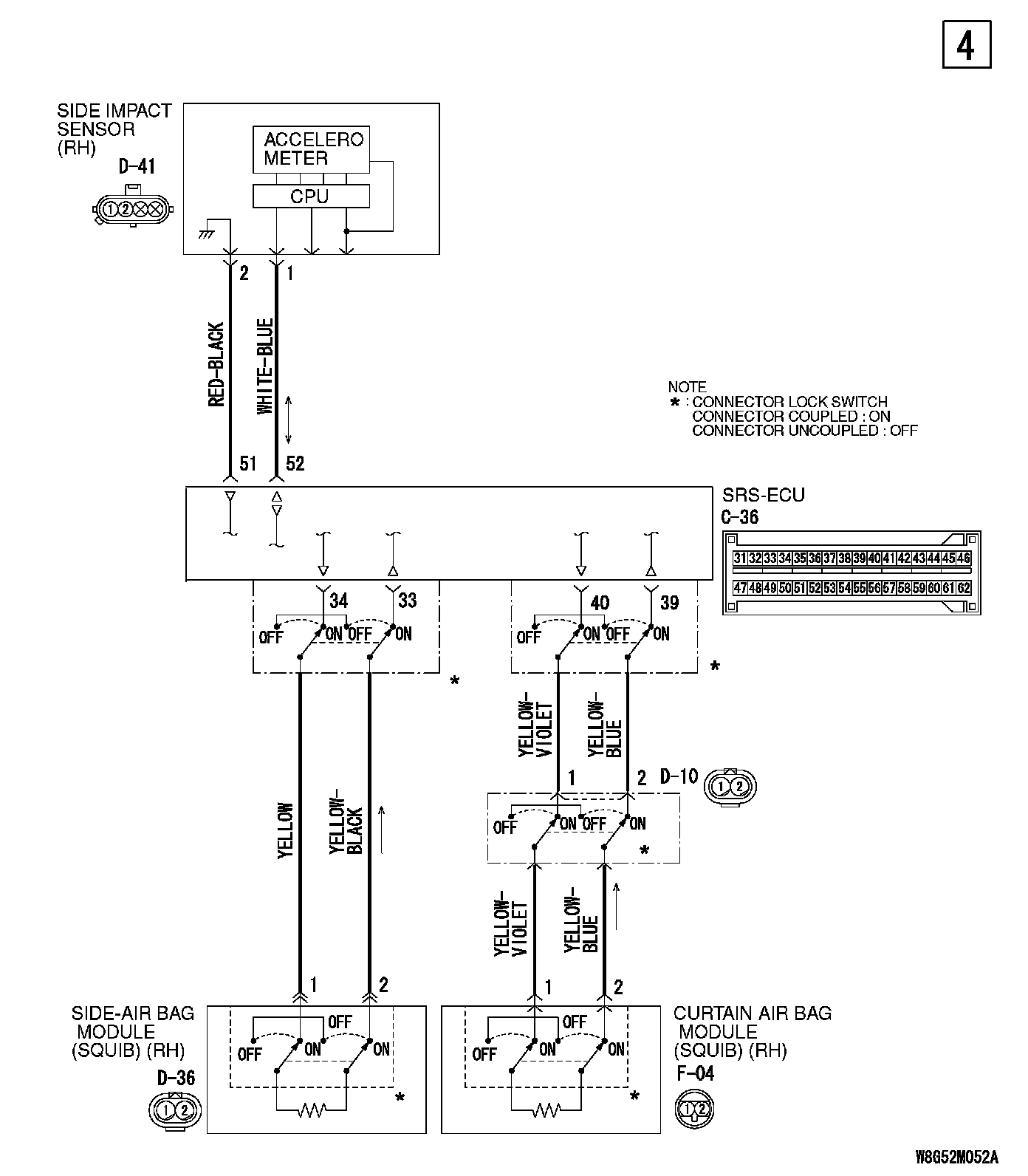

Circuit Diagram (Part 4):

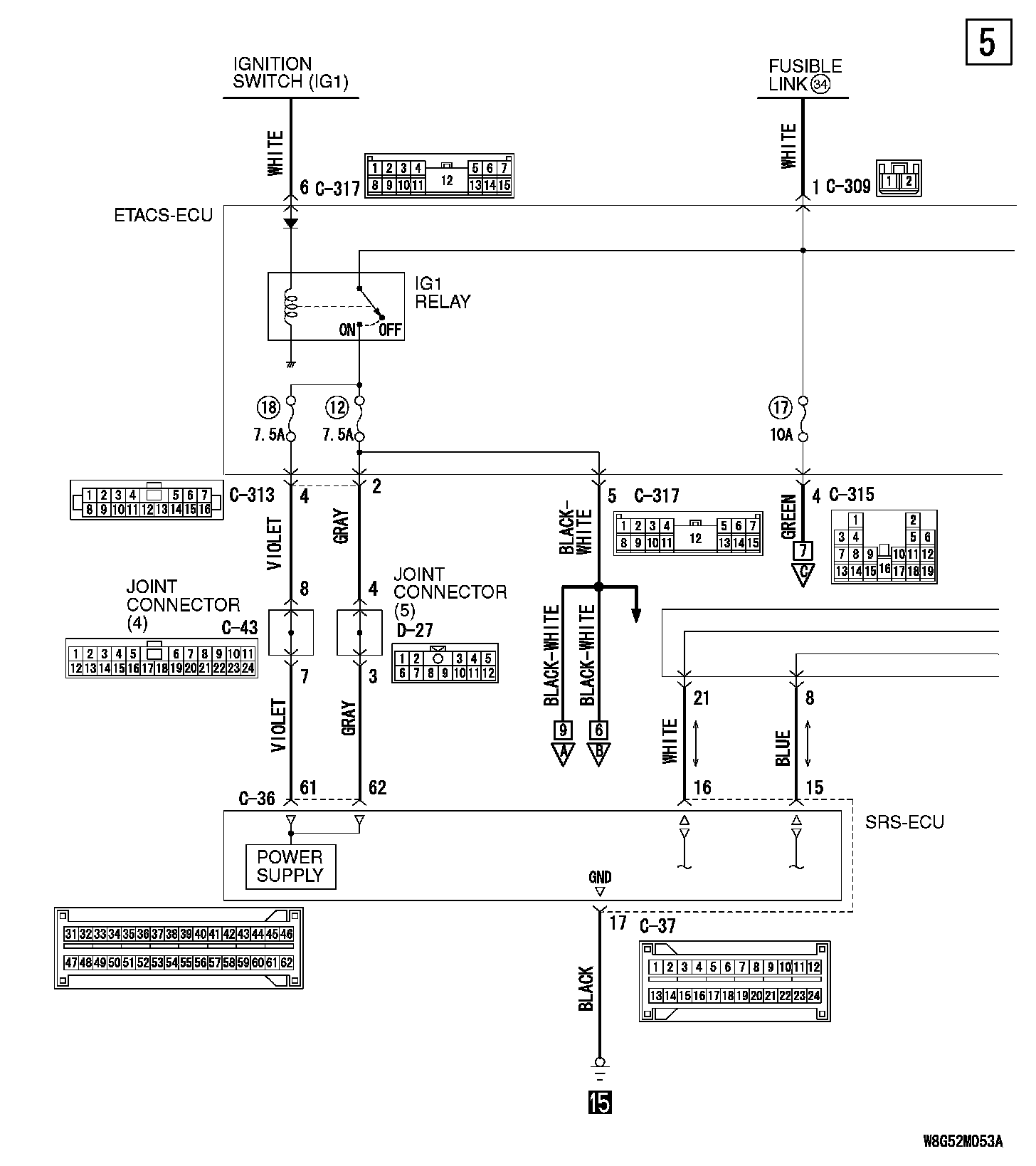

Circuit Diagram (Part 5):

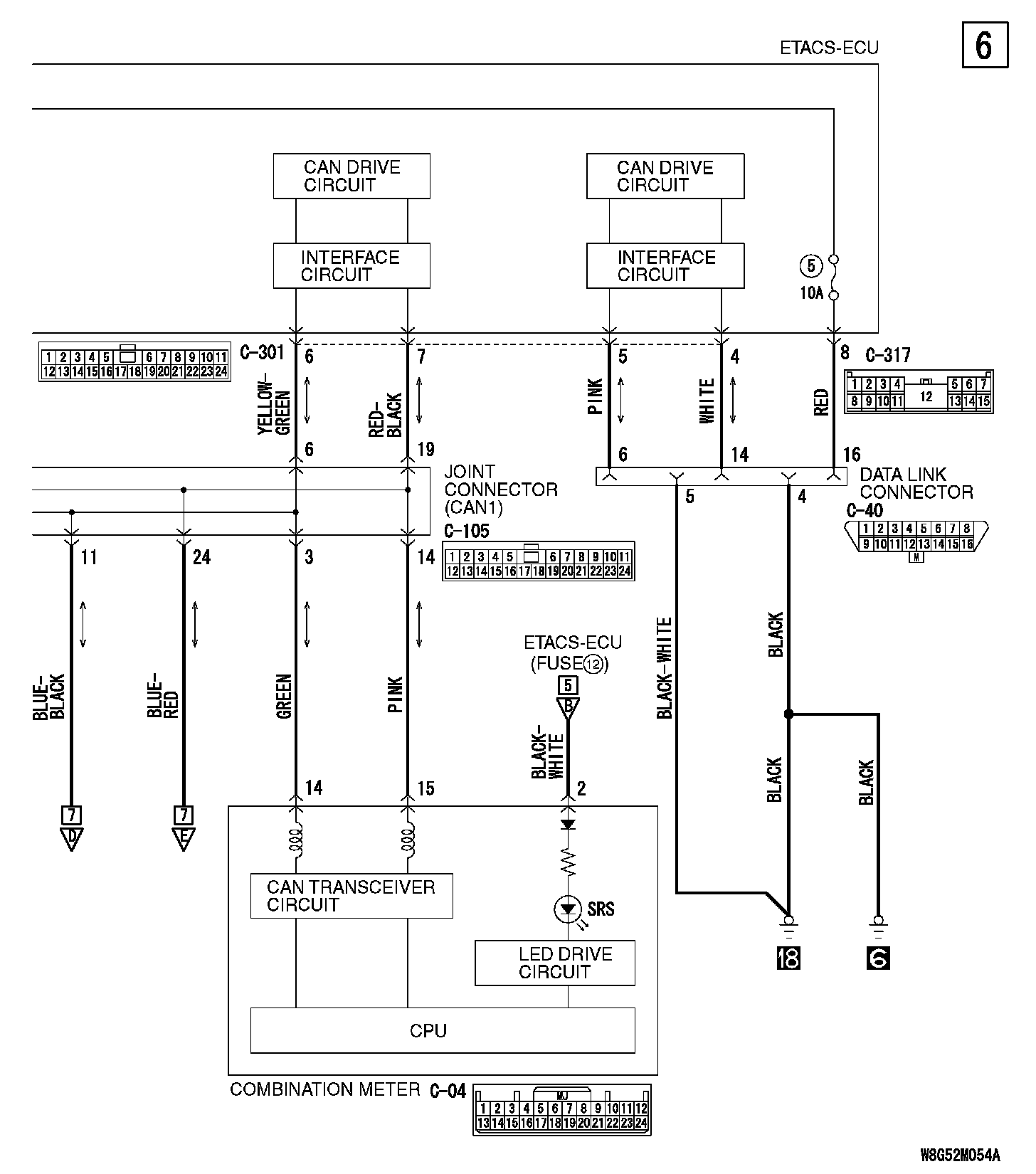

Circuit Diagram (Part 6):

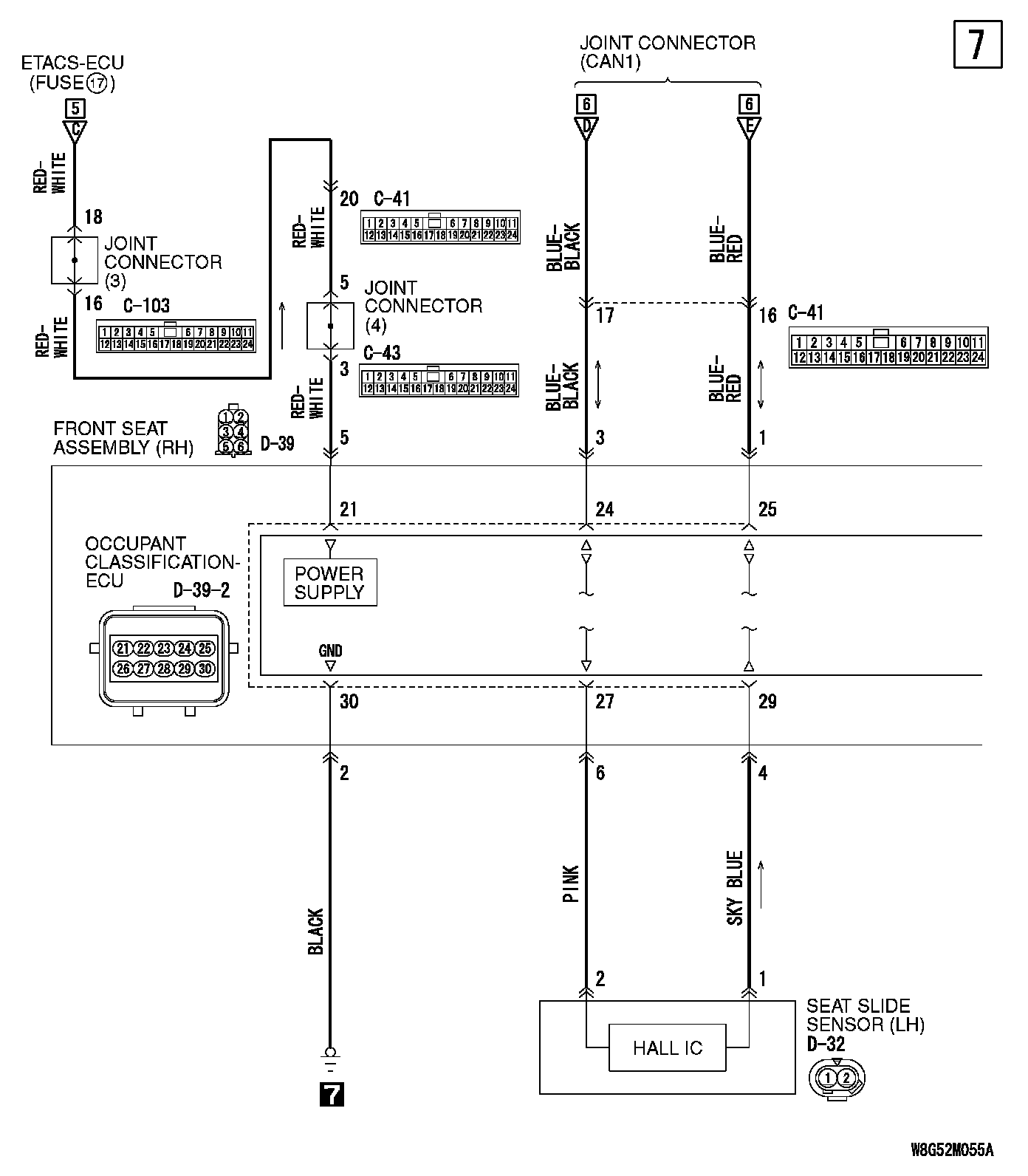

Circuit Diagram (Part 7):

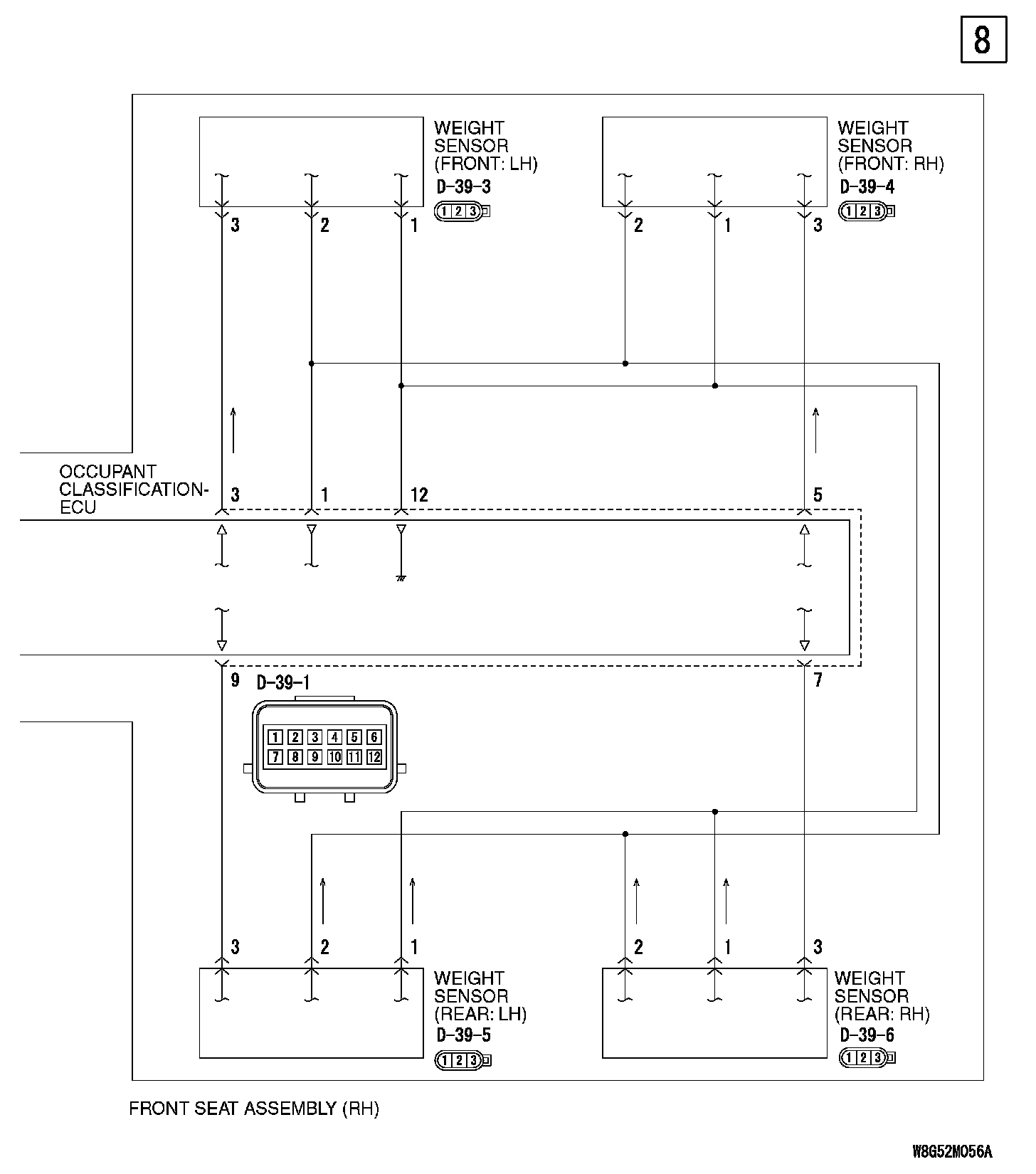

Circuit Diagram (Part 8):

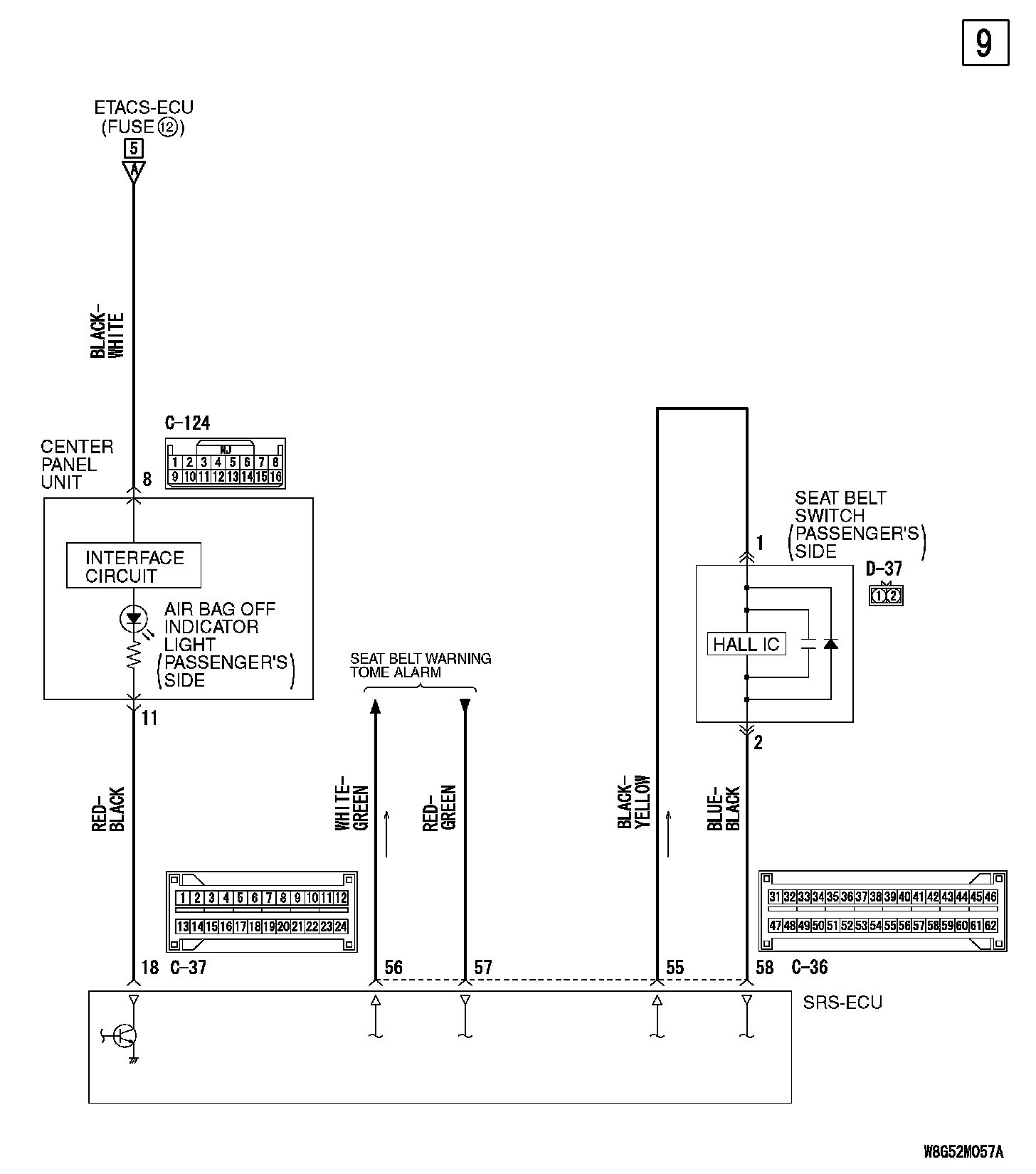

Circuit Diagram (Part 9):
