Stoplight Switch Check

STOPLIGHT SWITCH CHECK

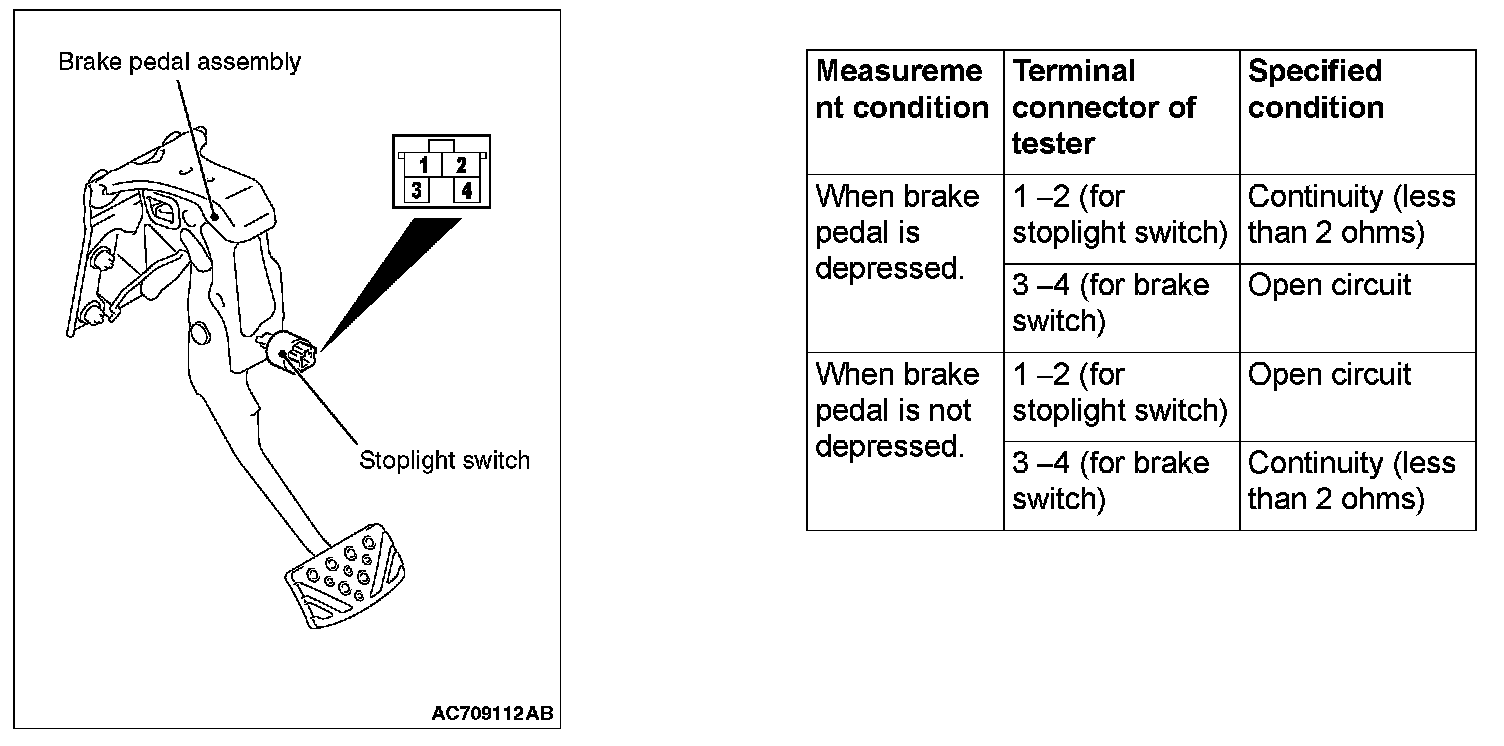

1. Disconnect the stoplight switch harness connector.




2. Check for continuity between the terminals of the switch.
