Clutch Switch Check, M/T

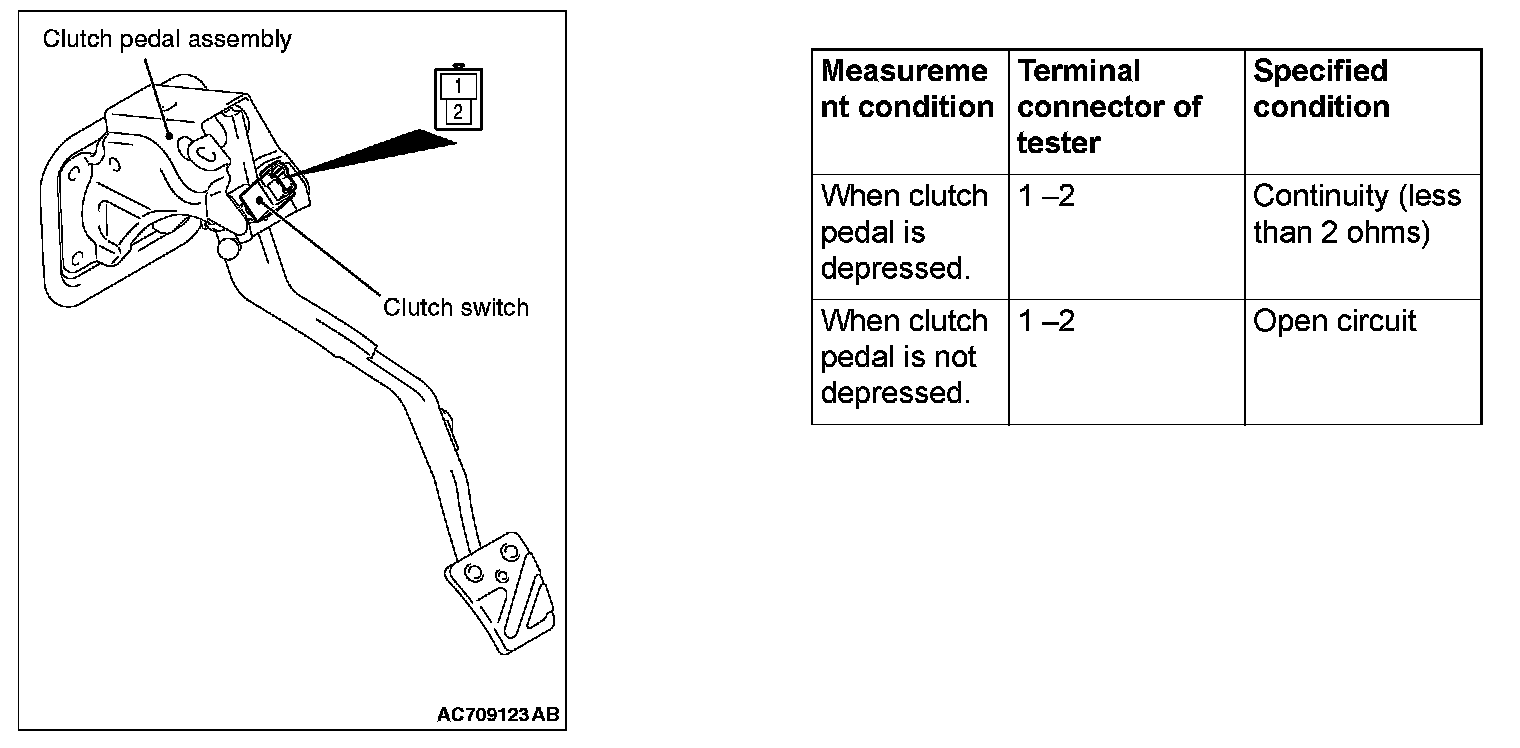

CLUTCH SWITCH CHECK

1. Disconnect the clutch switch harness connector.




2. Check for continuity between the terminals of the switch.
