Parking Brake Cable: Service and Repair

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

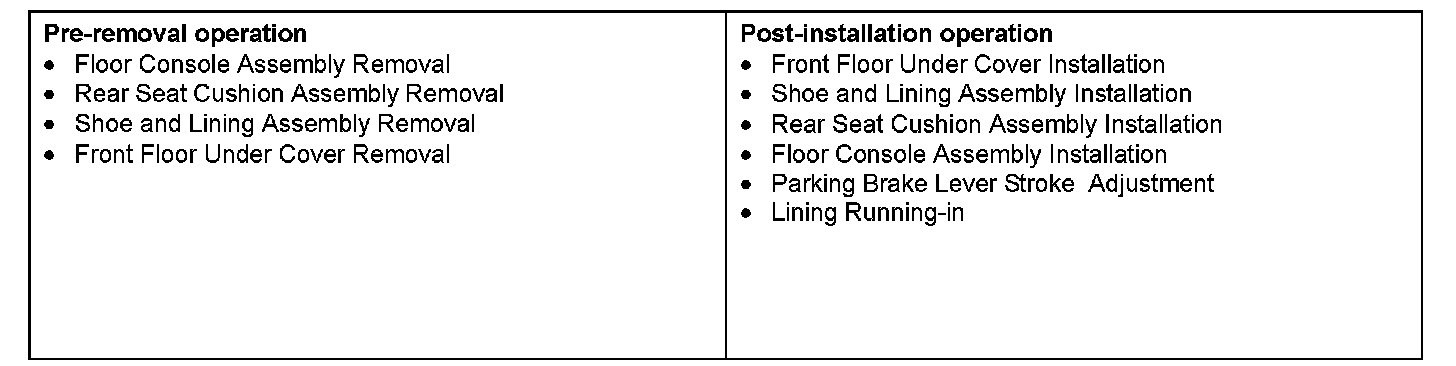

Pre-removal & Post-installation Operation:

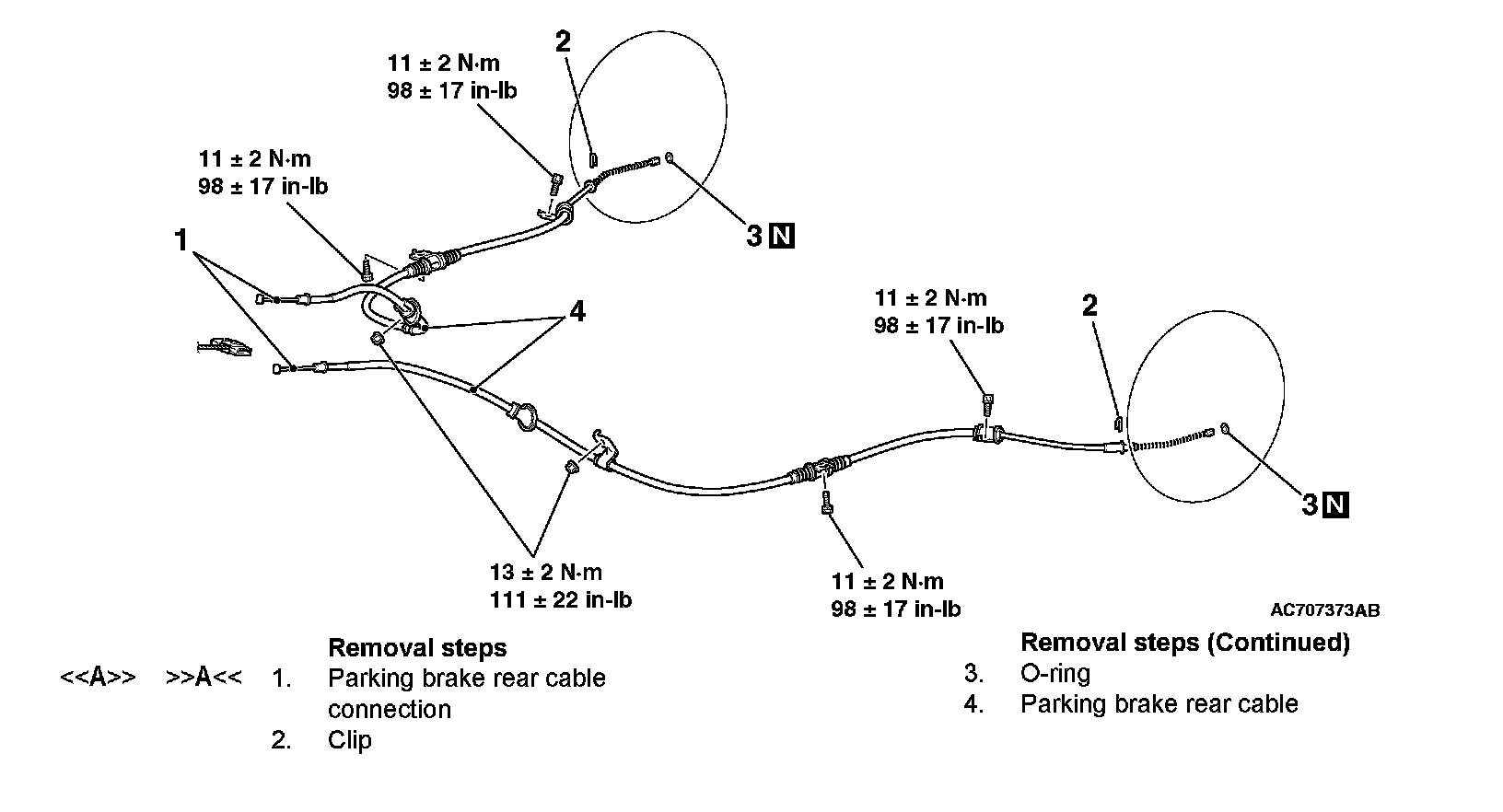

Removal Steps 1-4:

REMOVAL SERVICE POINT

[A] PARKING BRAKE REAR CABLE CONNECTION REMOVAL
Disconnect the parking brake rear cable according to the procedure below.
1. Release the parking brake, and loosen the adjusting nut.





2. Remove the floor console bracket rear mounting bolt.

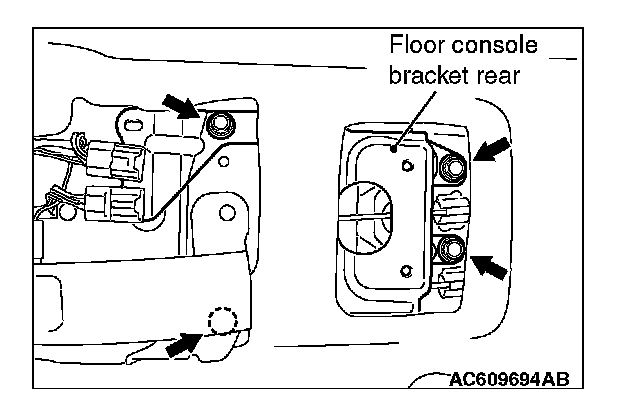

3. Slide the floor console bracket rear, and disconnect the parking brake rear cable through the hole indicated with an arrow in the figure.

INSTALLATION SERVICE POINT

]A[ PARKING BRAKE REAR CABLE CONNECTION INSTALLATION

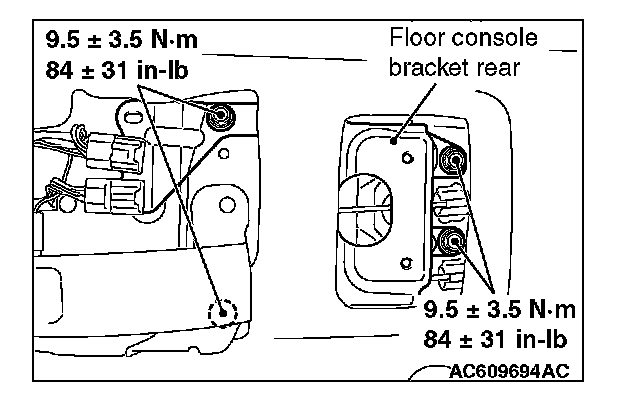

Connect the parking brake rear cable, and tighten the floor console bracket rear mounting bolt to the specified torque.

Tightening torque: 9.5 ± 3.5 Nm (84 ± 31 in-lb)
