Brakes - Revised Grease Identification
No: TSB-08-35-005DATE: December, 2008
MODEL: 2008 Lancer Evolution
SUBJECT:
IDENTIFICATION OF BRAKE GREASE TYPE BY COLOR - SERVICE MANUAL REVISION
PURPOSE
To update the applicable service manuals with a instruction for identifying the type of brake pad grease by color.
AFFECTED VEHICLE(S)
2008 Lancer Evolution

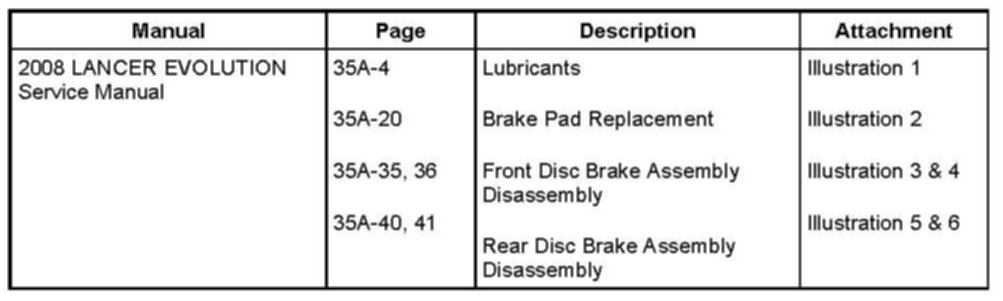

APPLICABLE MANUAL(S)

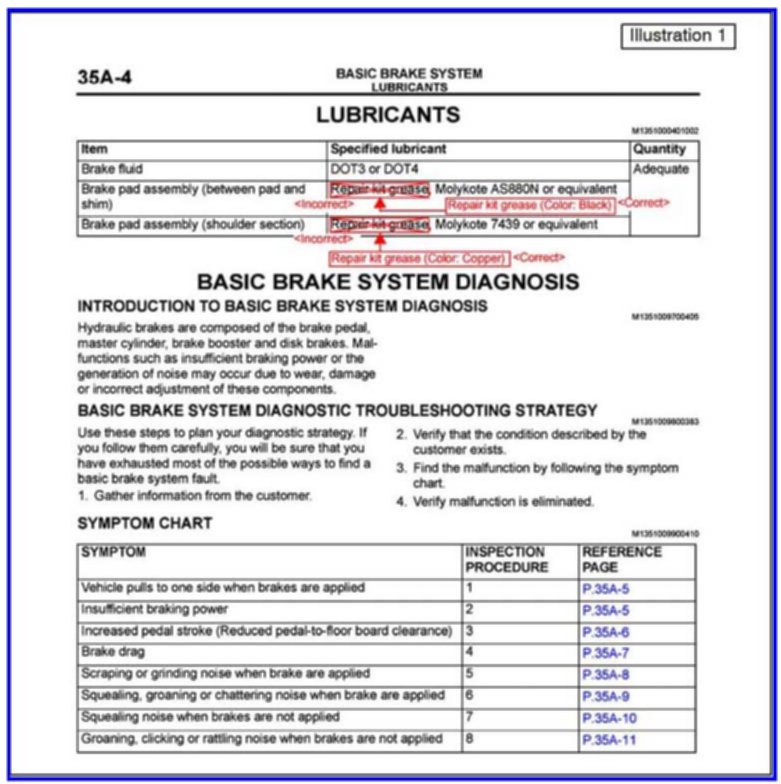

Page 35A-4 - Illustration 1

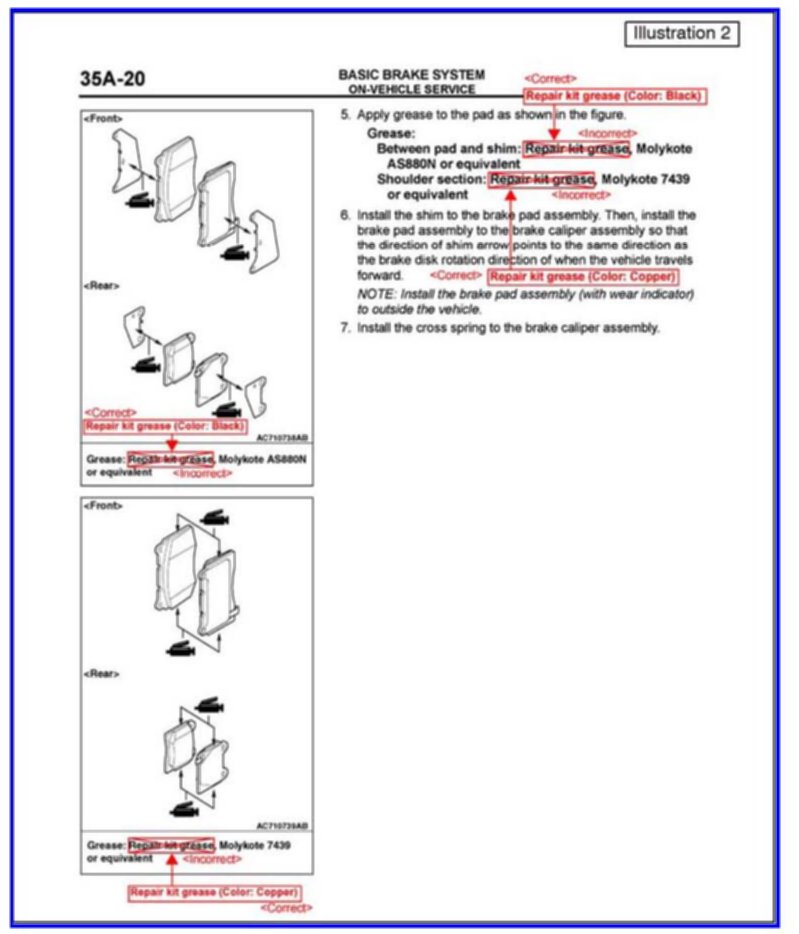

Page 35A-20 - Illustration 2
Page 35A-35 - Illustration 3

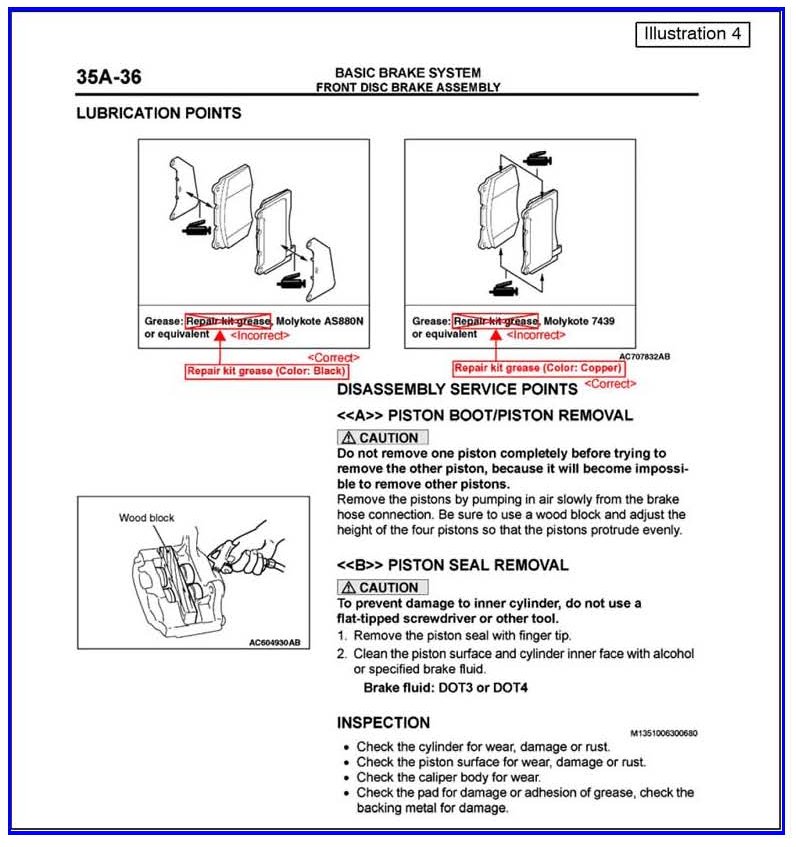

Page 35A-36 - Illustration 4

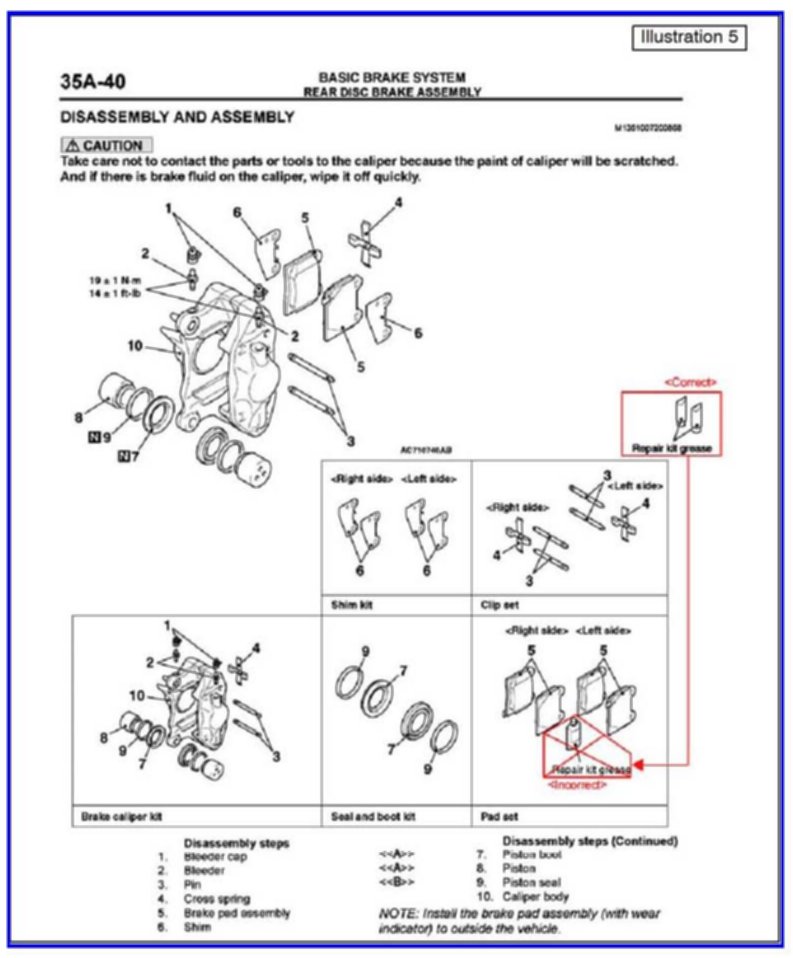

Page 35A-40 - Illustration 5

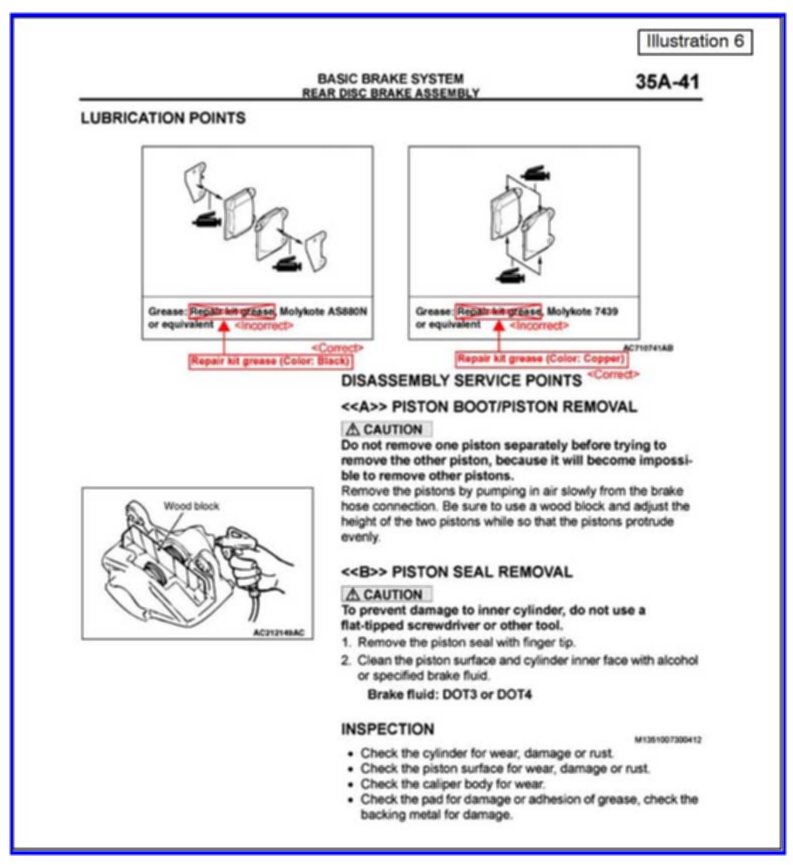

Page 35A-41 - Illustration 6
