Brake Pedal Assy: Service and Repair

NOTE: This article contains changes called out in TSB-08-35-001.


BRAKE PEDAL

REMOVAL AND INSTALLATION

CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

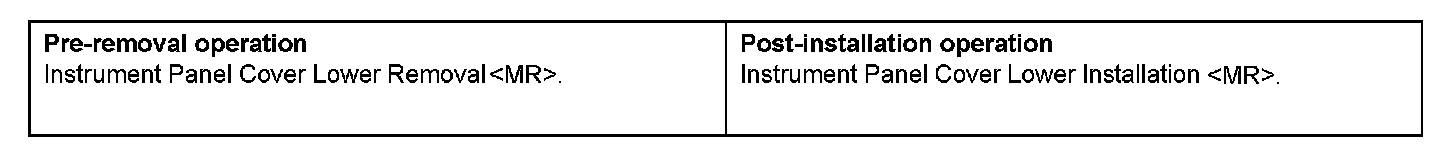

Pre-removal & Post-installation Operation:

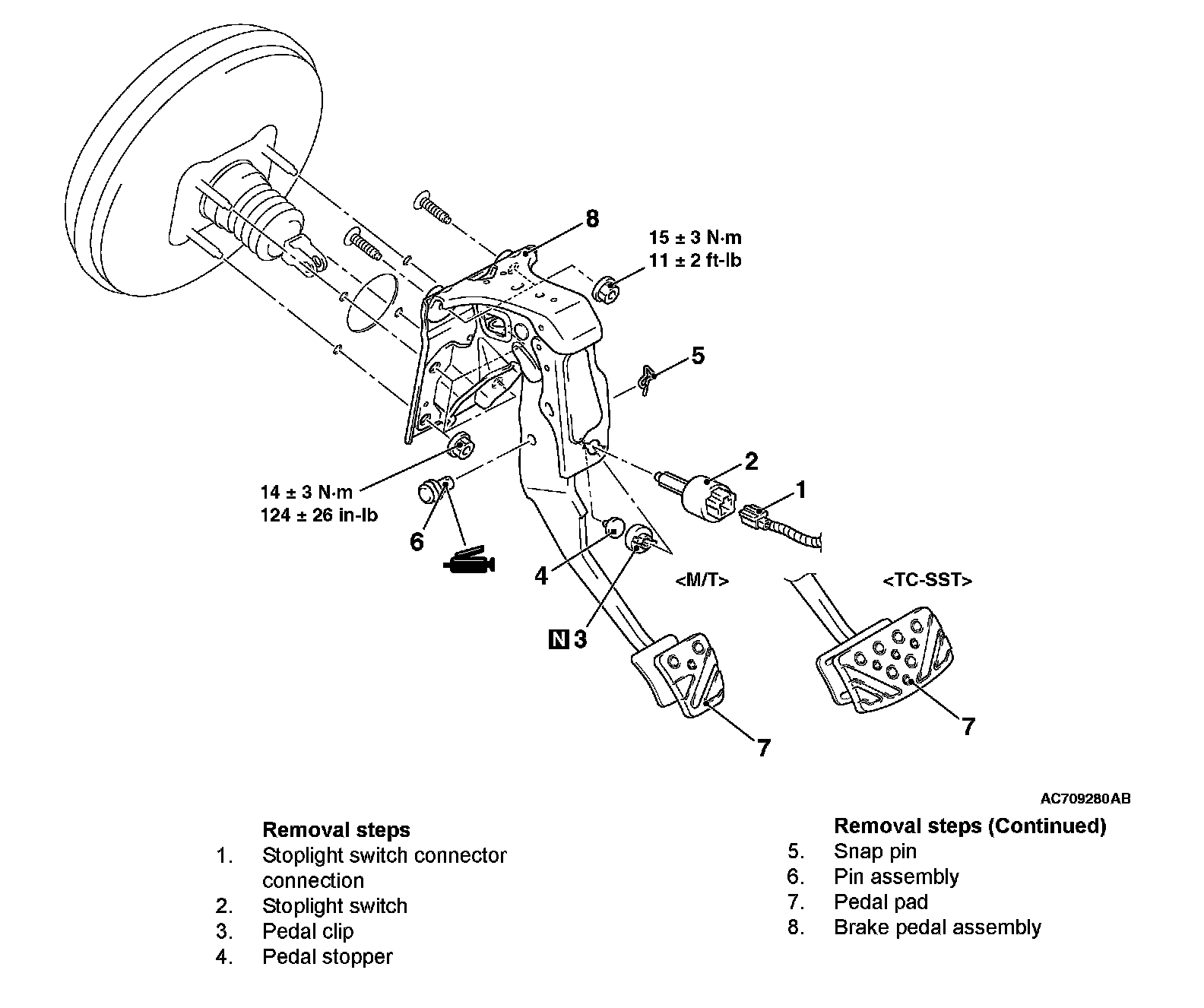

Removal Steps 1-8:

INSPECTION

STOPLIGHT SWITCH CHECK

CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.





1. Connect a circuit tester (Mange) to the stoplight switch connector.

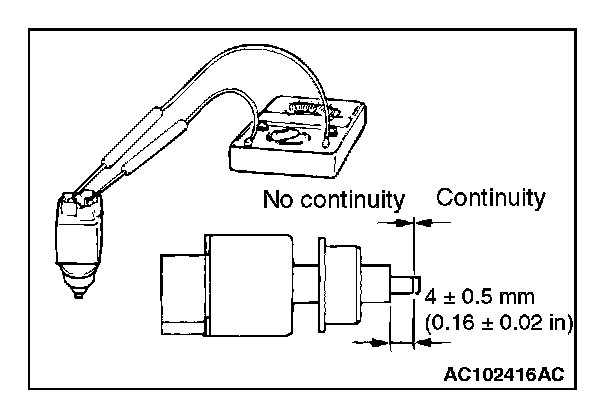

2. When no continuity is detected with the plunger pressed from the edge of the outer case by the dimension shown in the figure and when continuity is detected with the plunger released, the stoplight switch is in good condition.
