Front Door Weatherstrip: Service and Repair

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

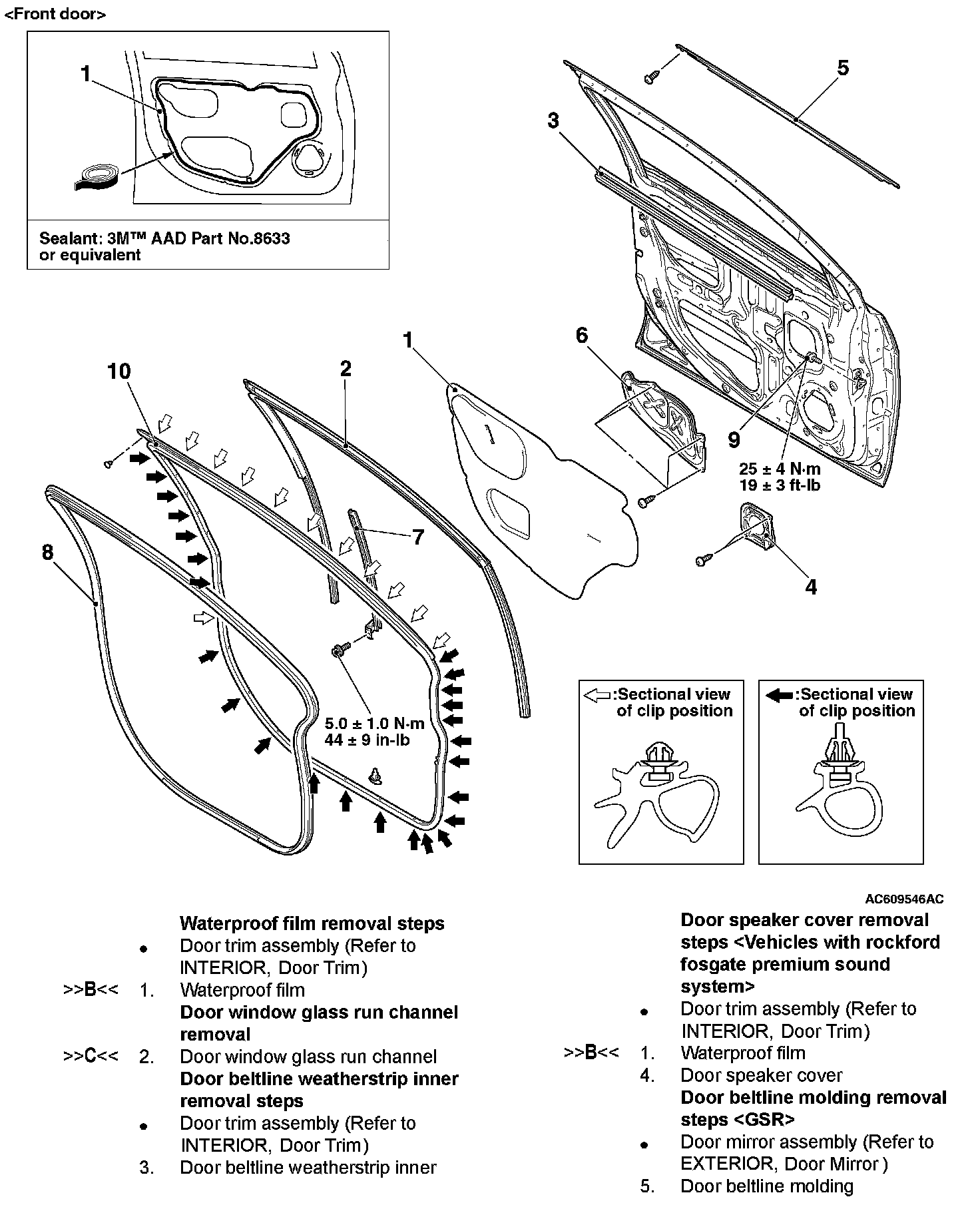

Removal Steps 1-10 (Part 1):

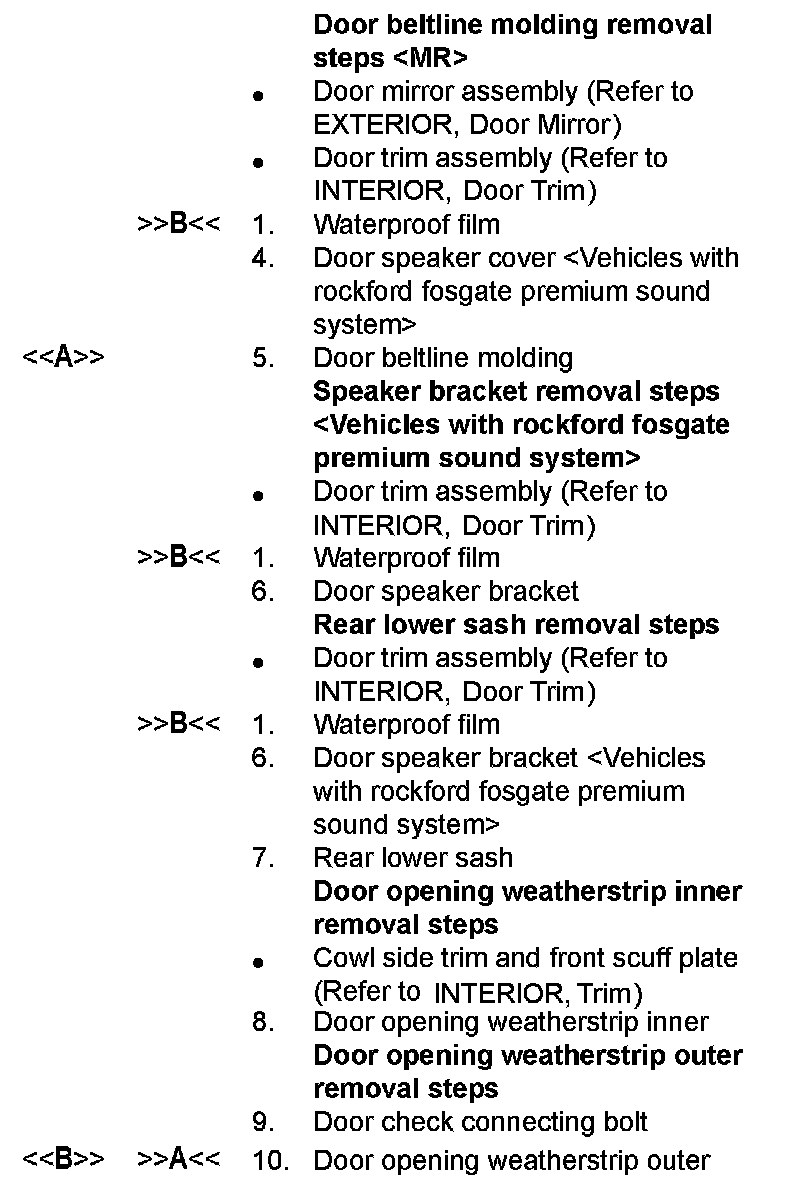

Removal Steps 1-10 (Part 2):

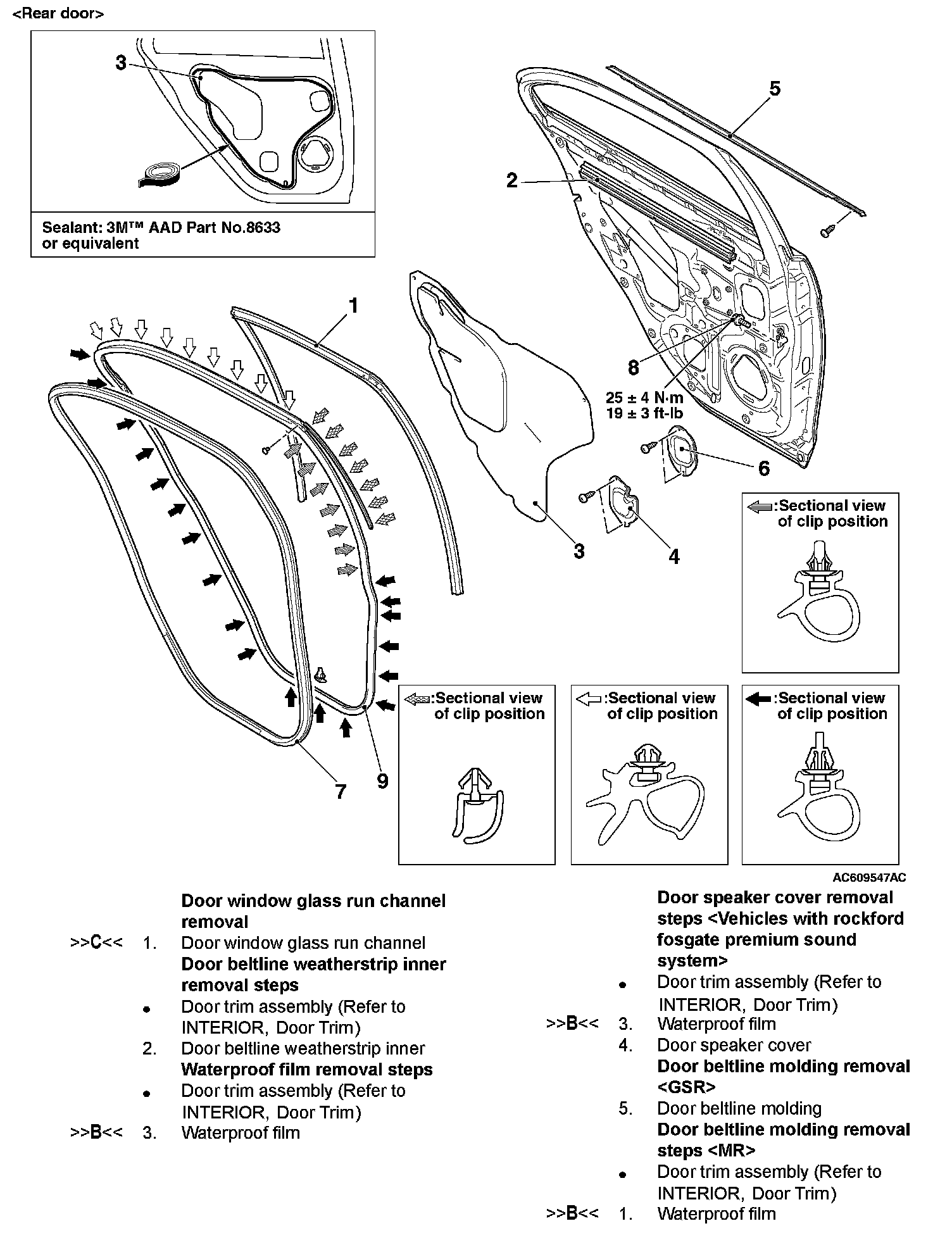

Removal Steps 1-9 (Part 1):

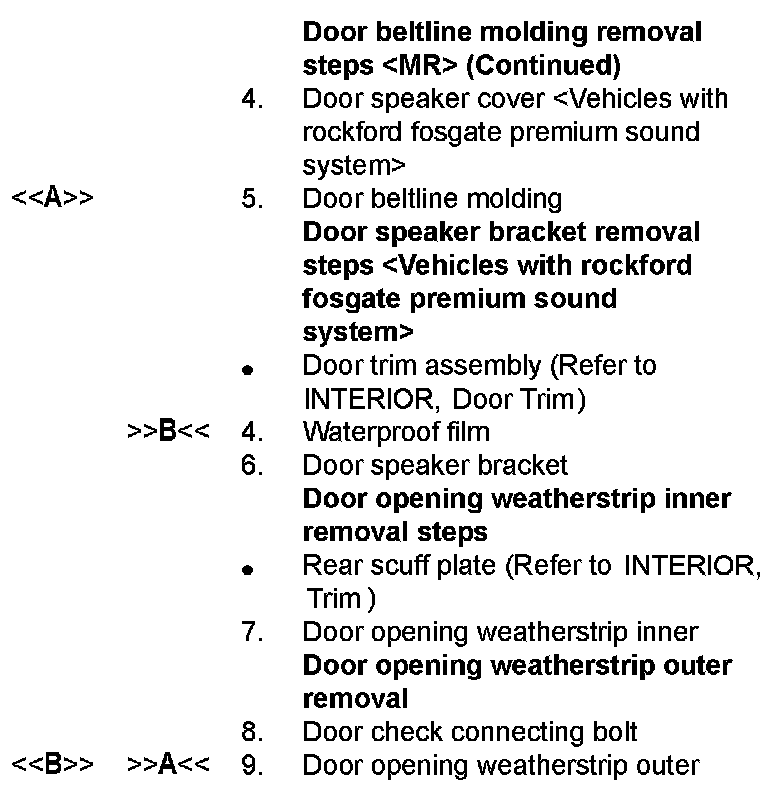

Removal Steps 1-9 (Part 2):

REMOVAL SERVICE POINTS

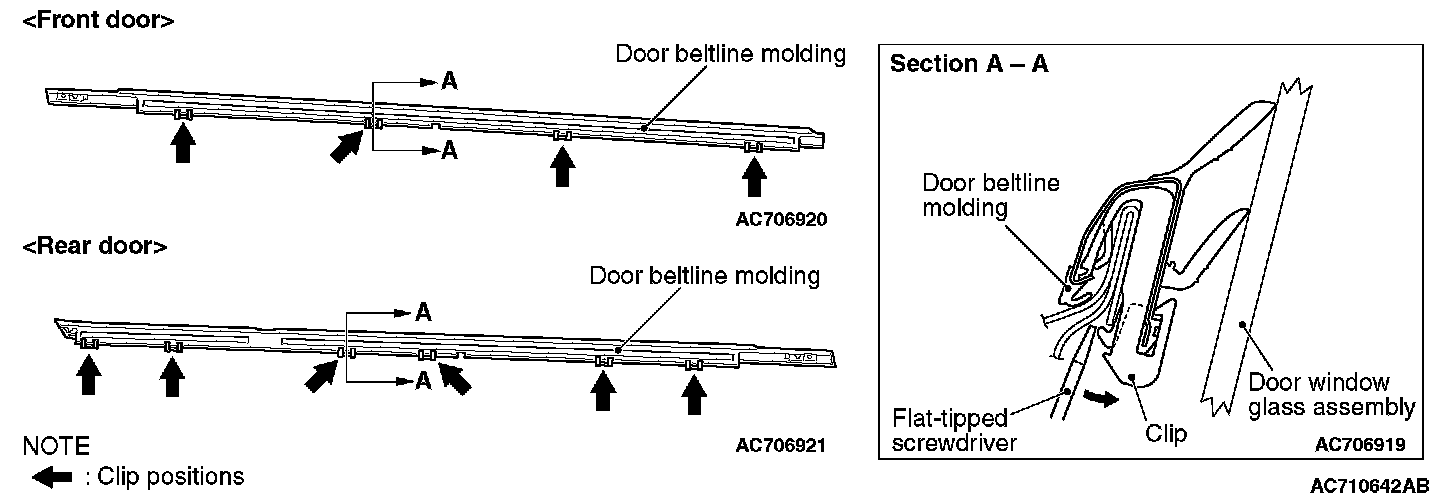

]]A[[ DOOR BELTLINE MOLDING REMOVAL






Pry the door beltline molding clip positions with the flat-tipped screwdriver and remove the door beltline molding.

]]B[[ DOOR OPENING WEATHERSTRIP OUTER REMOVAL

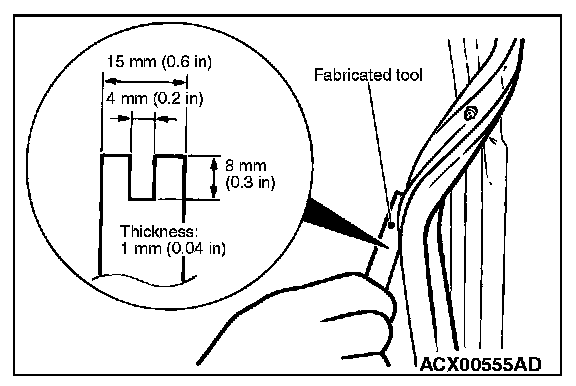

Make the tool as shown in the figure, and remove the weatherstrip from the door panel.

INSTALLATION SERVICE POINTS

[[A]] DOOR OPENING WEATHERSTRIP OUTER INSTALLATION

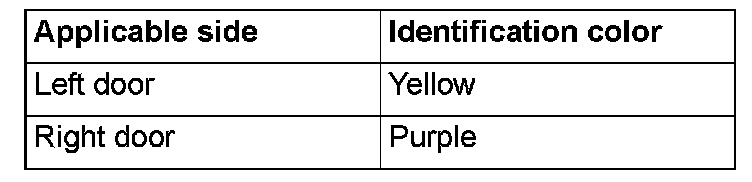

The clip color identifies the left and right weatherstrips so be sure to see the colors so as to install correctly.

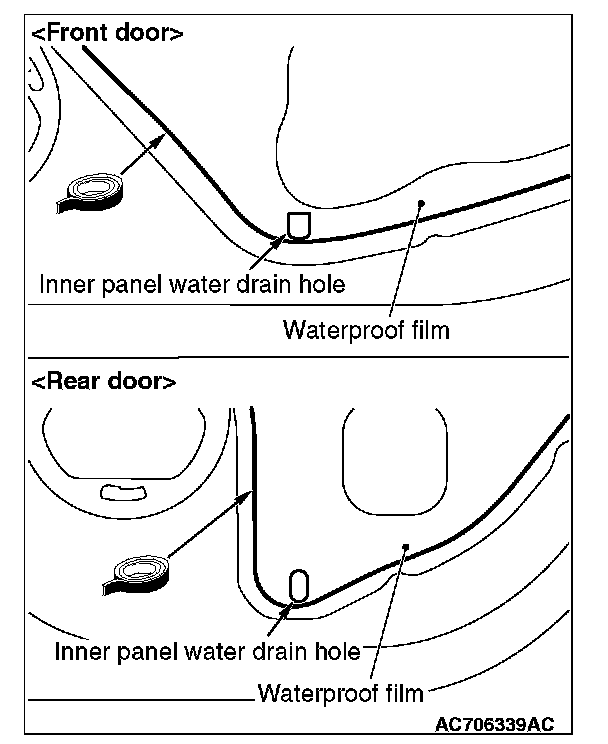

[[B]] WATERPROOF FILM INSTALLATION






CAUTION: When a waterproof film is applied, guide the butyl rubber tape under the inner panel drain hole.

Apply the specified adhesive to the waterproof film as shown in the figure and stick the film.

Butyl rubber tape: 3M(TM) AAD Part number 8633 or equivalent

[[C]] DOOR WINDOW GLASS RUNCHANNEL INSTALLATION

Apply soapy water to the tip of the door window glass runchannel, and then install it to the door.
