Suspension - Revised Front Strut Tower Mounting Torque

No: TSB-09-42A-005

DATE: May, 2009

MODEL: 2008 Lancer Evolution

SUBJECT:
STRUT TOWER BAR MOUNTING BOLT TORQUE CHANGED - SERVICE MANUAL REV.

PURPOSE





To increase the tightening torque specification for the center strut tower bar mounting bolt in the service manual.

AFFECTED VEHICLE(S)
2008 Lancer Evolution

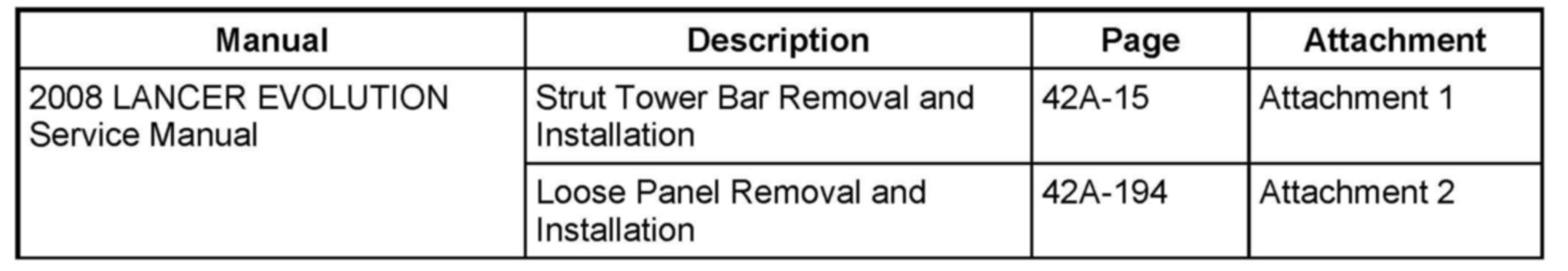

APPLICABLE MANUAL(S)

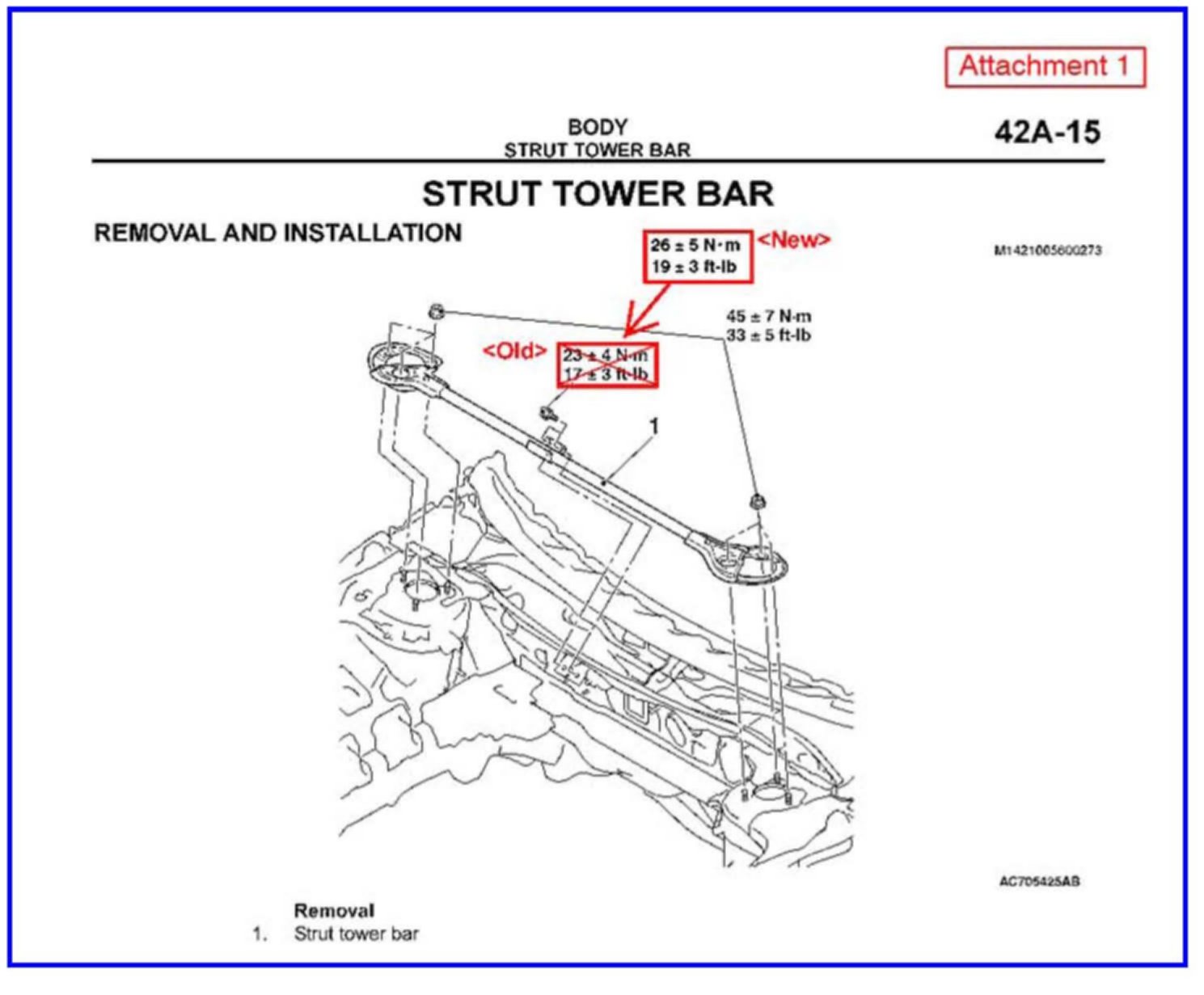

Service Manual Update - Page 42A-15/Attachment 1

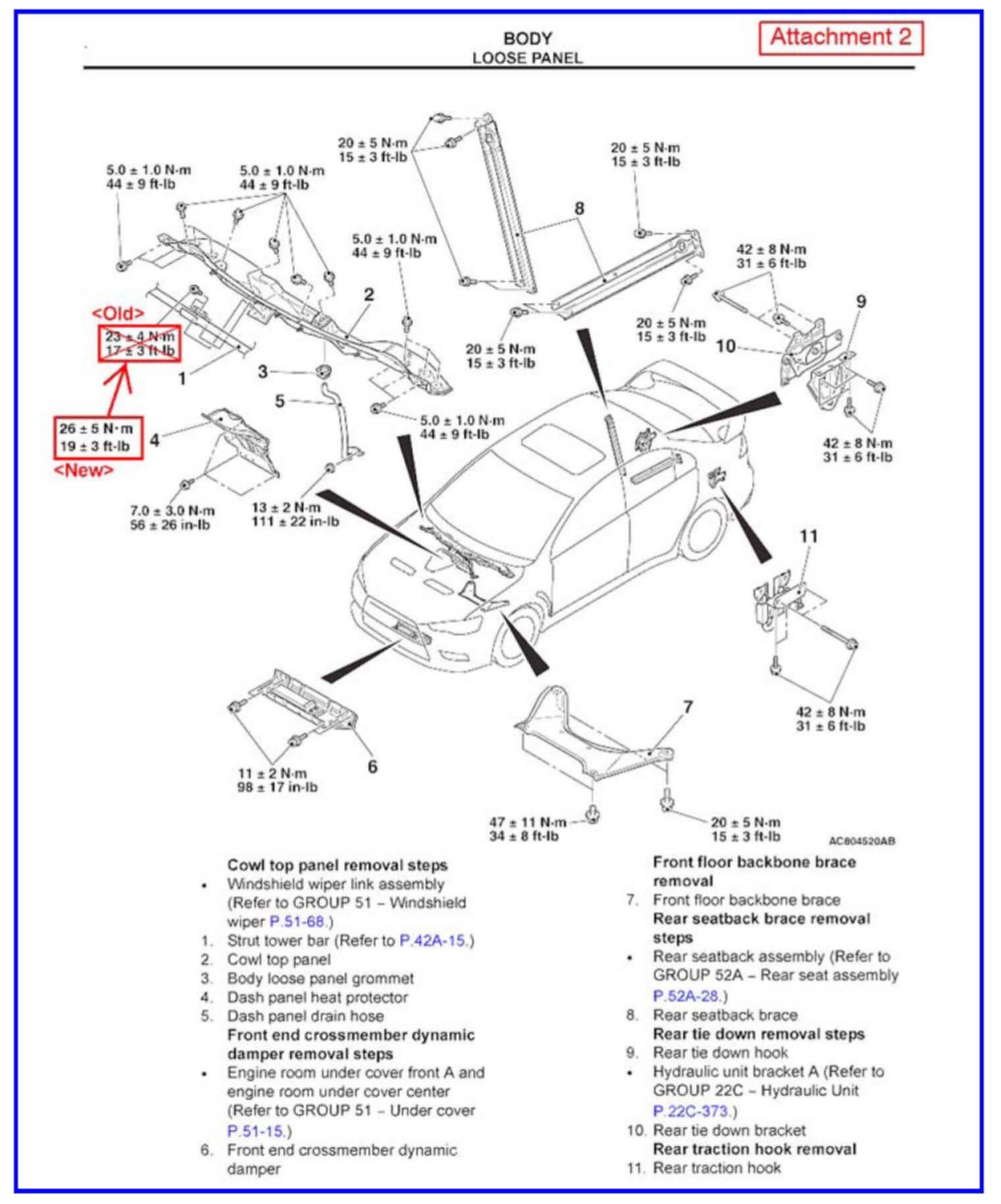

Service Manual Update - Attachment 2
