Spoiler: Service and Repair

REAR SPOILER

REMOVAL AND INSTALLATION

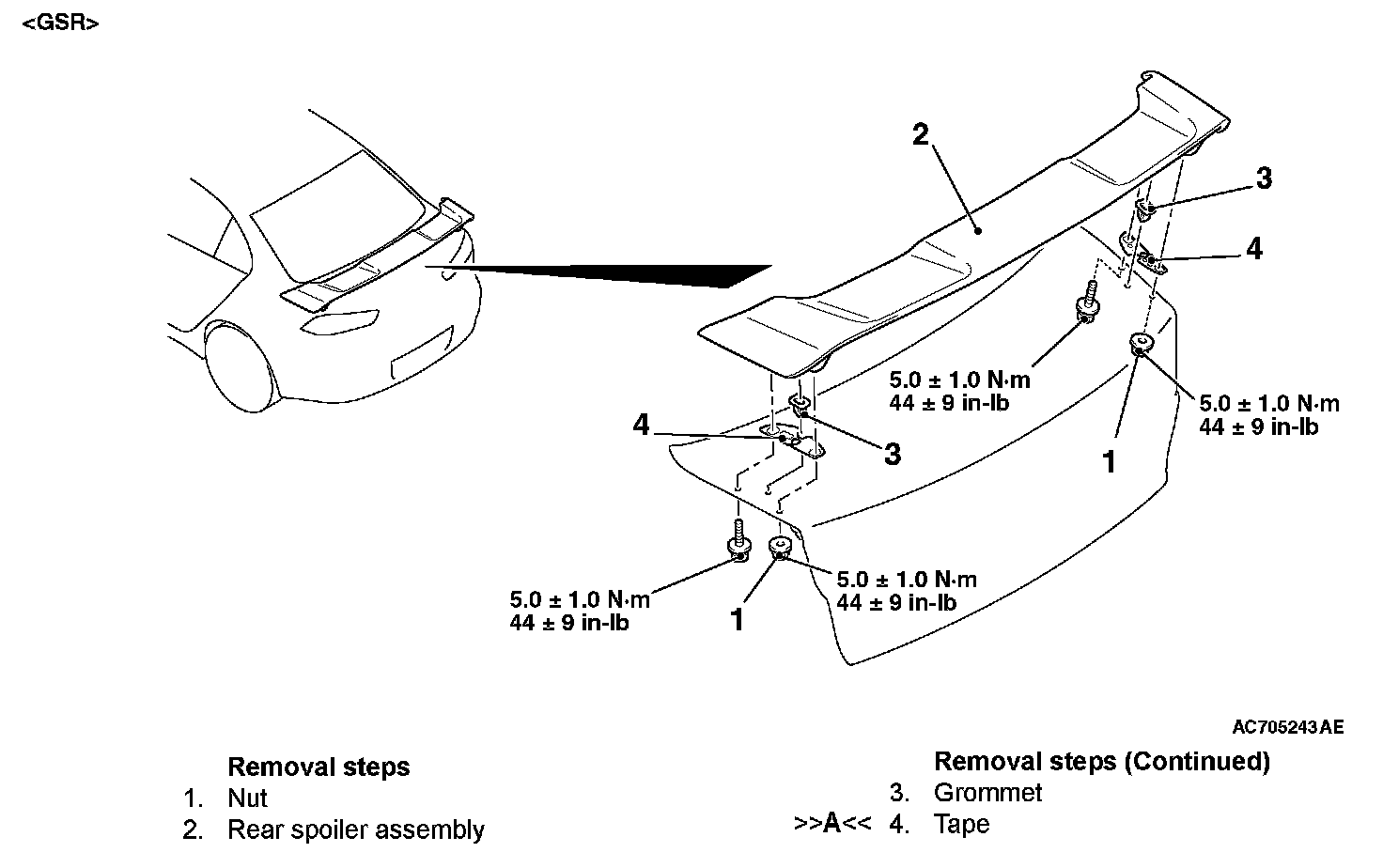

Removal Steps 1-4:

INSTALLATION SERVICE POINT

[[A]] TAPE INSTALLATION

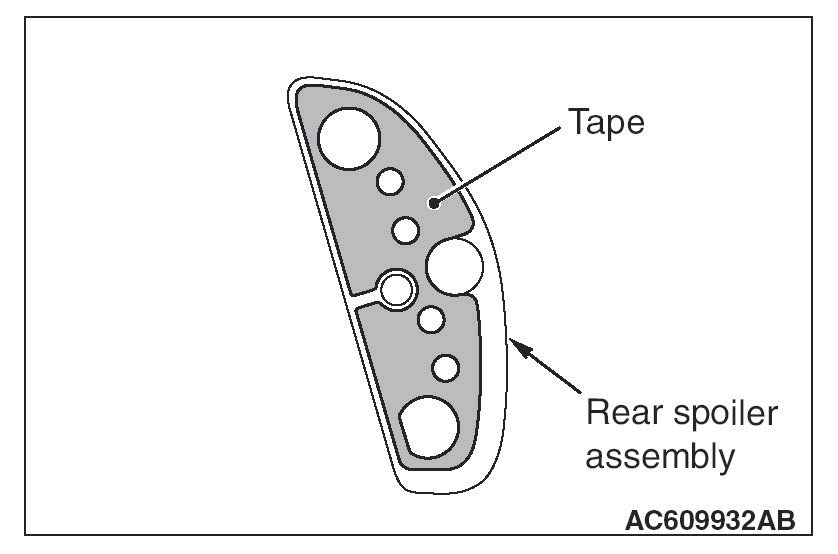

1. Installation position

CAUTION:
- The ambient temperature should be 15 (59) to 40°C (104°F). Ensure that the working area is clean.
- If ambient temperature is less than 15°C (59°F), heat the tape and application surface to a temperature of 15 (59) to 40°C (104°F).
- Be careful that air bubbles are not formed under the tape.

2. Installation procedure
1. Wipe the tape application surface and clean it with a rag moistened with isopropyl alcohol.
2. Remove backing paper from the tape, and apply it to the rear spoiler assembly.
