Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Splash Guard
>>
Service and Repair
>>
Under Cover
Under Cover

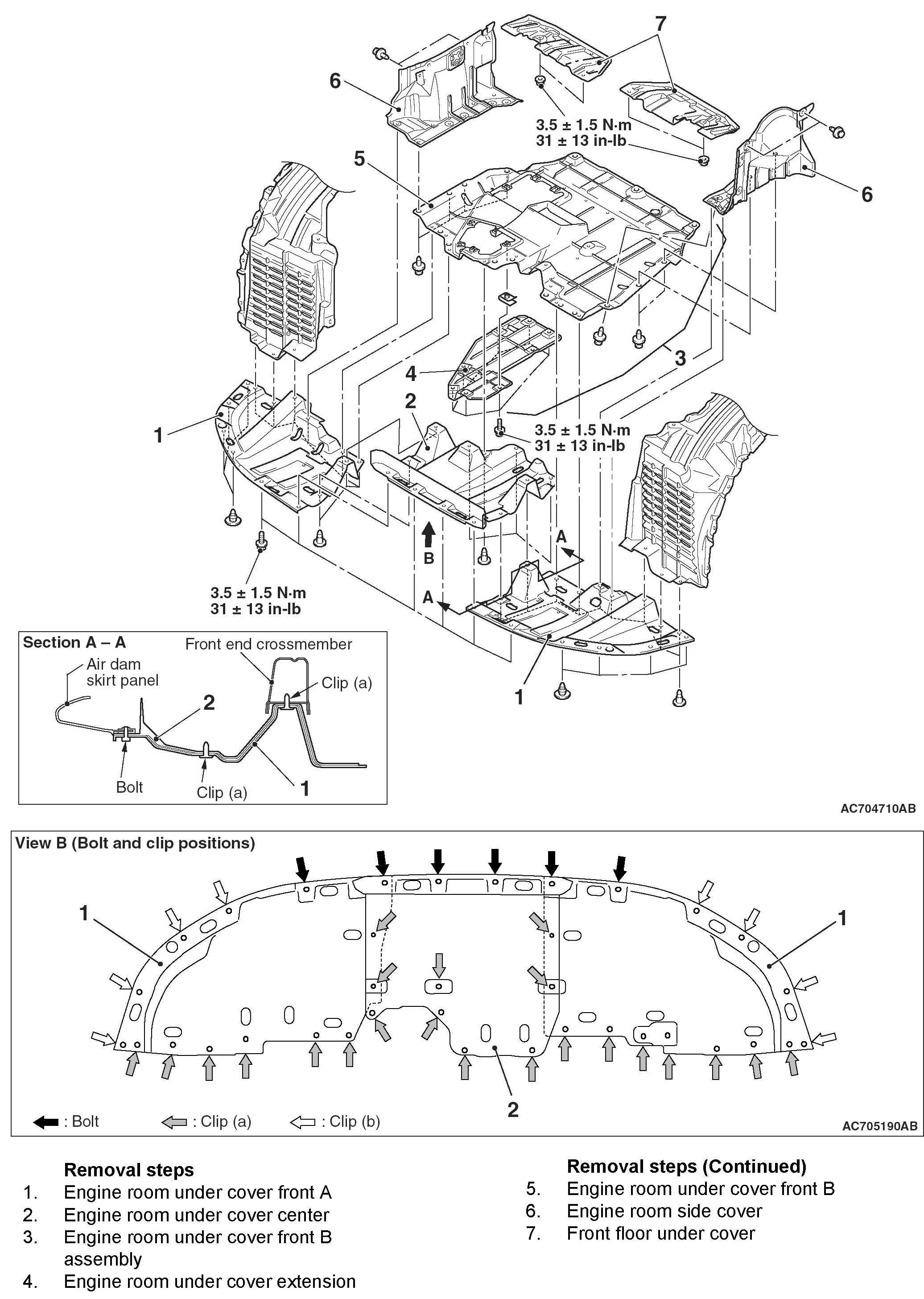

UNDER COVER
REMOVAL AND INSTALLATION
Removal Steps 1-7:
