Seats: Testing and Inspection

INSPECTION

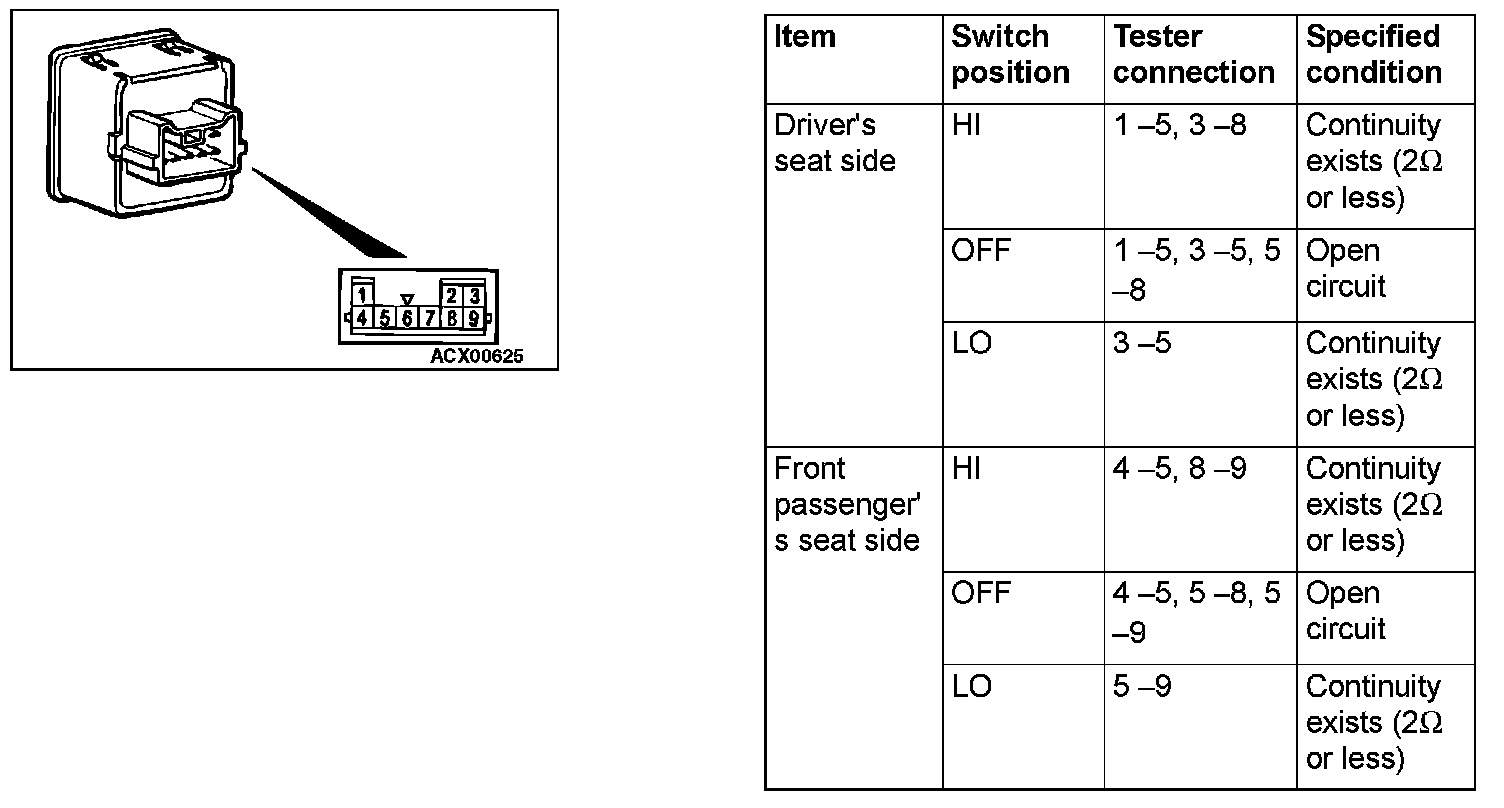

CONTINUITY TEST OF HEATED SEAT SWITCH

Continuity Test Of Heated Seat Switch:

1. Check for continuity between terminals.
2. Check that the indicator is lighted at HI or LO when battery voltage is supplied to terminal 5 and terminal 8 is grounded.
3. Check that indicator is lighted when battery voltage is supplied to terminals 2 and terminal 6.

SEAT CUSHION HEATER CHECK

Seat Cushion Heater Check:

Measure the resistance between terminals.

Standard value: At room temperature 20°C (68°F)
Between heated seat assembly terminals 1 and seat-back heater terminal 1: 3.84 ± 4.69 Ohms
Between heated seat assembly terminals 2 and seat-back heater terminal 1: 0.14 ± 0.18

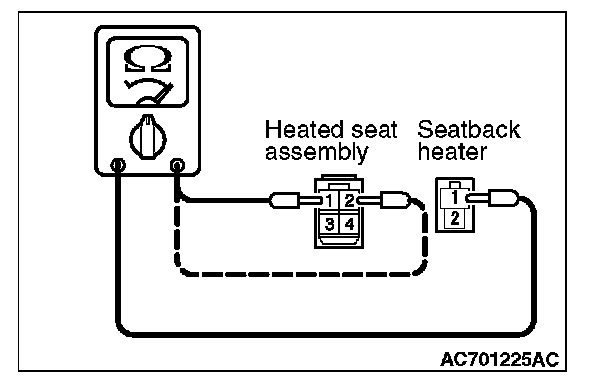

SEATBACK HEATER CHECK

Seatback Heater Check:

Measure the resistance between terminals.

Standard value: At room temperature 20°C (68°F)
Between terminals 1 and terminal 2: 5.40 ± 6.60 Ohms

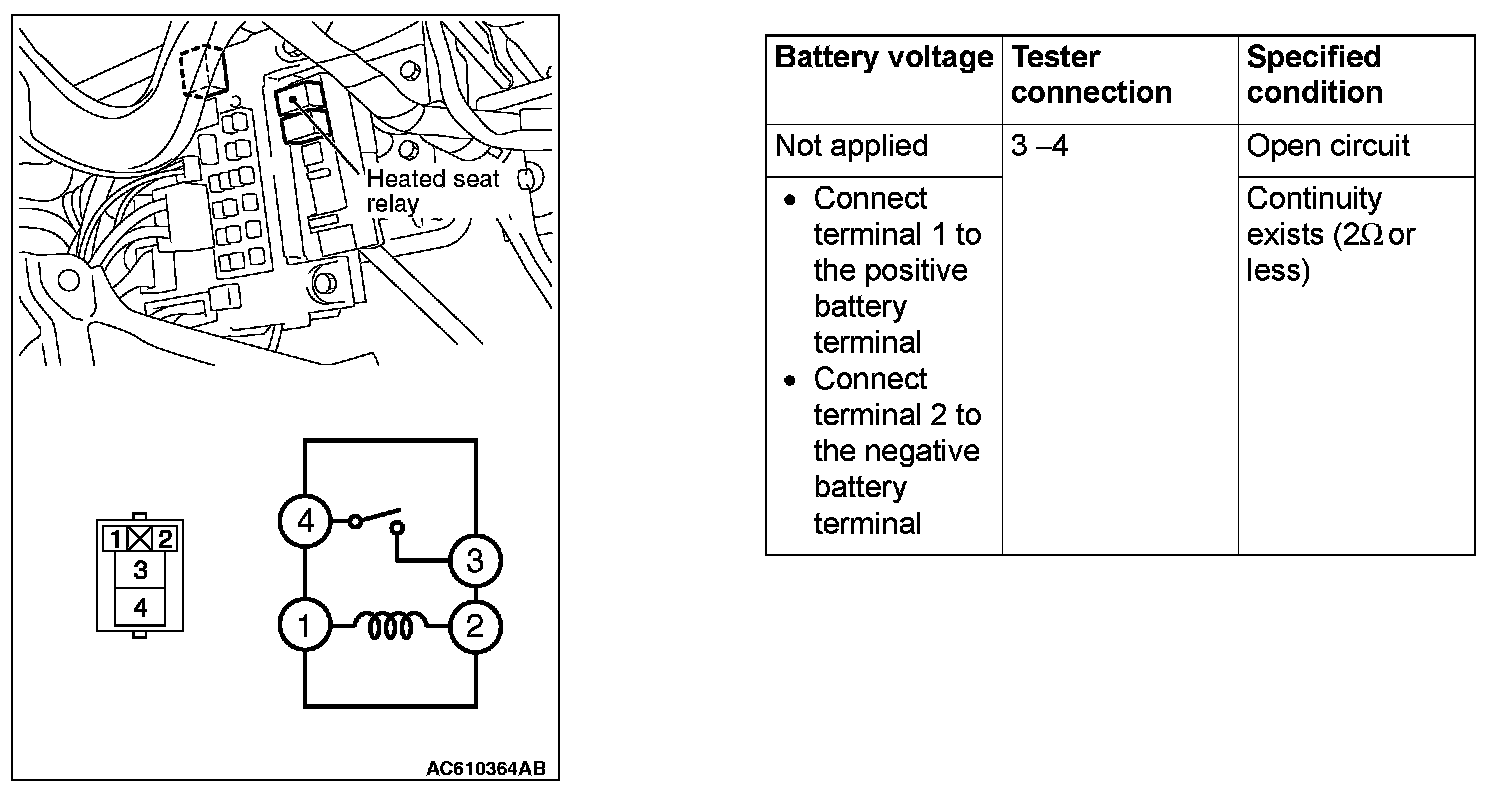

HEATED SEAT RELAY CONTINUITY CHECK

Heated Seat Relay Continuity Check:
