Body - Revised Sunroof Weatherstrip Replacement

No: TSB-09-42A-006

DATE: May, 2009

MODEL: See below

SUBJECT:
SUNROOF GLASS WEATHERSTRIP REPLACEMENT STEPS ADDED - SMR

PURPOSE

To change the sunroof installation and removal procedures due to the weatherstrip> being made available separately.

AFFECTED VEHICLE(S)
2008-09 Lancer
2008 Lancer Evolution
2009 Lancer Sportback (Canada Only)
2007-09 Outlander

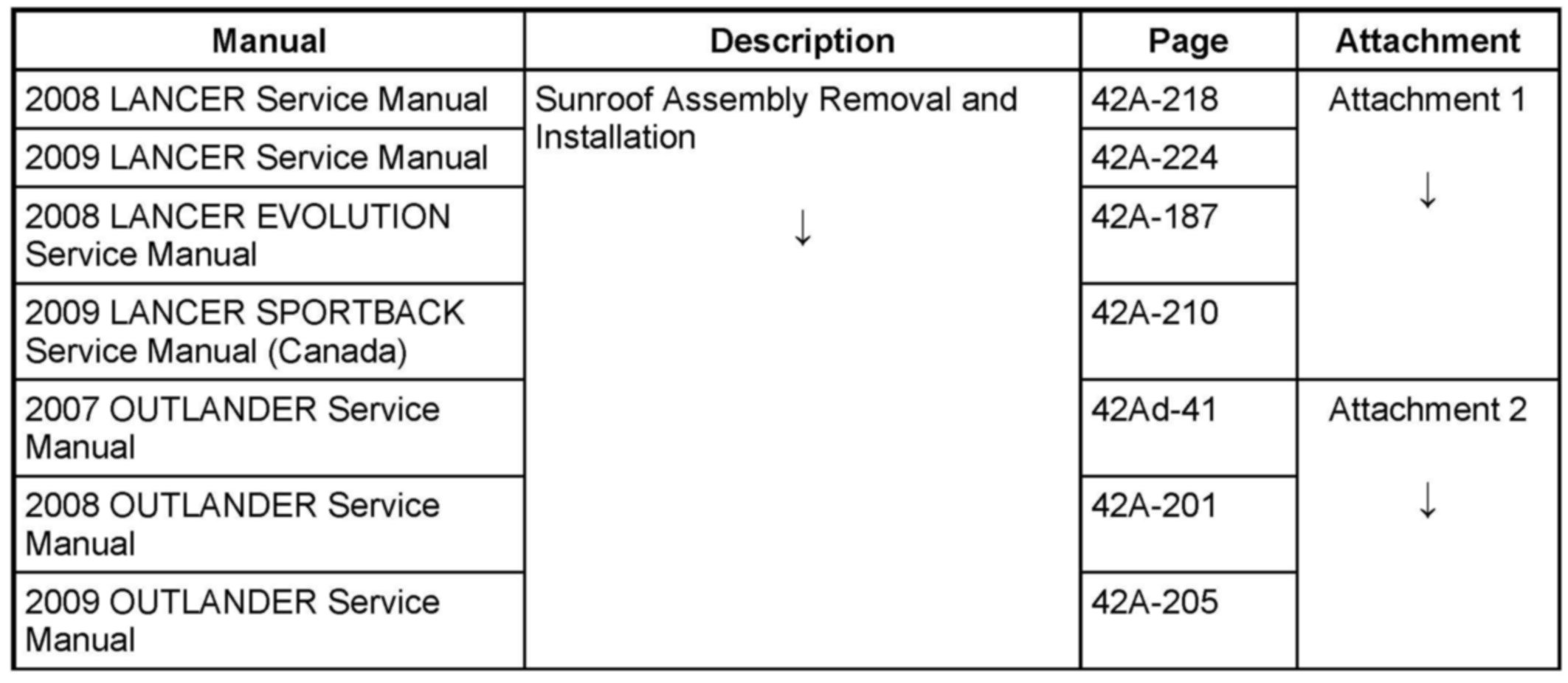

APPLICABLE MANUAL(S)

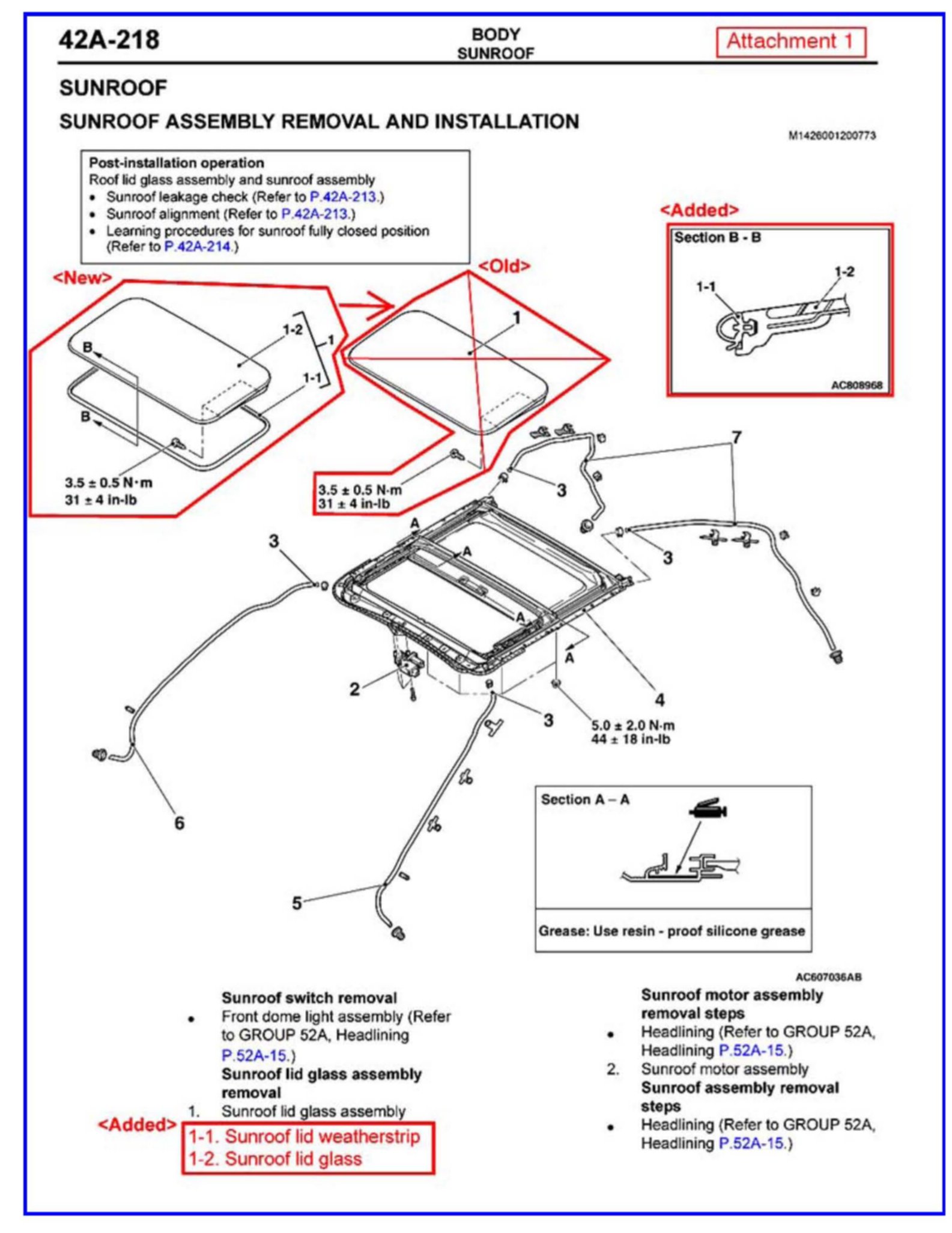

Service Manual Update - Page 42A-218 Attachment 1

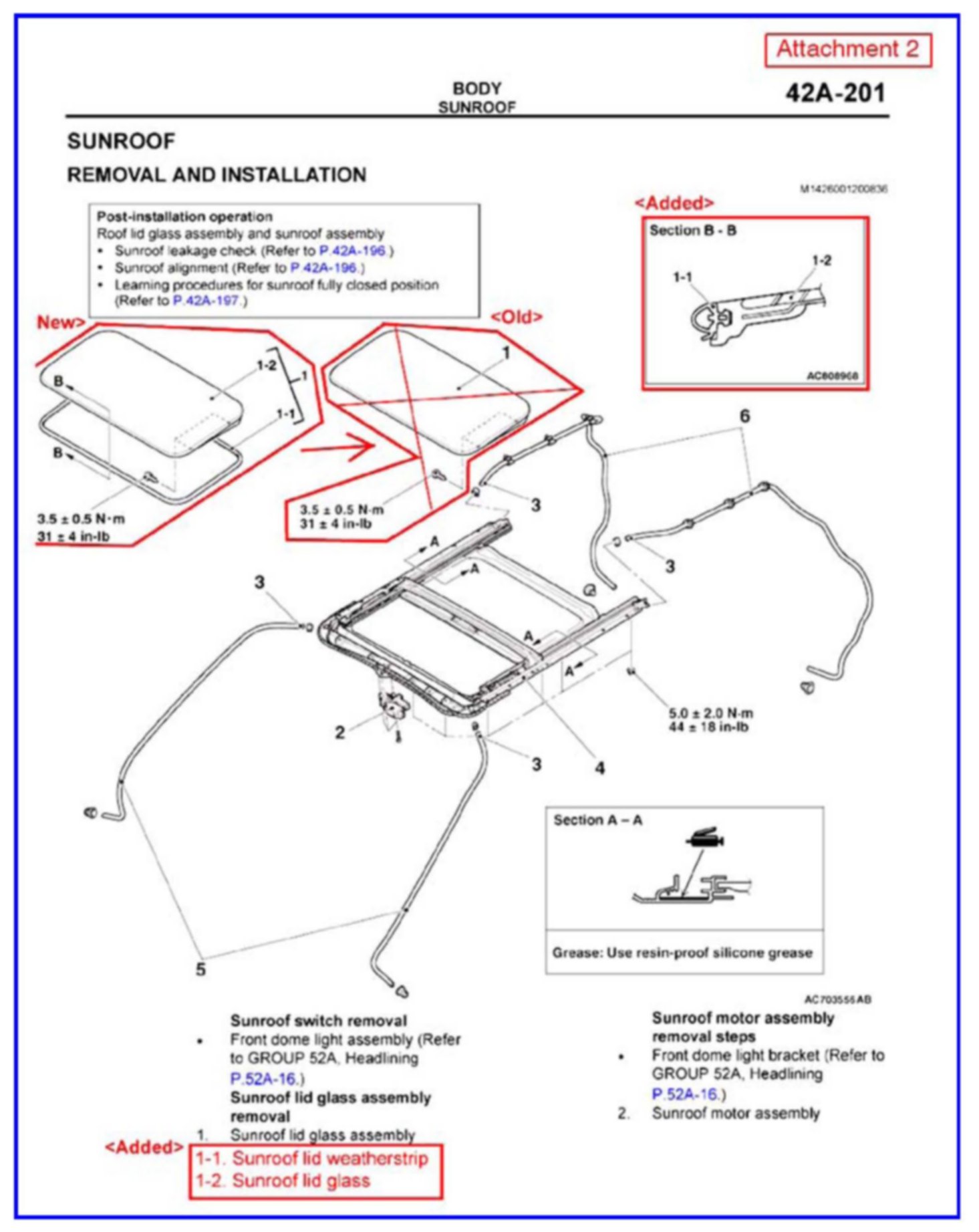

Service Manual Update - Page 42A-201 Attachment 2
