Removal and Replacement

SUNROOF

SUNROOF ASSEMBLY REMOVAL AND INSTALLATION

Post-installation Operation:

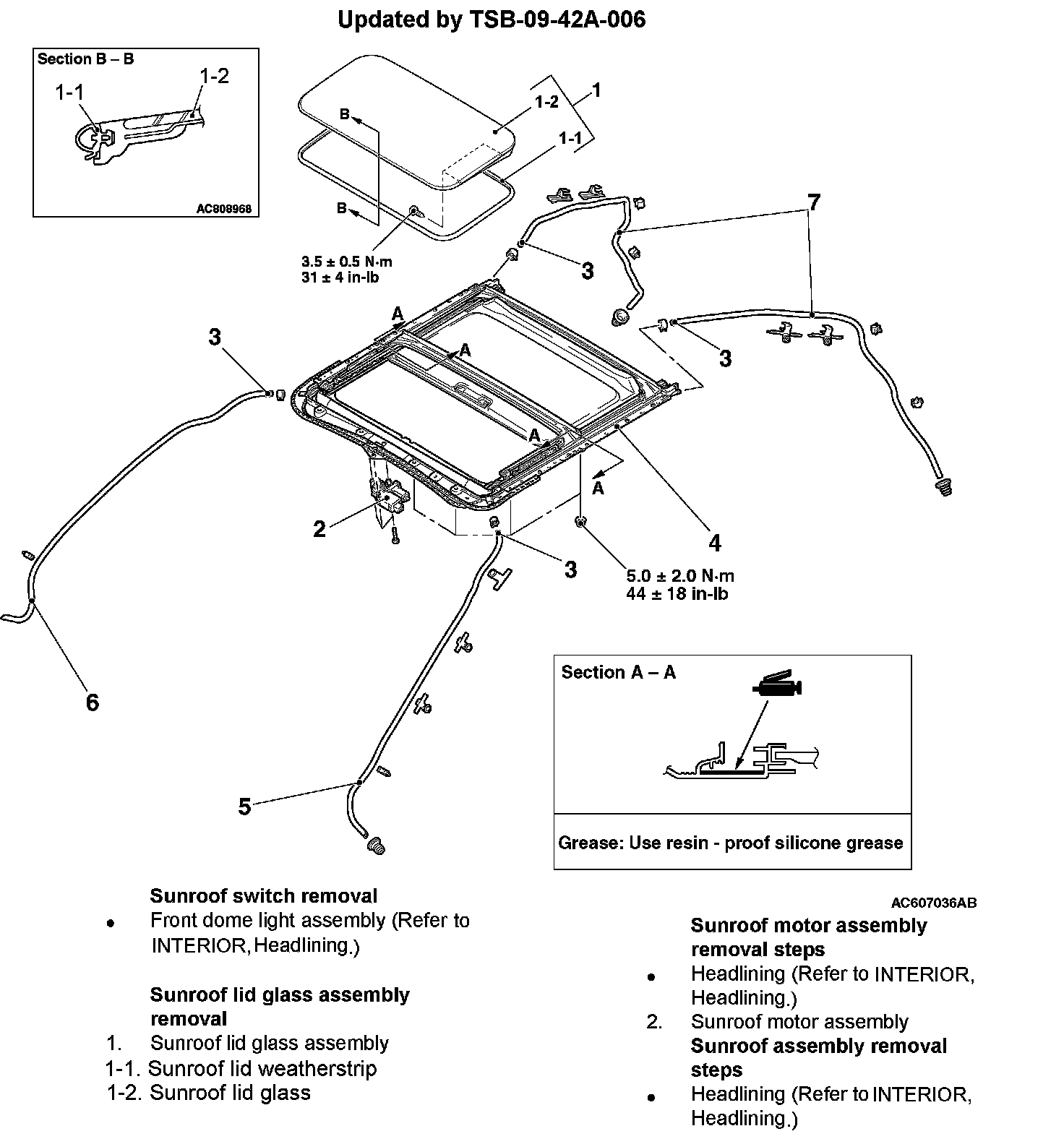

Removal Steps 1-7 (Part 1):

Removal Steps 1-7 (Part 2):

REMOVAL SERVICE POINT

]]A[[ SUNROOF ASSEMBLY REMOVAL

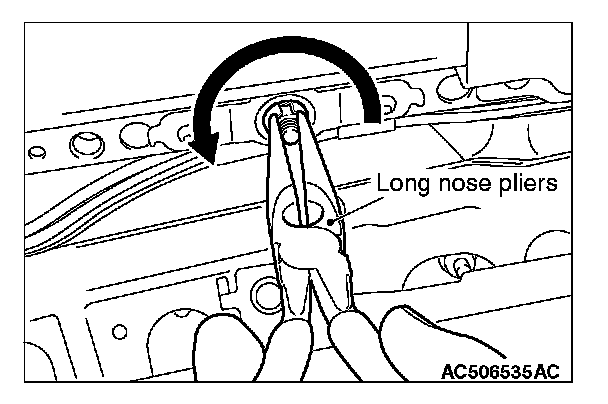

Use a pair of long nose pliers or the like to remove the sunroof assembly while turning it in the direction shown in the figure.

INSTALLATION SERVICE POINT

[[A]] FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION






Install the grommet, and adjust the drain pipe projection as shown.
