Keyless Entry Transmitter: Service and Repair
KEYLESS OPERATION KEYDISASSEMBLY AND ASSEMBLY

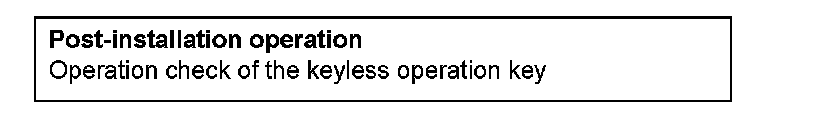

Post-installation Operation:

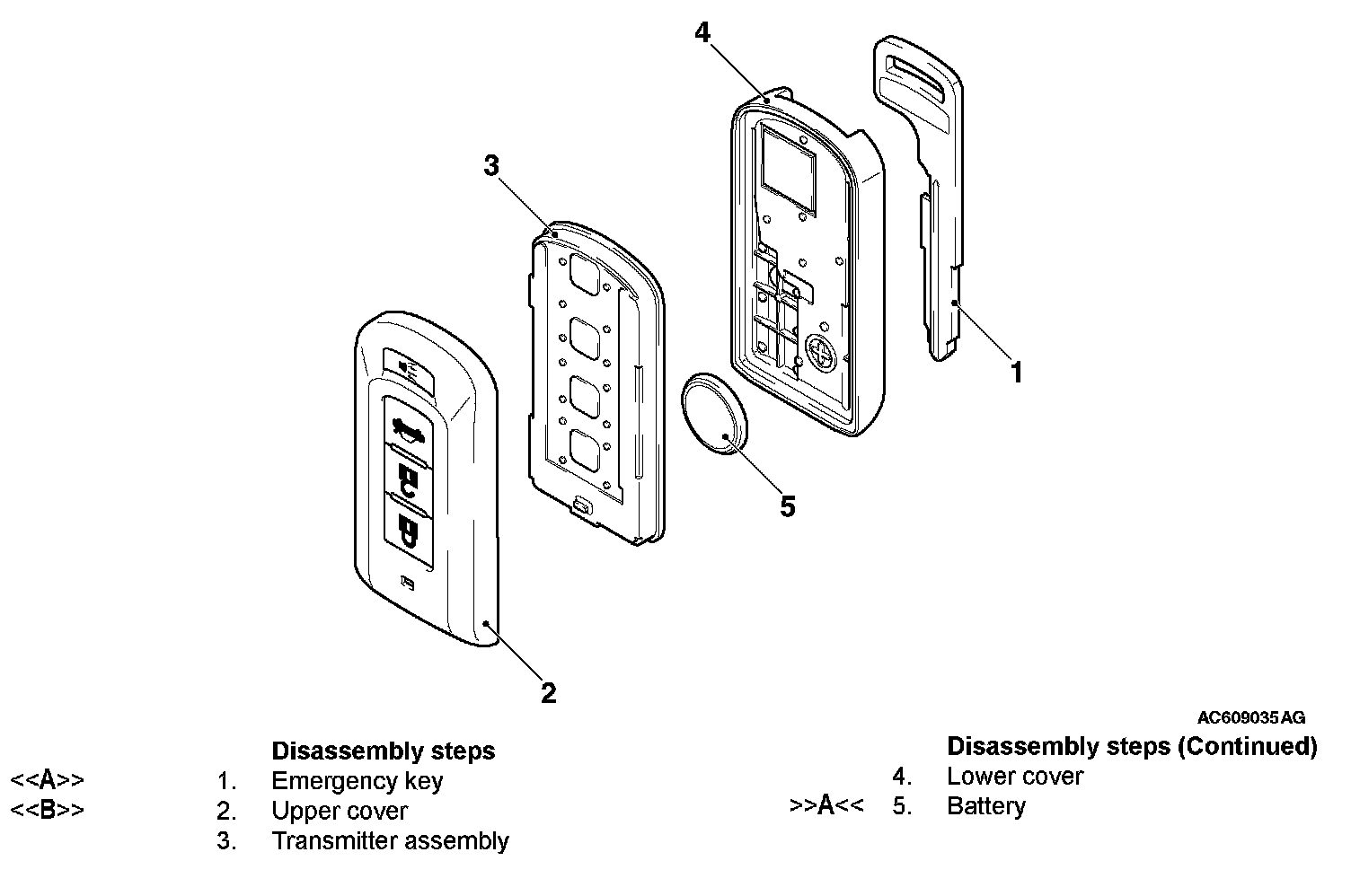

Disassembly Steps 1 - 5:
DISASSEMBLY SERVICE POINTS

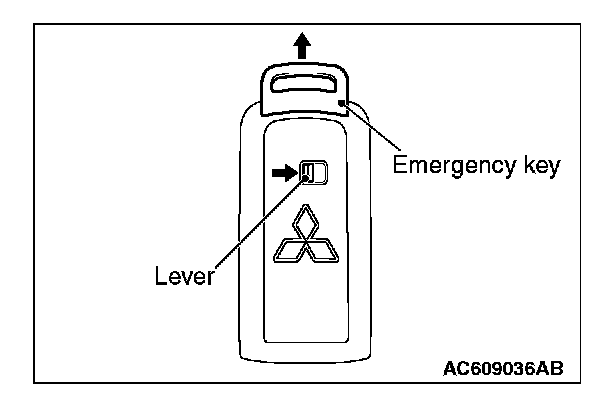

[A] EMERGENCY KEY REMOVAL
With the lever being pressed in the arrow direction of the illustration, pull out the emergency key from the keyless operation key and remove it.
[B] UPPER COVER REMOVAL
CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

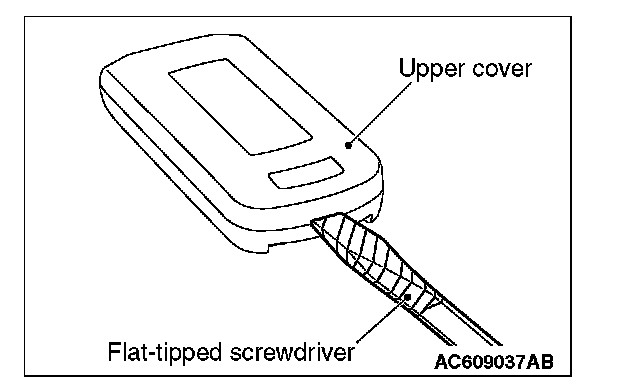

Place a flat-tipped screwdriver wrapped with protective tape as shown in the figure, and lever the keyless operation key to remove.
ASSEMBLY SERVICE POINT
]A[ BATTERY INSTALLATION
CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

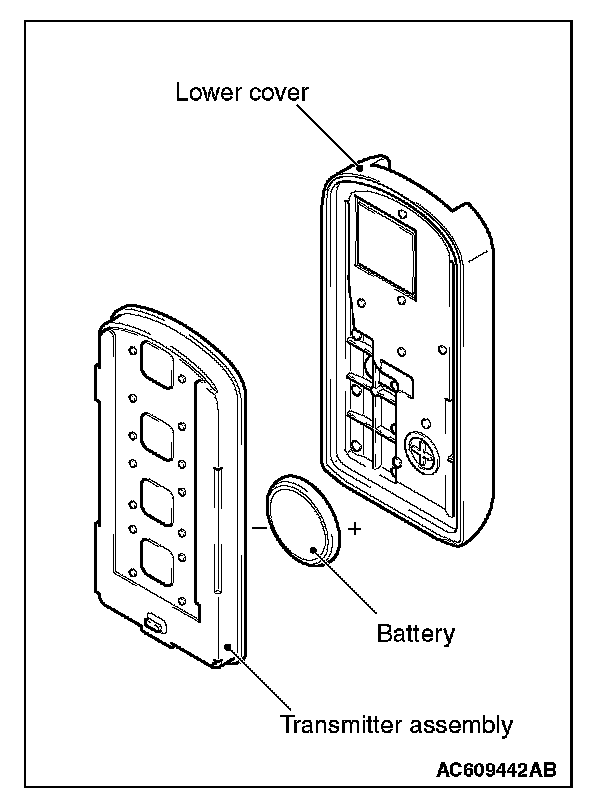

Install a new battery with the positive side facing toward the lower cover.
Replacement battery: Coin-type lithium battery CR2032
