Interior Moulding / Trim: Service and Repair

TRIMS

REMOVAL AND INSTALLATION

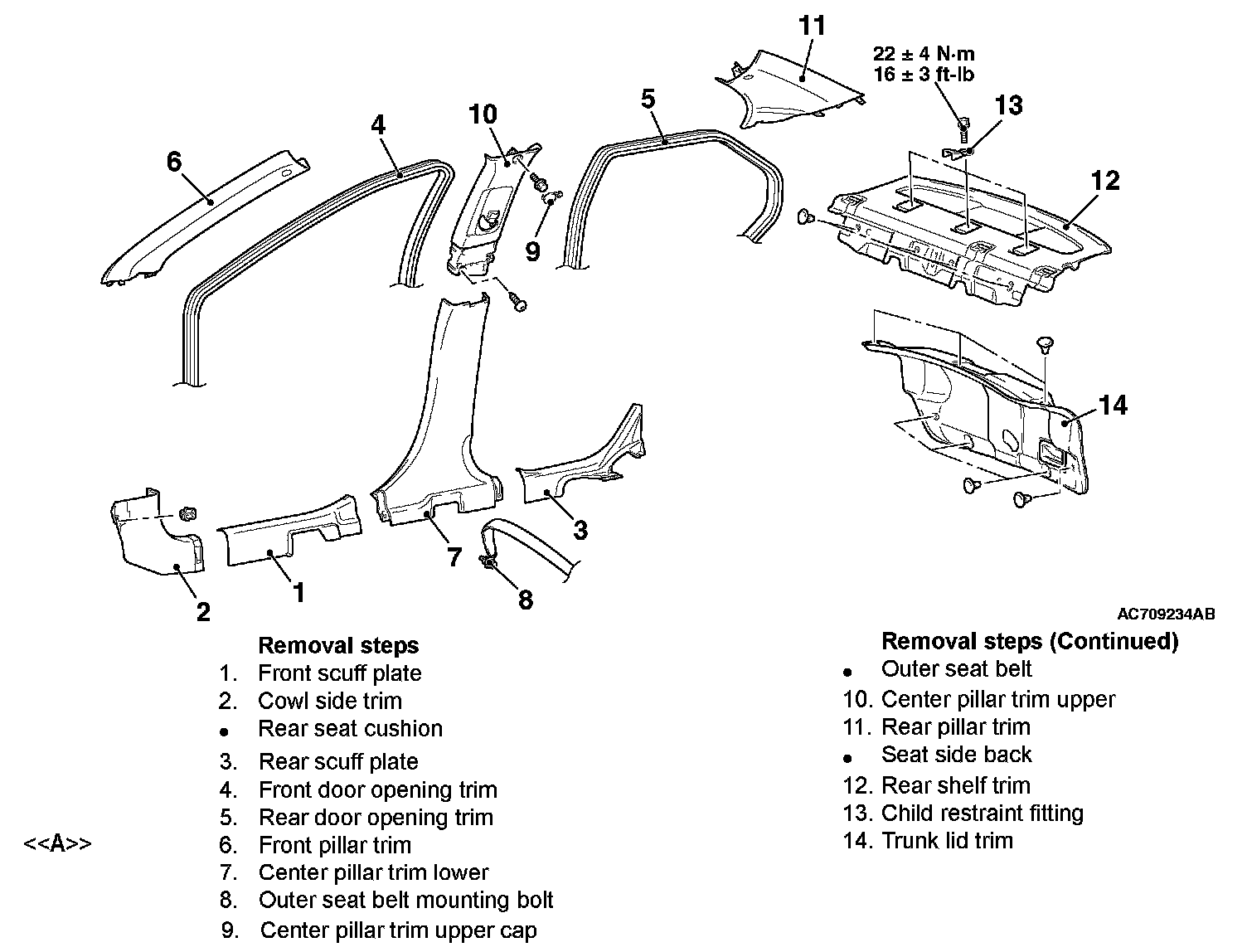

Removal Steps 1-14:

Required Special Tool:
- MB990784: Ornament Remover

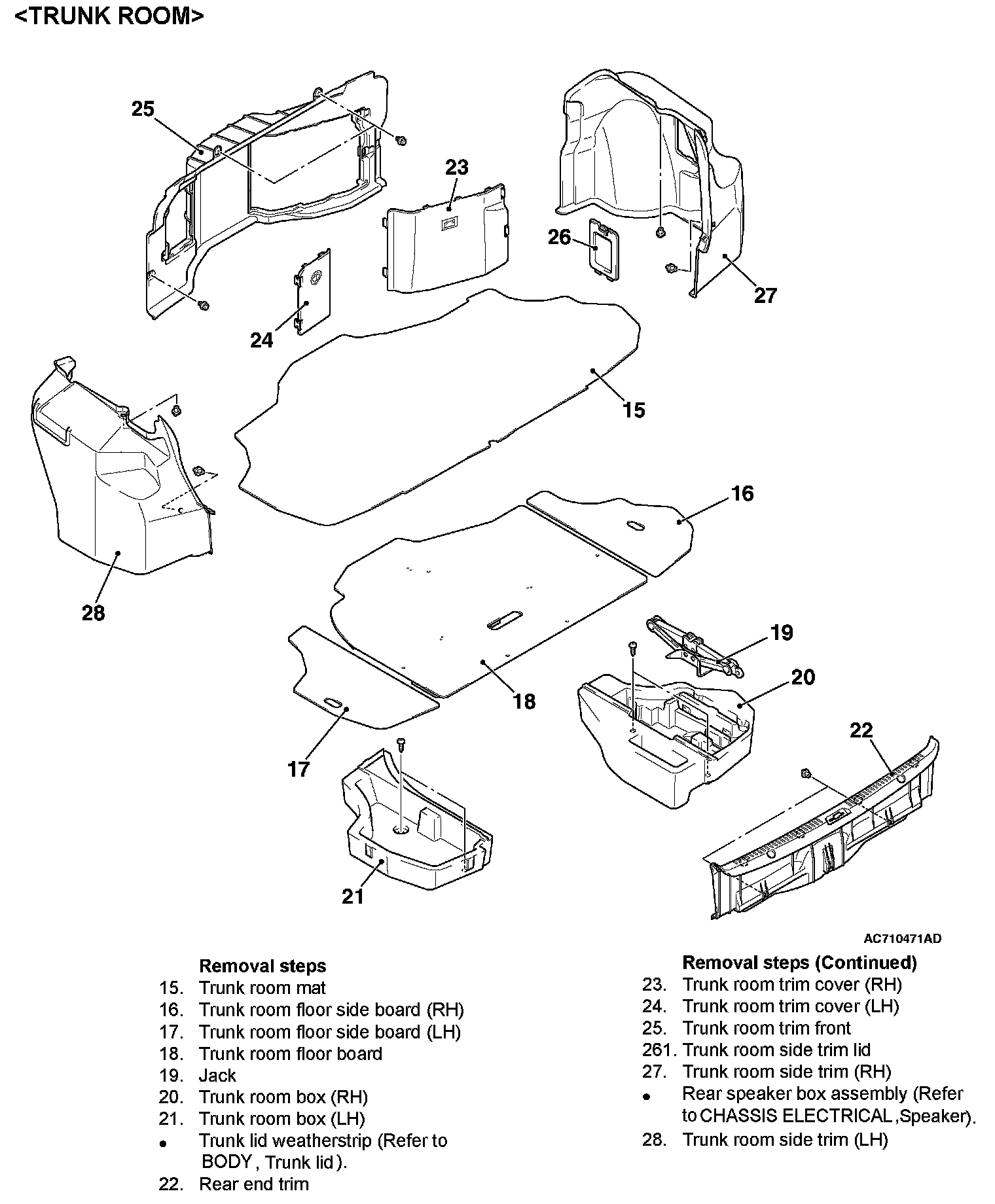

Removal Steps 15-28:

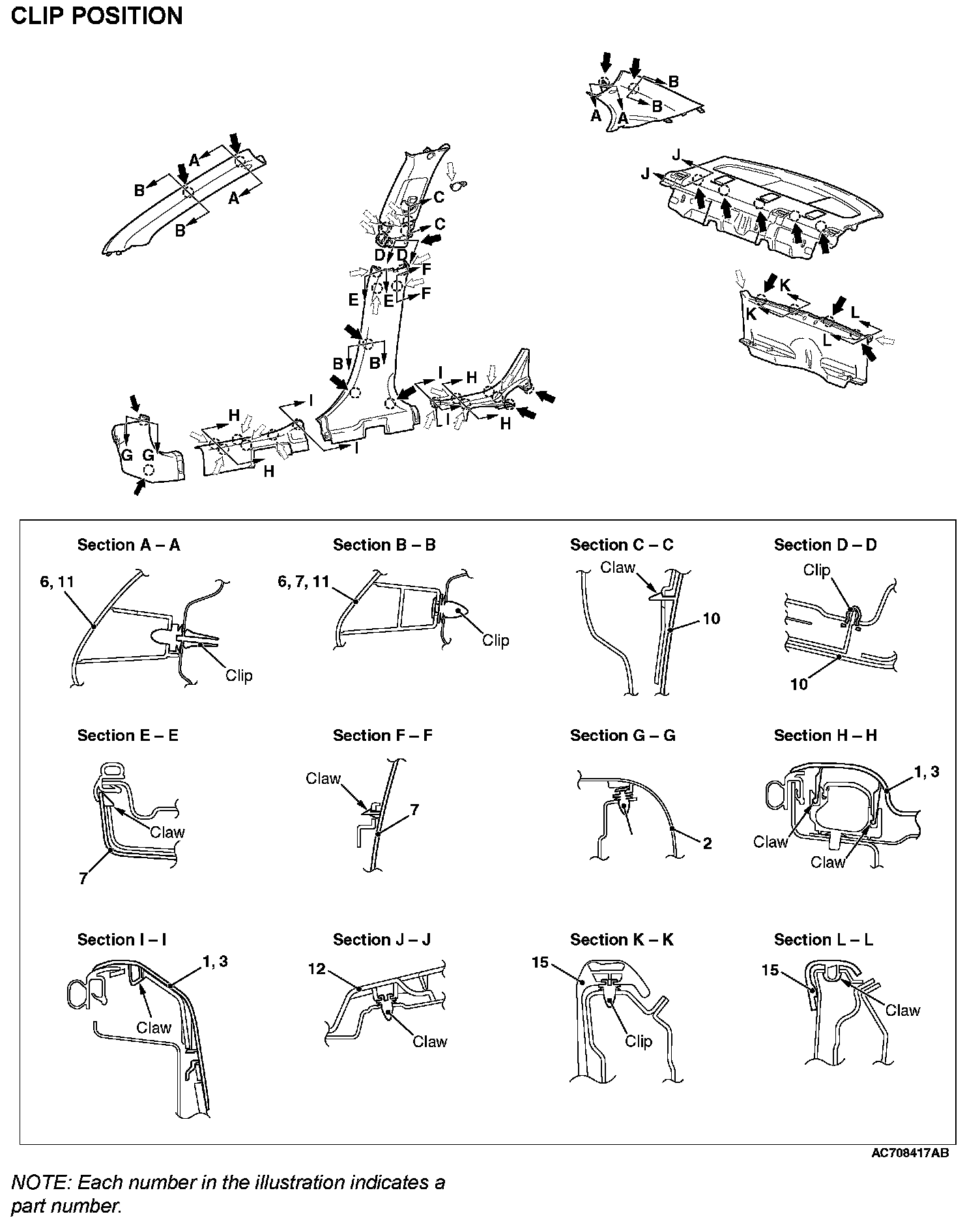

CLIP POSITION






REMOVAL SERVICE POINT

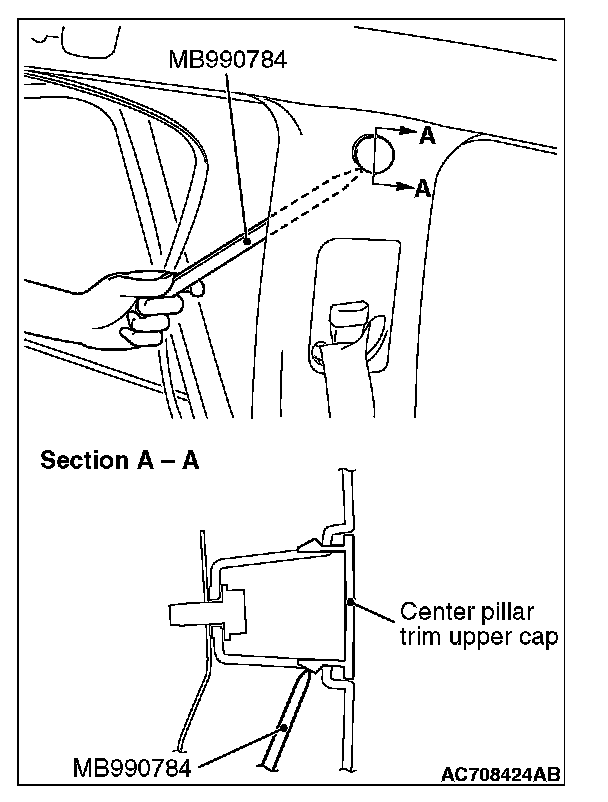

]]A[[ CENTER PILLAR TRIM UPPER CAP REMOVAL






Remove the opening trim. Remove the center pillar trim upper cap by inserting the special tool MB990784 between the center pillar trim upper and body as shown in the illustration.
