Headliner: Service and Repair

HEADLINING

REMOVAL AND INSTALLATION

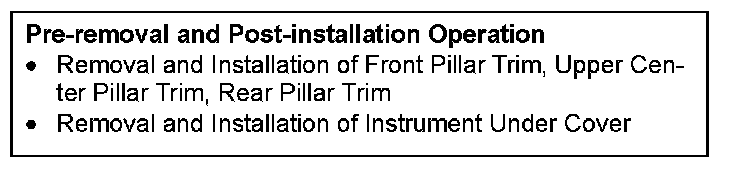

Pre-removal & Post-installation Operation:

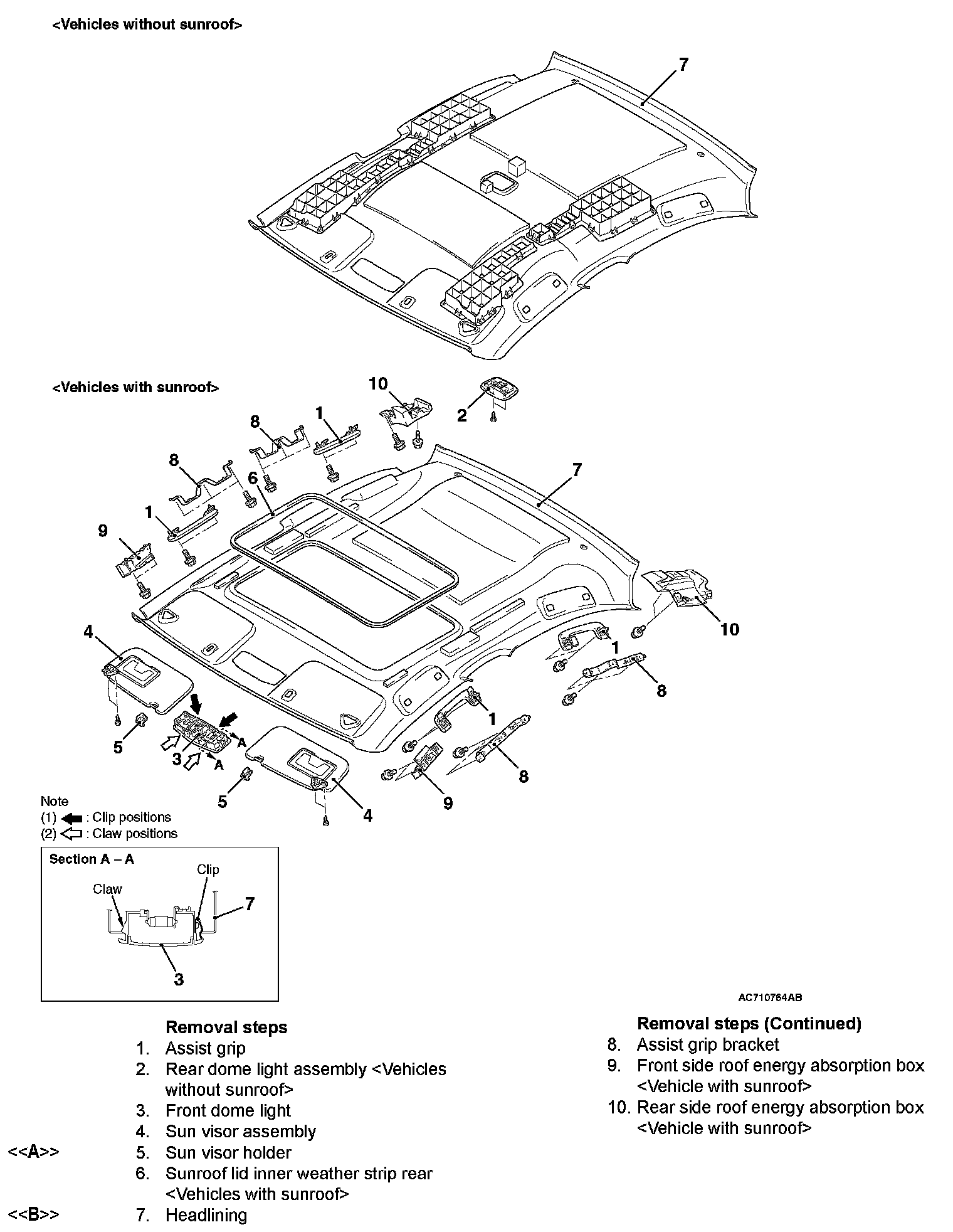

Removal Steps 1-10:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINTS

]]A[[ SUN VISOR HOLDER REMOVAL

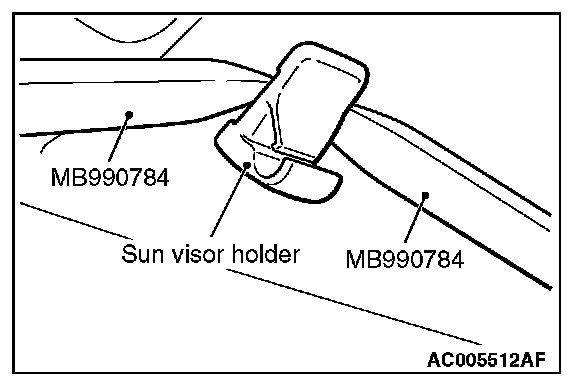

Insert the special tool MB990784 into side claws of the sun visor holder through the both sides of the sun visor holder to remove the hinges.

]]B[[ HEADLINING ASSEMBLY REMOVAL

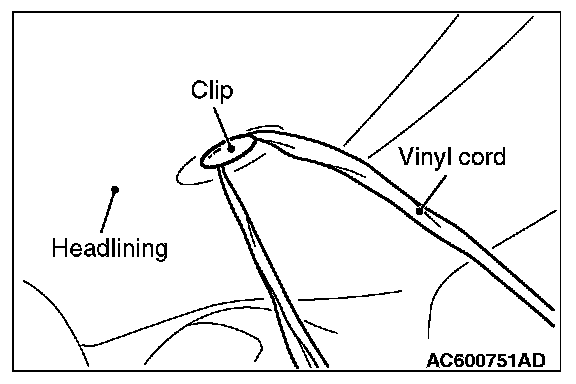

To remove the clip, insert a vinyl cord into a clearance between the clip and the headlining, and pass it around the clip. Then, pull out the clip downwards while pulling the vinyl cord.
