Body - Revised Moulding/Garnish Removal/Installation

No: TSB-08-51-001

DATE: July, 2008

MODEL: See Below

SUBJECT:
REVISED REMOVAL & INSTALLATION STEPS FOR GARNISH & MOLDING - SERVICE MANUAL REV.

PURPOSE

The removal and installation instructions for garnishes and moldings have been modified in the applicable Service Manuals. This Technical Service Bulletin provides those modified procedures.

AFFECTED VEHICLE(S)
2008-09 Lancer
2008 Lancer Evolution
2007-08 Outlander

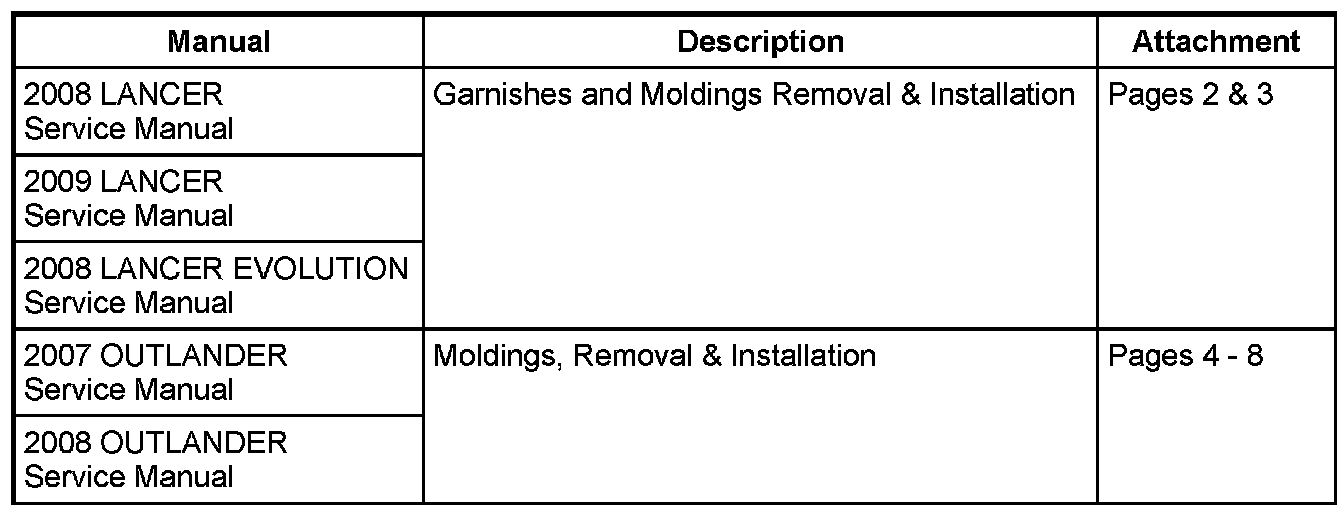

APPLICABLE MANUAL(S)

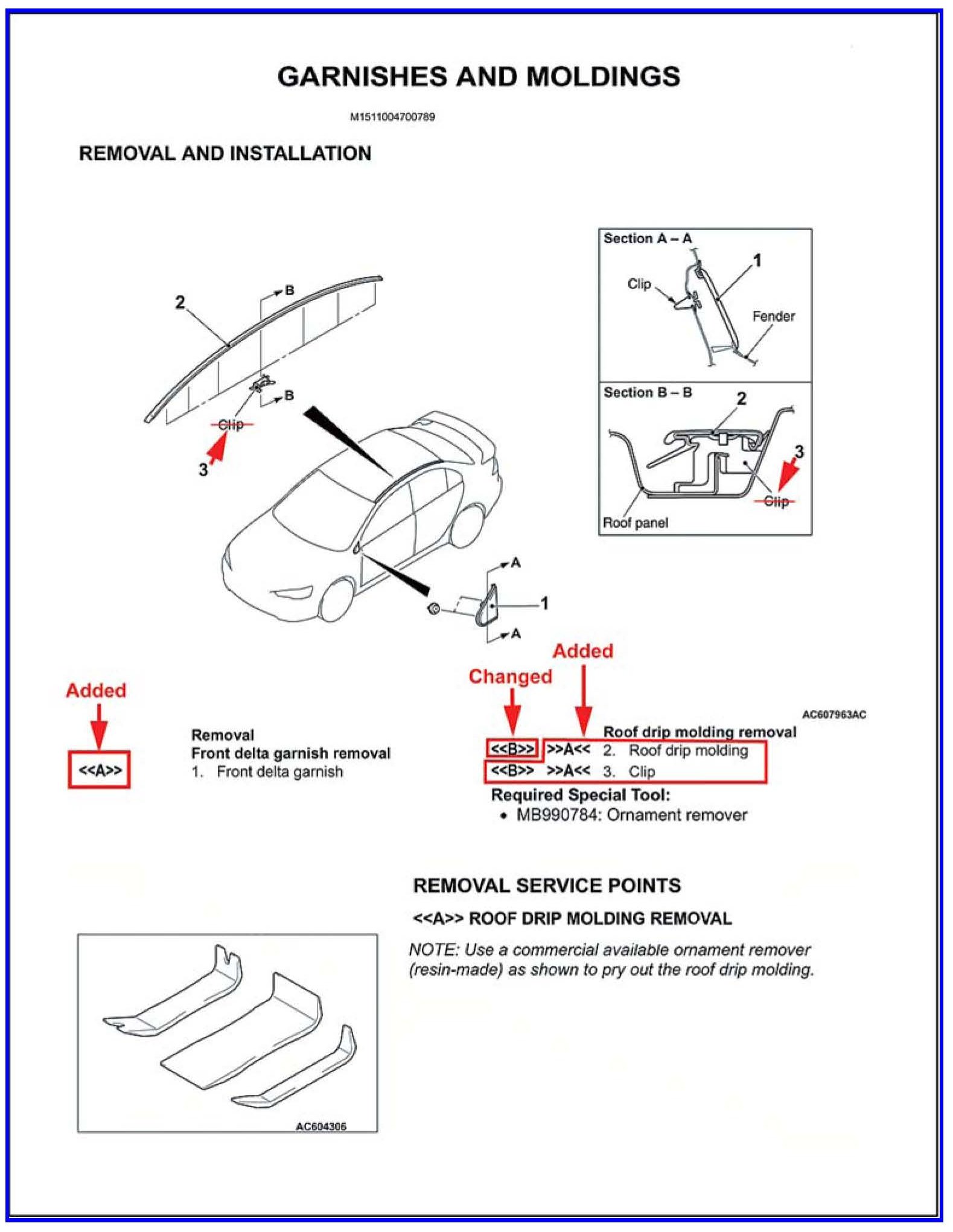

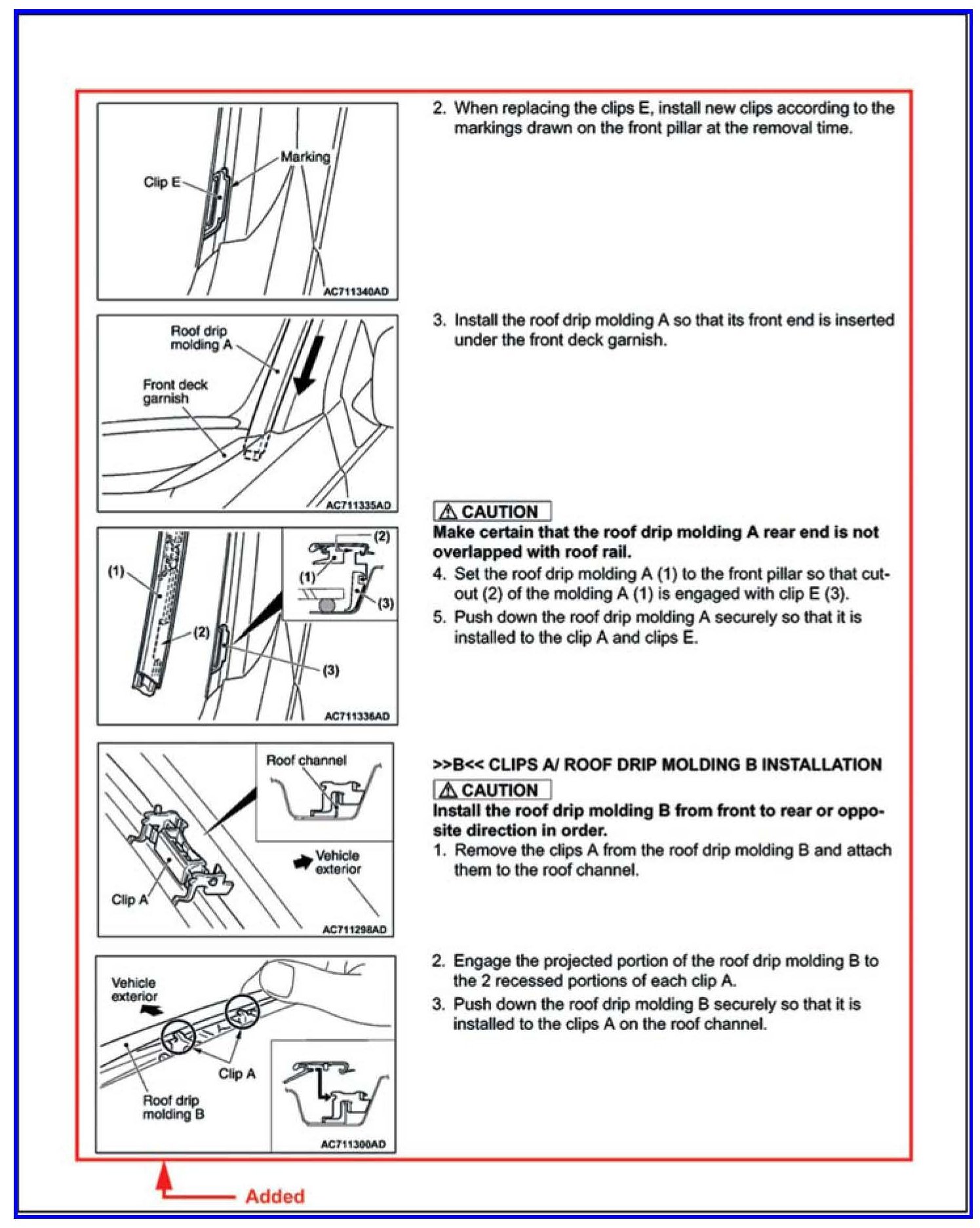

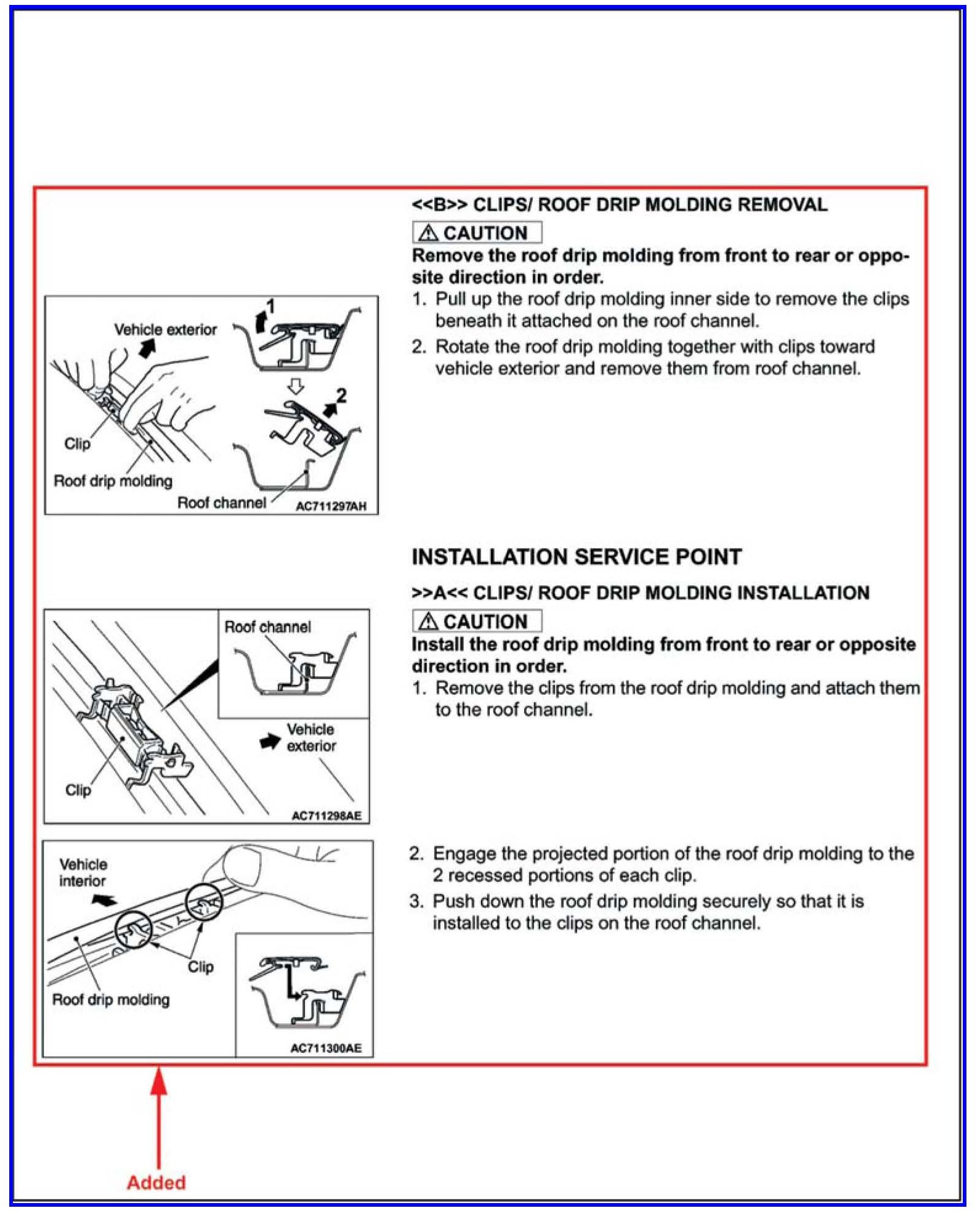

GARNISHES AND MOLDINGS

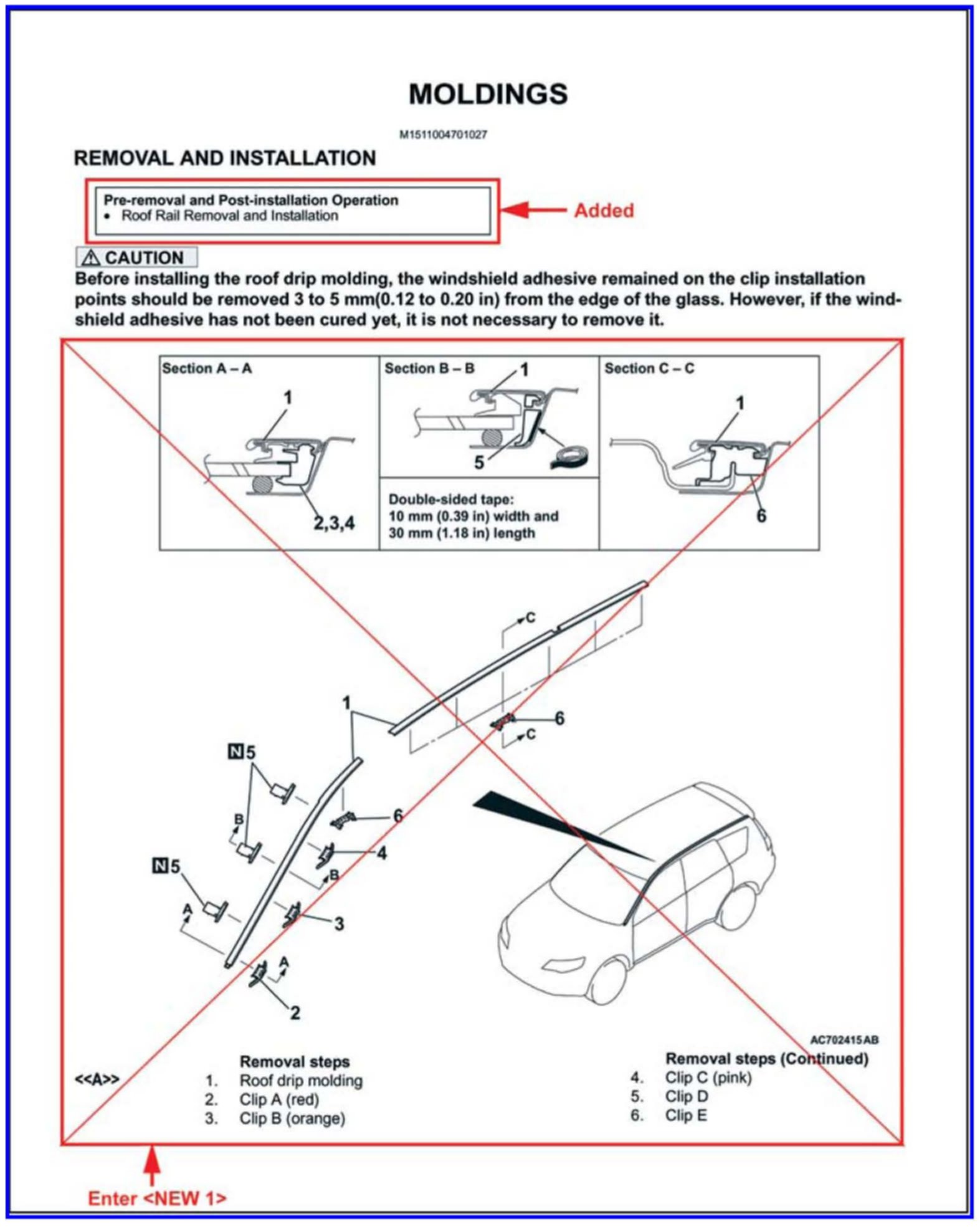

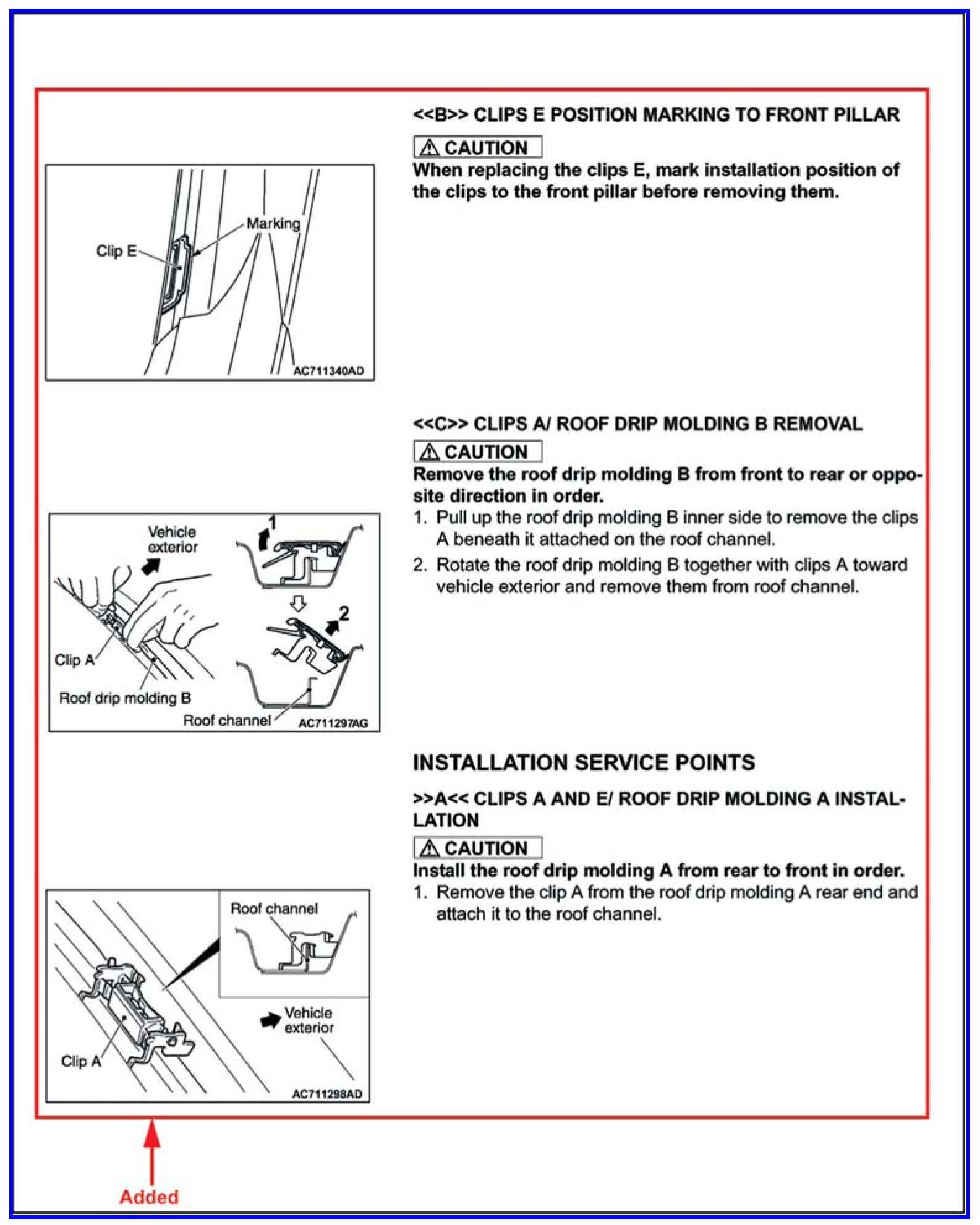

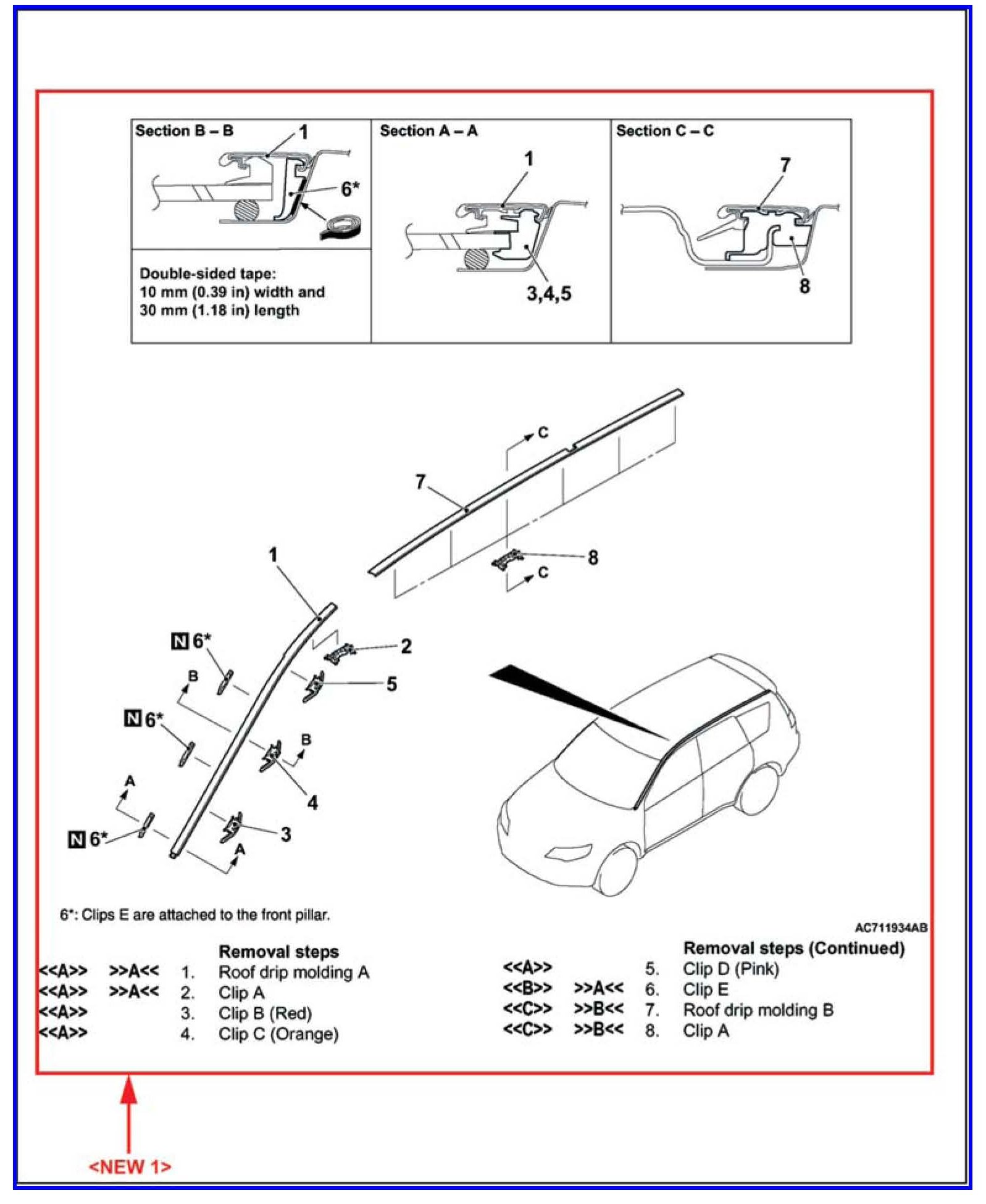

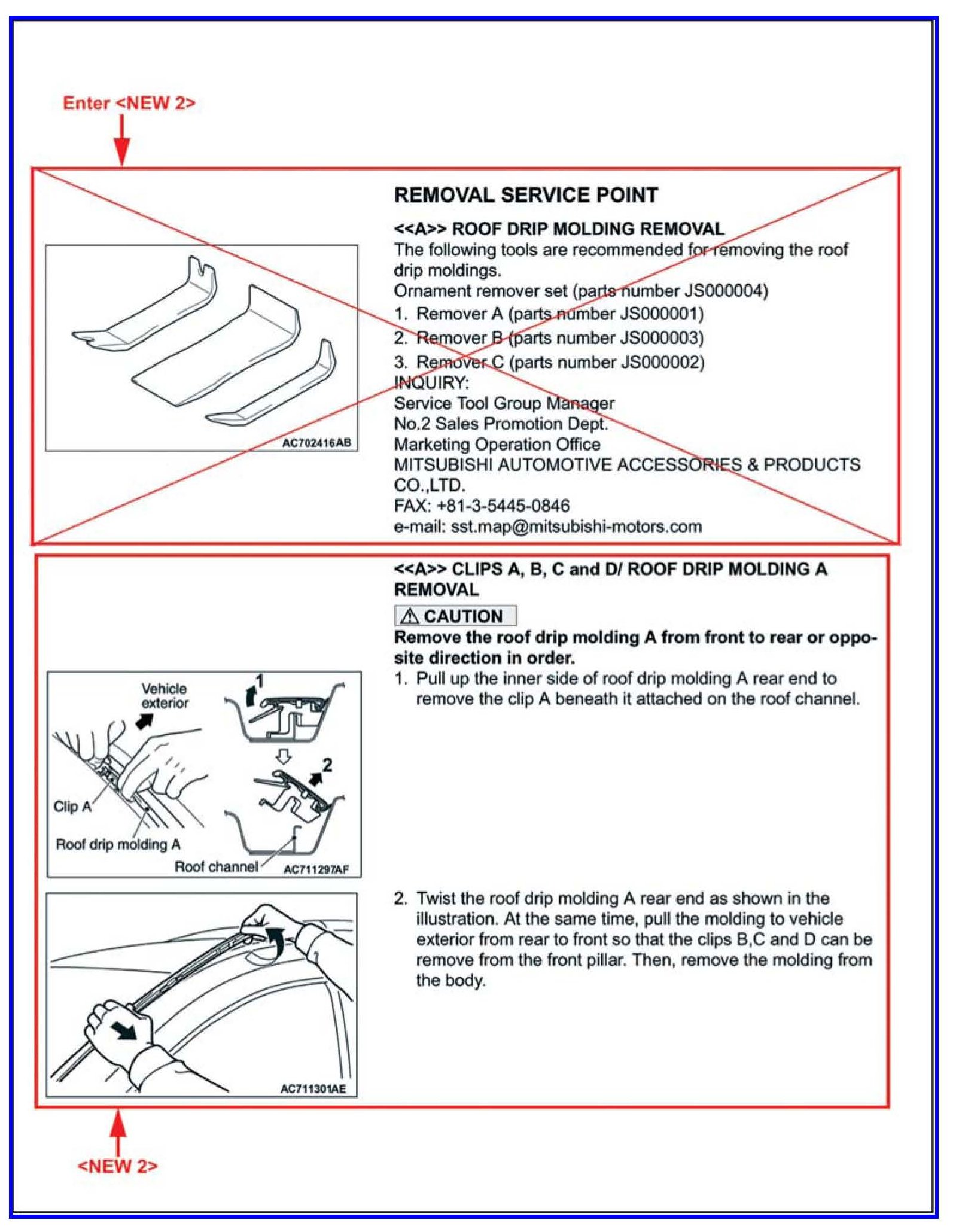

MOLDINGS
