Protector Film

PROTECTOR FILM

REMOVAL AND INSTALLATION

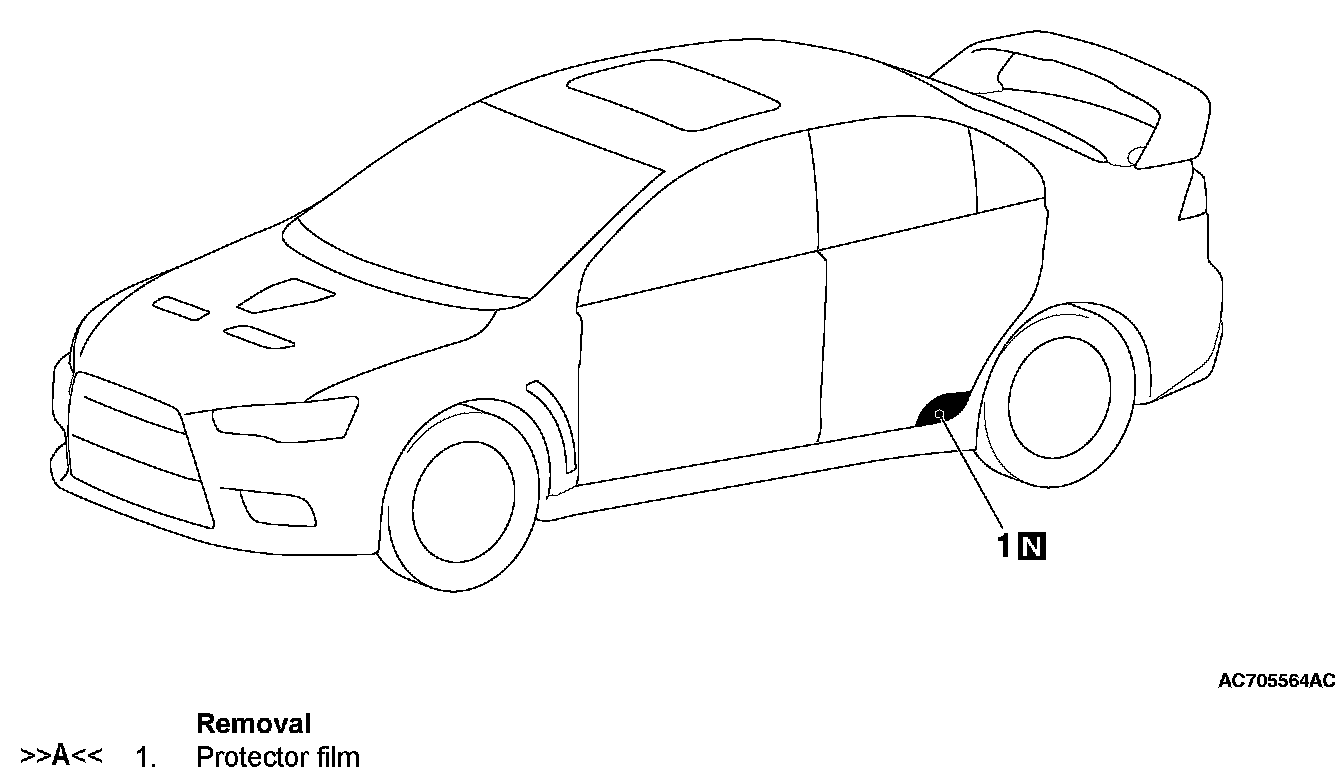

Removal Step 1:

INSTALLATION SERVICE POINT

[[A]] PROTECTOR FILM INSTALLATION

Installation point






CAUTION:
- The ambient temperature should be 20 to 38°C (68 - 100°F). Ensure that the working area is clean.
- If ambient temperature is less than 20°C (60°F), heat the protector film and application surface to a temperature of 20 to 30°C (68 - 86°F).
- Be careful that air bubbles are not formed under the protector film.

Installation procedure

1. Use 3M(TM) AAD Part number 8906 or equivalent to clean the protector film installation surfaces on the body.
2. Remove backing paper from the protector film, and apply the film to the specified position.
3. Remove the application film from the protector film surface.
