Garnishes and Moldings
*This document has been updated per manufacturer TSB #08-51-001GARNISHES AND MOLDINGS

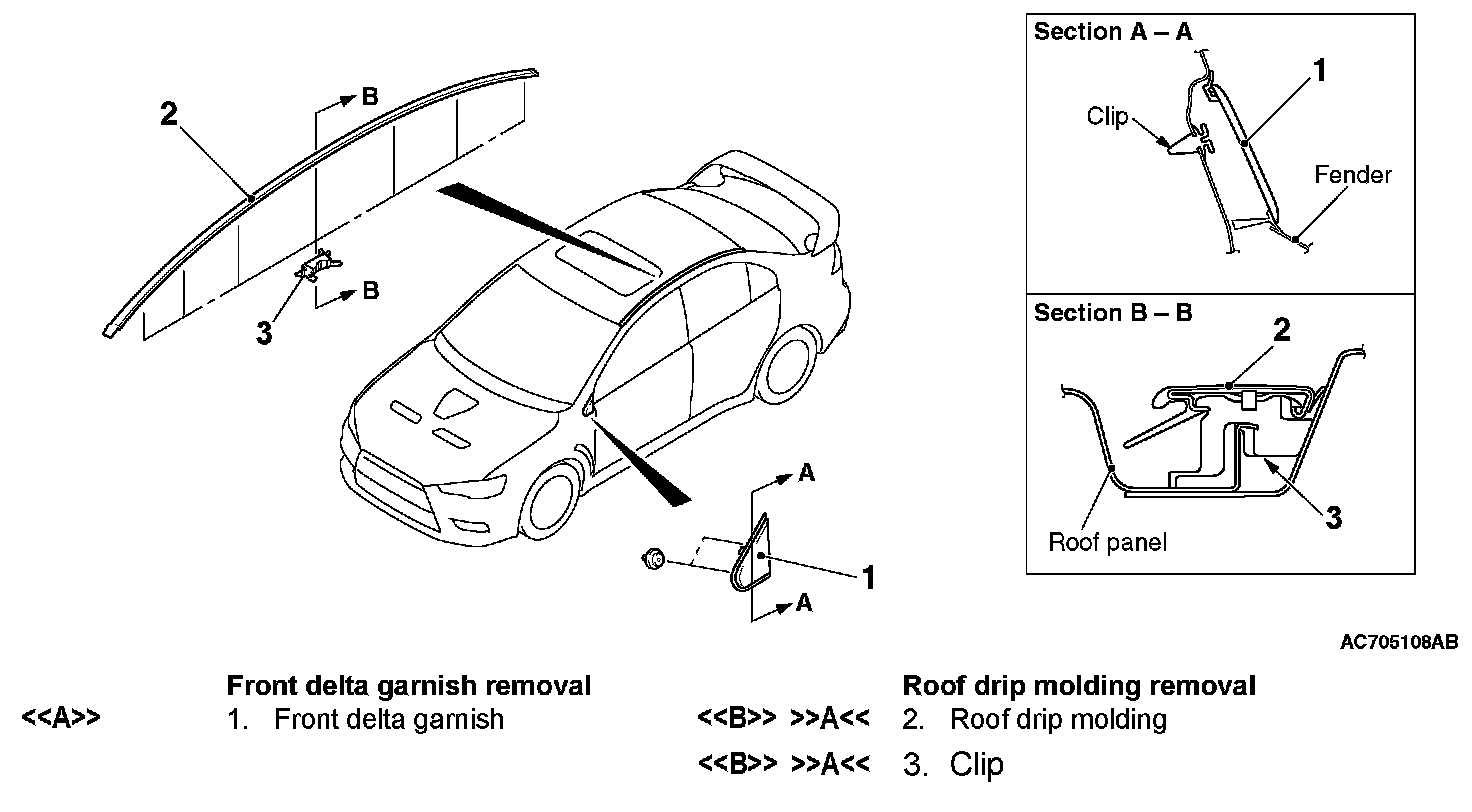

Removal Steps 1-2:
Required Special Tool:
- MB990784: Ornament remover
REMOVAL SERVICE POINTS
[[A]] ROOF DRIP MOLDING REMOVAL
NOTE: Use a commercial available ornament remover (resin-made) as shown to pry out the roof drip moulding.
[[B]] CLIPS/ROOF DRIP MOLDING REMOVAL
CAUTION: Remove the roof drip molding from front to rear or opposite direction in order.

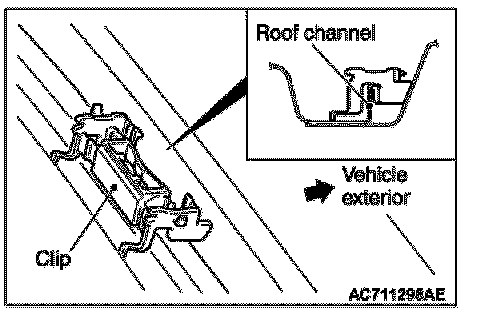

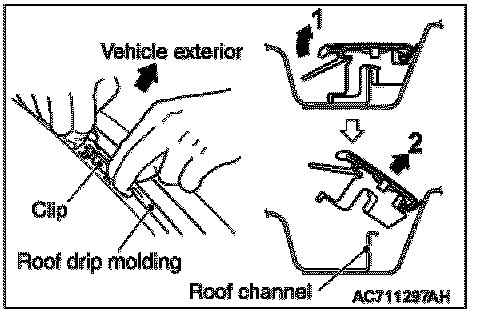

1. Pull up the roof drip molding inner side to remove the clips beneath it attached on the roof channel.
2. Rotate the roof drip molding together with clips toward vehicle exterior and remove them from roof channel.
INSTALLATION SERVICE POINT
]]A[[ CLIPS/ROOF DRIP MOLDING INSTALLATION
CAUTION: Remove the roof drip molding from front to rear or opposite direction in order.

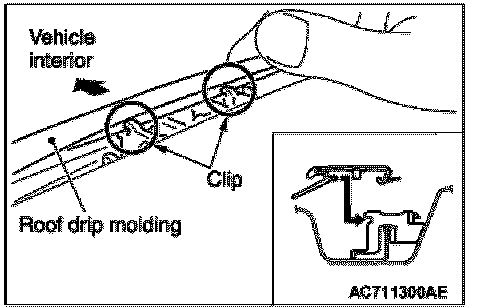

1. Remove the clips from the roof drip molding and attach them to the roof channel
2. Engage the projected portion of the roof drip molding to the 2 recessed portions of each clip.
3. Push down the roof drip molding securely so that it is installed to the clips on the roof channel.
