Symptom Related Diagnostic Procedures

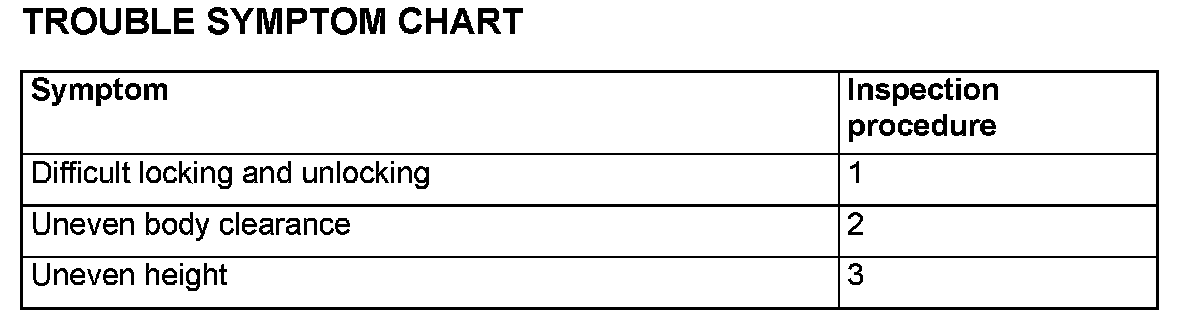

TROUBLE SYMPTOM CHART

Trouble Symptom Chart:

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult Locking and Unlocking

DIAGNOSIS

STEP 1. Check the release cable routing condition.

Q: Is the release cable routing condition good?

YES : Go to Step 3.

NO : Repair the release cable routing, then go to Step 2.

STEP 2. Check the engagement of the trunk lid latch and trunk lid striker.

Q: Are the trunk lid latch and trunk lid striker engaged correctly?

YES : Then go to Step 3.

NO : Adjust the trunk lid striker.

STEP 3. Retest the system.

Q: Does the trunk lid lock operate easily?

YES : The procedure is complete.

NO : Return to Step 1.

INSPECTION PROCEDURE 2: Uneven Body Clearance

DIAGNOSIS

STEP 1. Check the clearance around the trunk lid..

Q: Are the apertures between the trunk lid and the adjacent body panels aligned correctly?

YES : Then go to Step 2.

NO : Adjust the trunk lid panel assembly.

STEP 2. Retest the system.

Q: Are the clearances between the body panels even?

YES : The procedure is complete.

NO : Return to Step 1.

INSPECTION PROCEDURE 3: Uneven Height

DIAGNOSIS

STEP 1. Check the trunk lid height.

Q: Is the trunk lid hinge height proper?

YES : Then go to Step 2.

NO : Adjust the trunk lid hinge.

STEP 2. Retest the system.

Q: Are the trunk lid and body height even?

YES : The procedure is complete.

NO : Return to Step 1.
