Removal and Replacement

HOOD

HOOD REMOVAL AND INSTALLATION

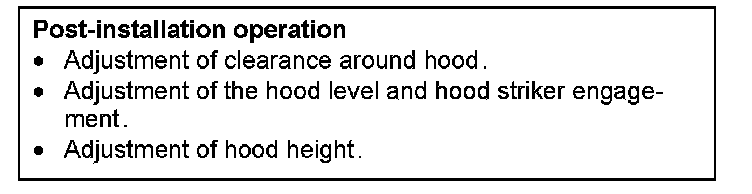

Post-installation Operation:

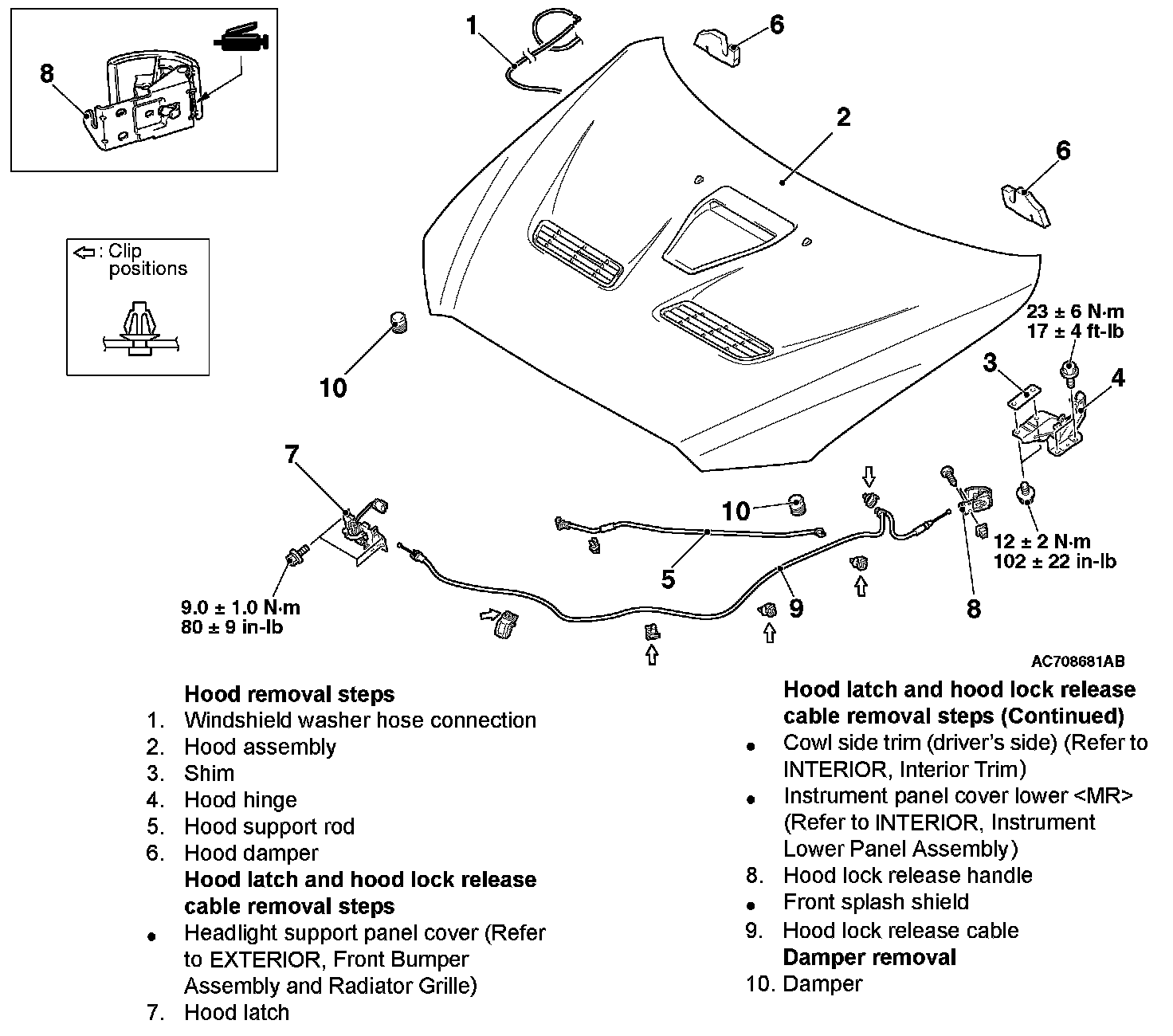

Removal Steps 1-10:

REMOVAL SERVICE POINTS

]]A[[ HOOD AIR OUTLET GARNISH REMOVAL






Using 6-inch socket wrench, push out the hood air outlet garnish assembling clips.

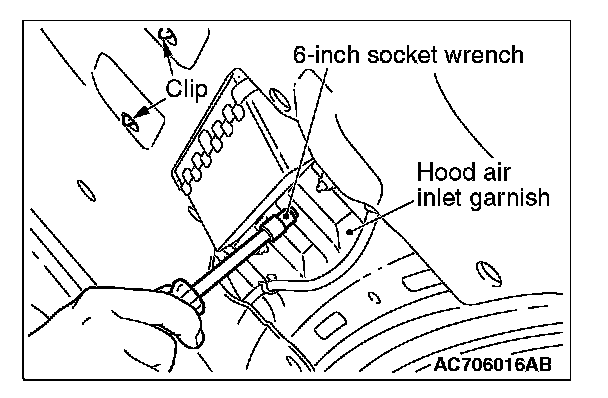

]]B[[ HOOD AIR INLET GARNISH REMOVAL






Using 6-inch socket wrench, push out the hood air inlet garnish assembling clips.
