Rear Door: Service and Repair

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

Post-installation Operation:

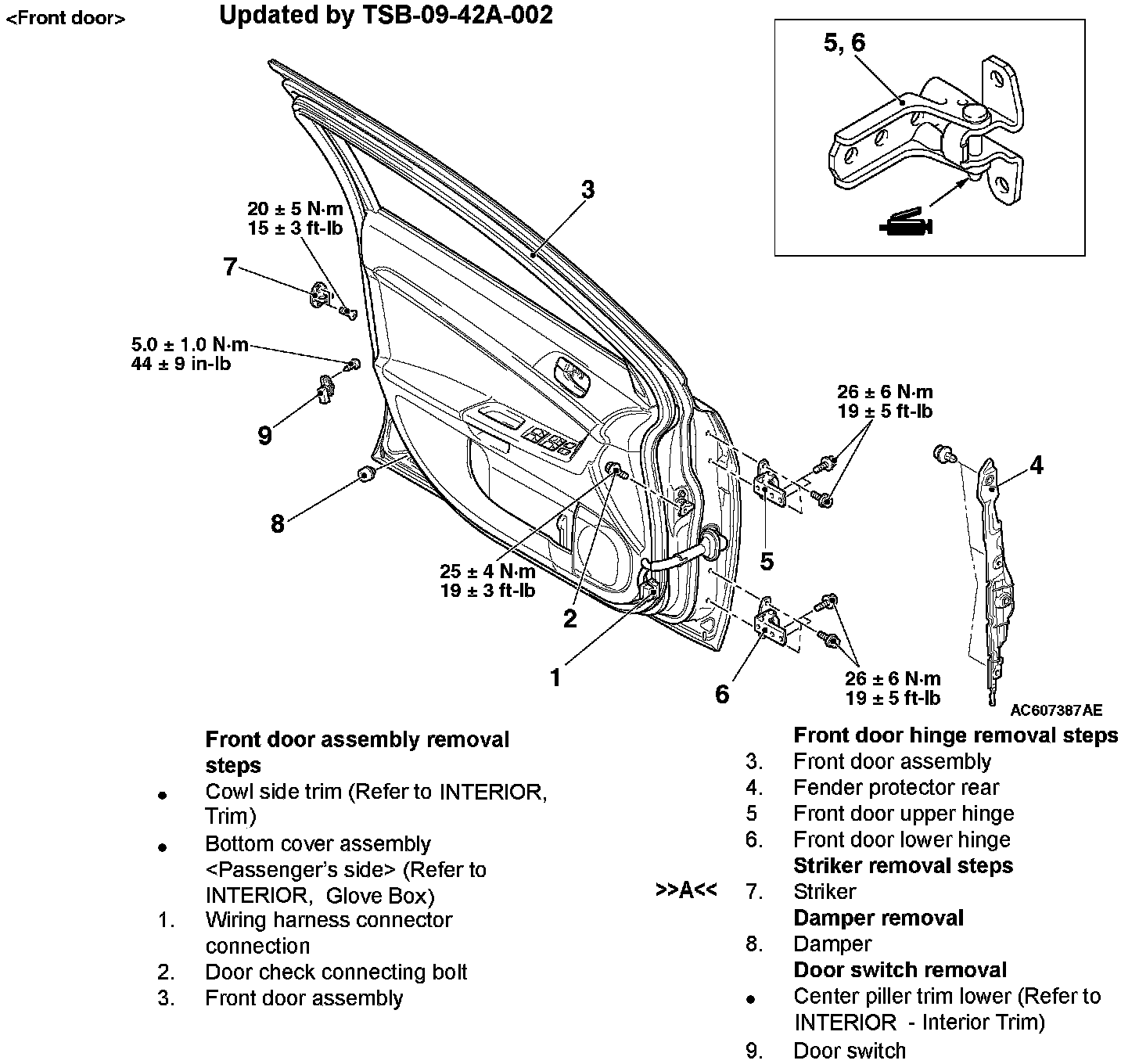

Removal Steps 1-9:

Removal Steps 1-8:

INSTALLATION SERVICE POINT

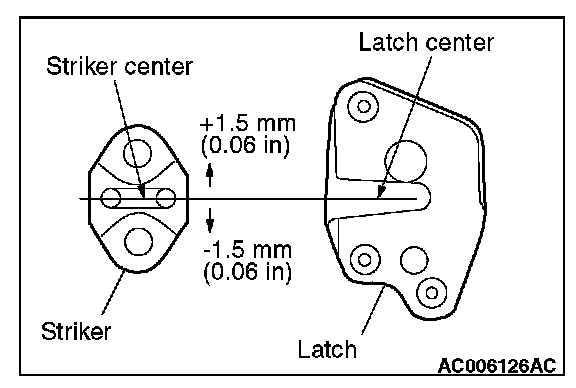

[[A]] STRIKER INSTALLATION






Align the center of the striker and latch within ±1.5 mm (0.06 inch), and install.
