Rear Door Panel: Service and Repair

DOOR TRIM

REMOVAL AND INSTALLATION

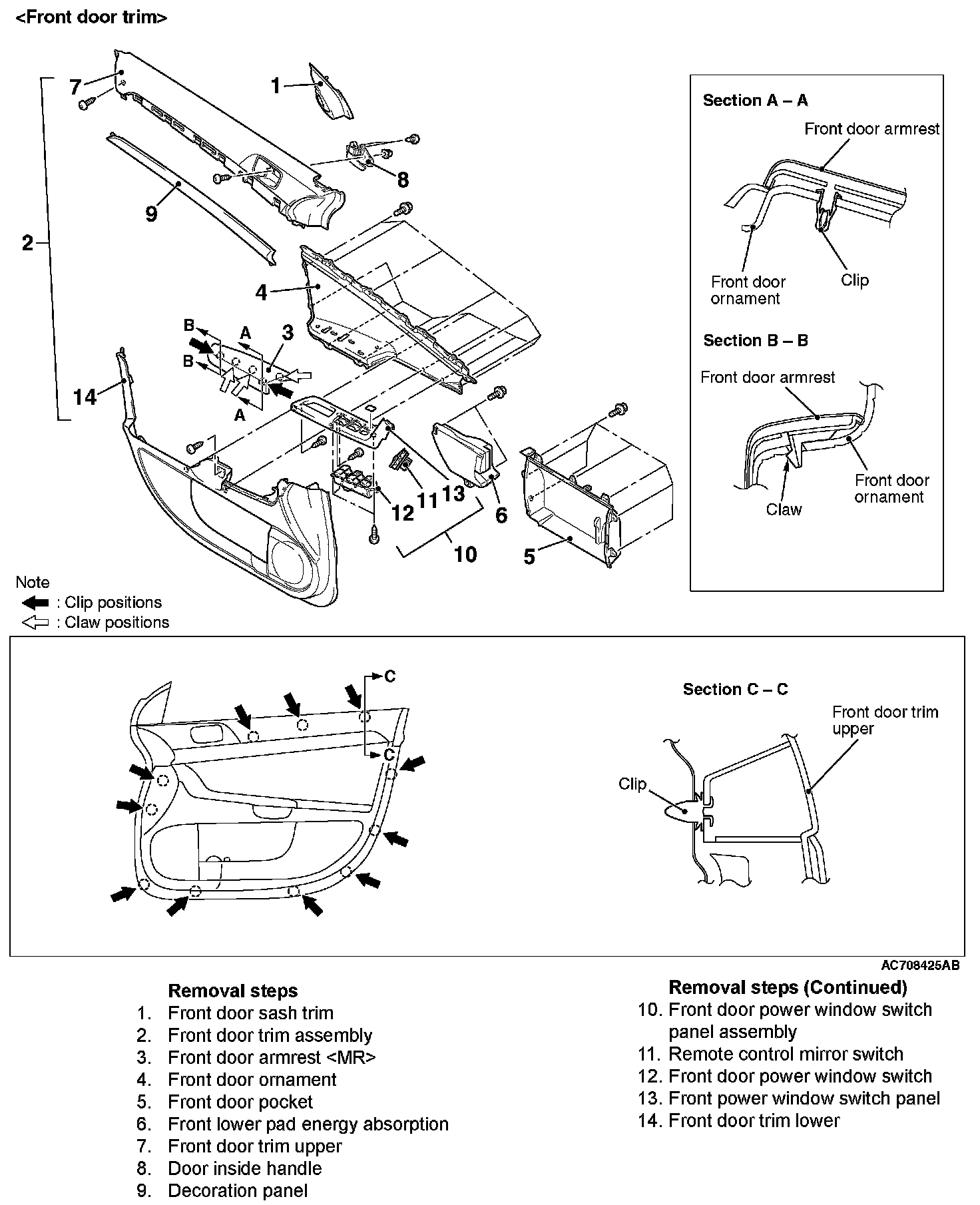

Removal Steps 1-14:






Required Special Tool:
- MB990784: Ornament Remover

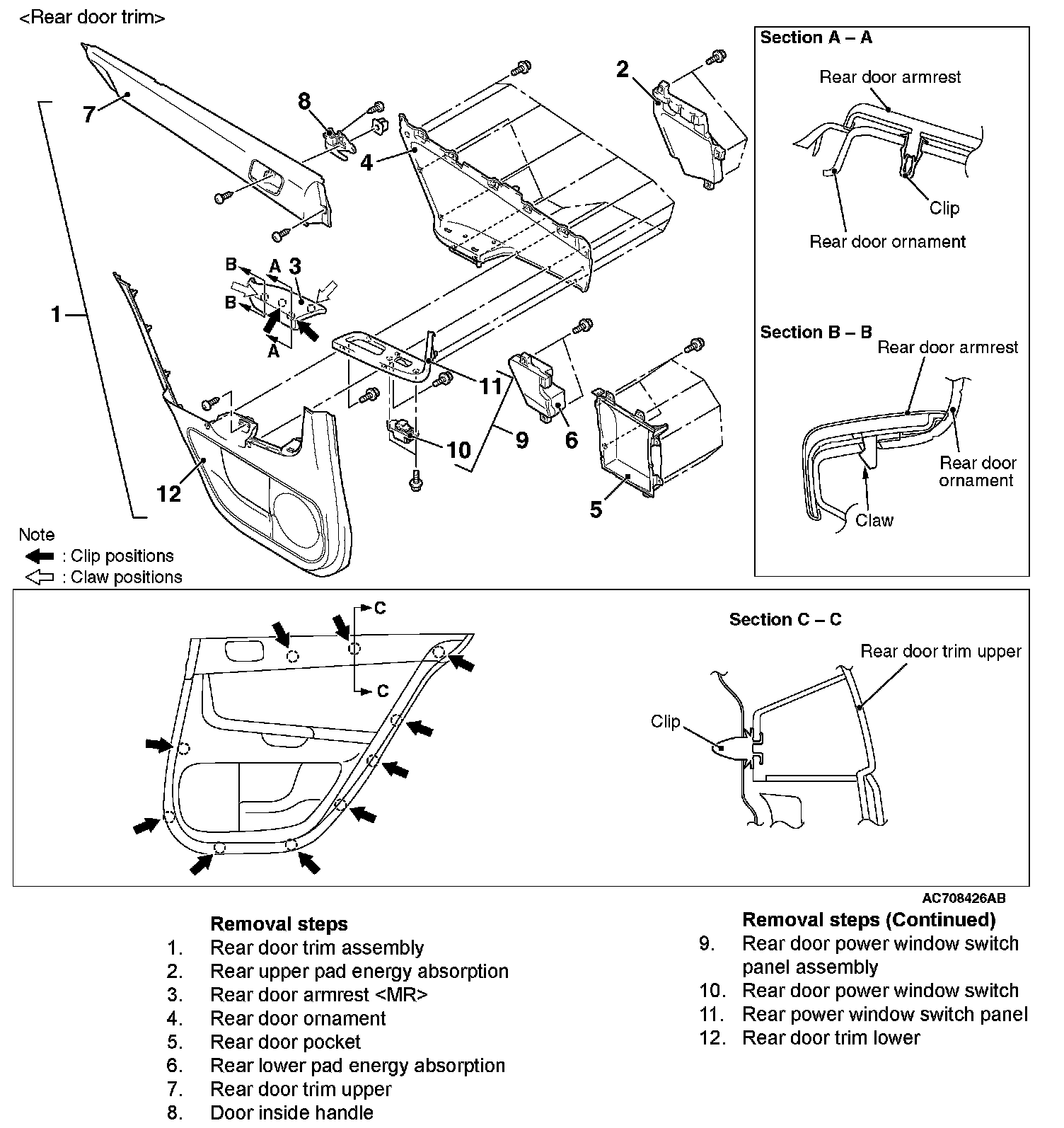

Removal Steps 1-12:






Required Special Tool:
- MB990784: Ornament Remover
