Front Door Latch: Service and Repair

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

CAUTION: When the door lock cylinder of the vehicle with WCM is replaced as a full service key set, the key must be registered with the barcode No. attached to the ignition key. (Refer to Wireless Control Module, ID Code Registration Criteria Table)

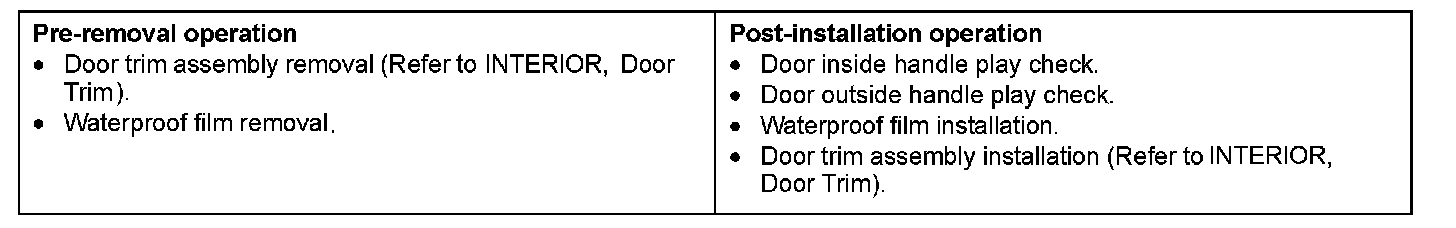

Pre-removal & Post-installation Operation:

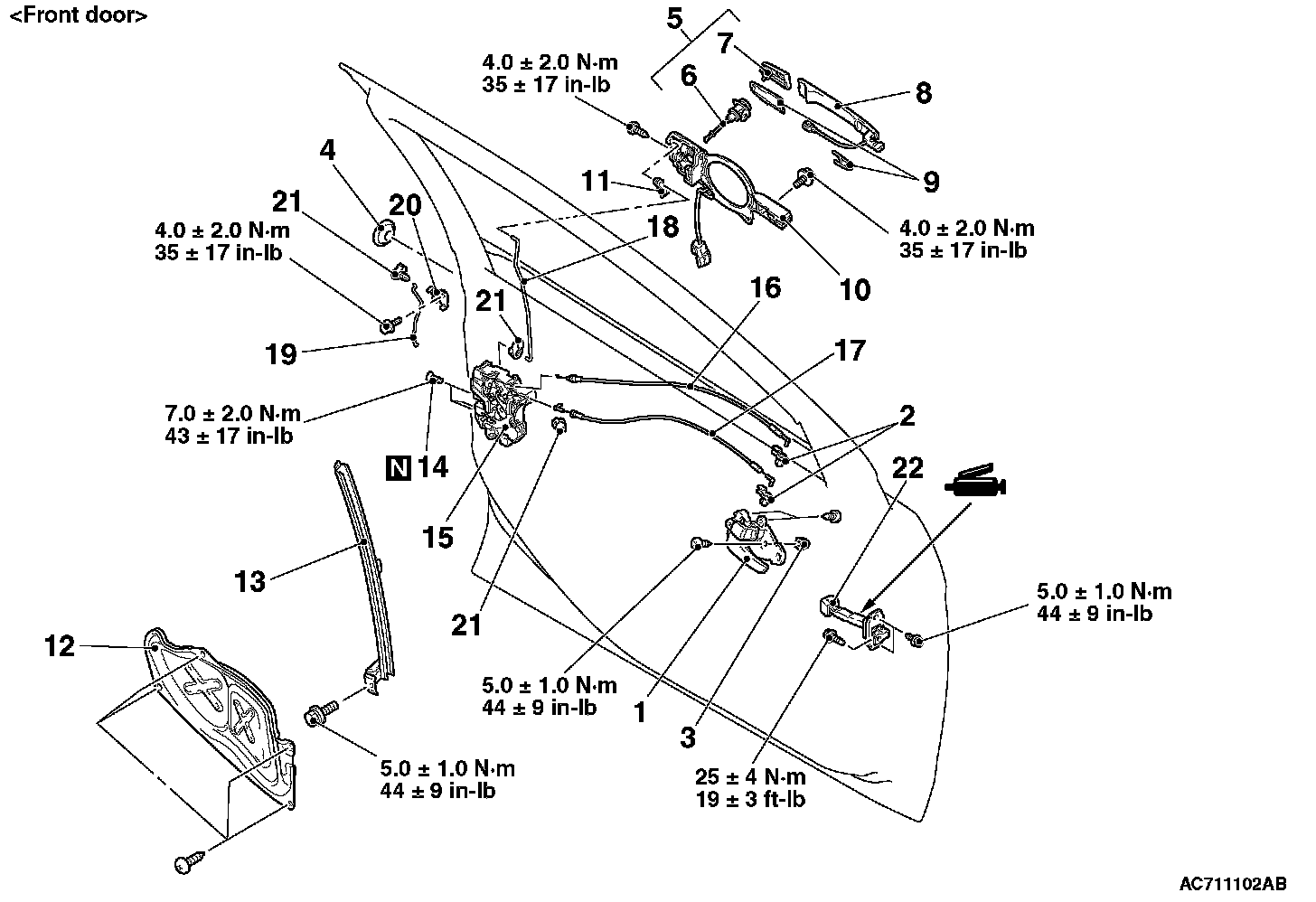

Removal Steps 1-22 (Part 1):

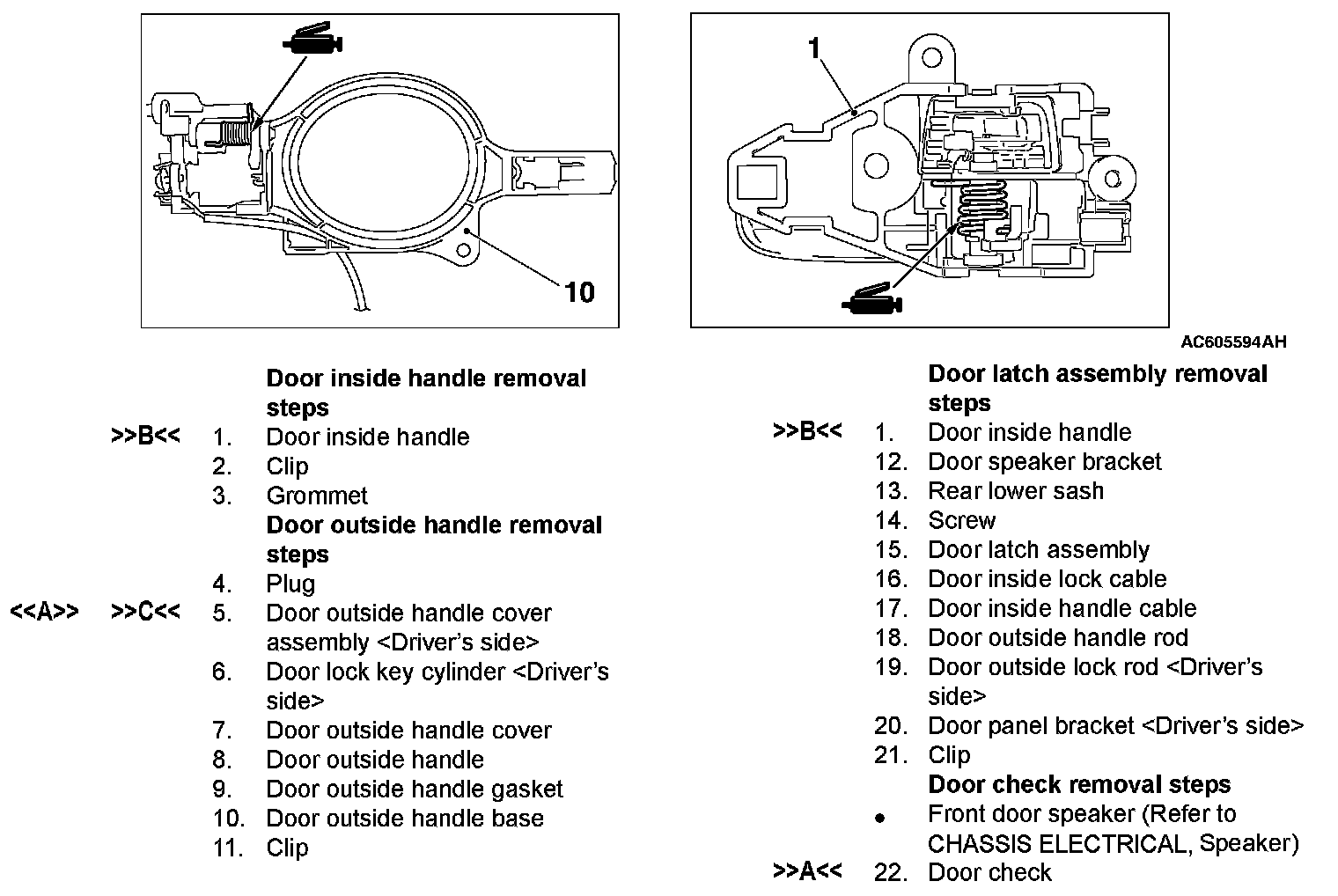

Removal Steps 1-22 (Part 2):

Removal Steps 1-16:

Required Special Tool:
- T-type Long Torx Wrench (T30)

REMOVAL SERVICE POINT

]]A[[ DOOR OUTSIDE HANDLE COVER REMOVAL

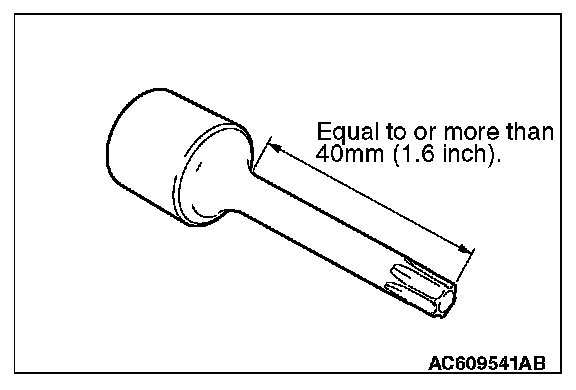

Prepare a tool as shown to remove the door outside handle cover.

INSTALLATION SERVICE POINTS

[[A]] DOOR CHECK INSTALLATION

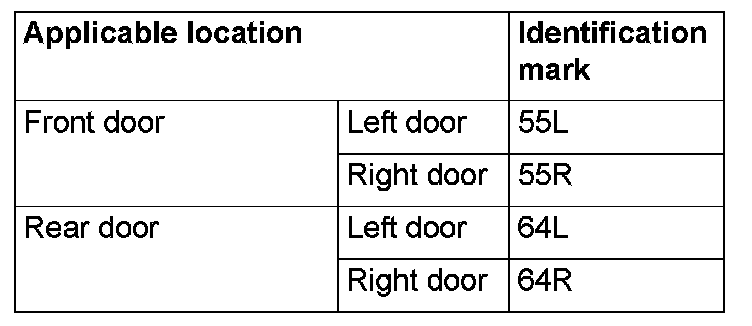

Install the door check with the following identification marks facing upward.






[[B]] DOOR INSIDE HANDLE INSTALLATION

When connecting the inside cable to the door inside handle, ensure that the door latch and the inside handle are locked.

[[C]] DOOR OUTSIDE HANDLE BASE INSTALLATION

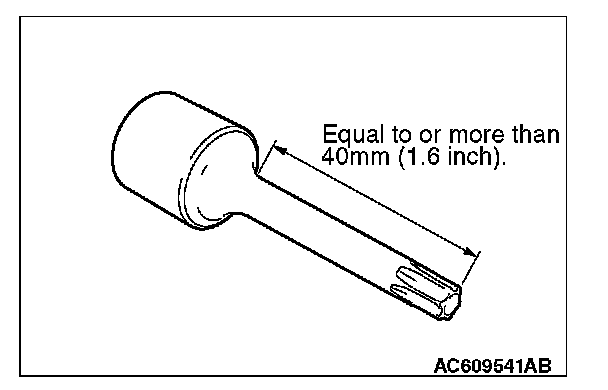

Prepare a tool as shown, and tighten it to the specified torque.

Tightening torque: 4.0 ± 2.0 N.m (35 ± 17 in.lb)
