Rear Bumper: Service and Repair

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

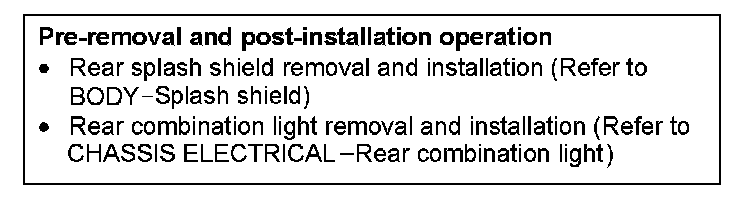

Pre-removal & Post-installation Operation:

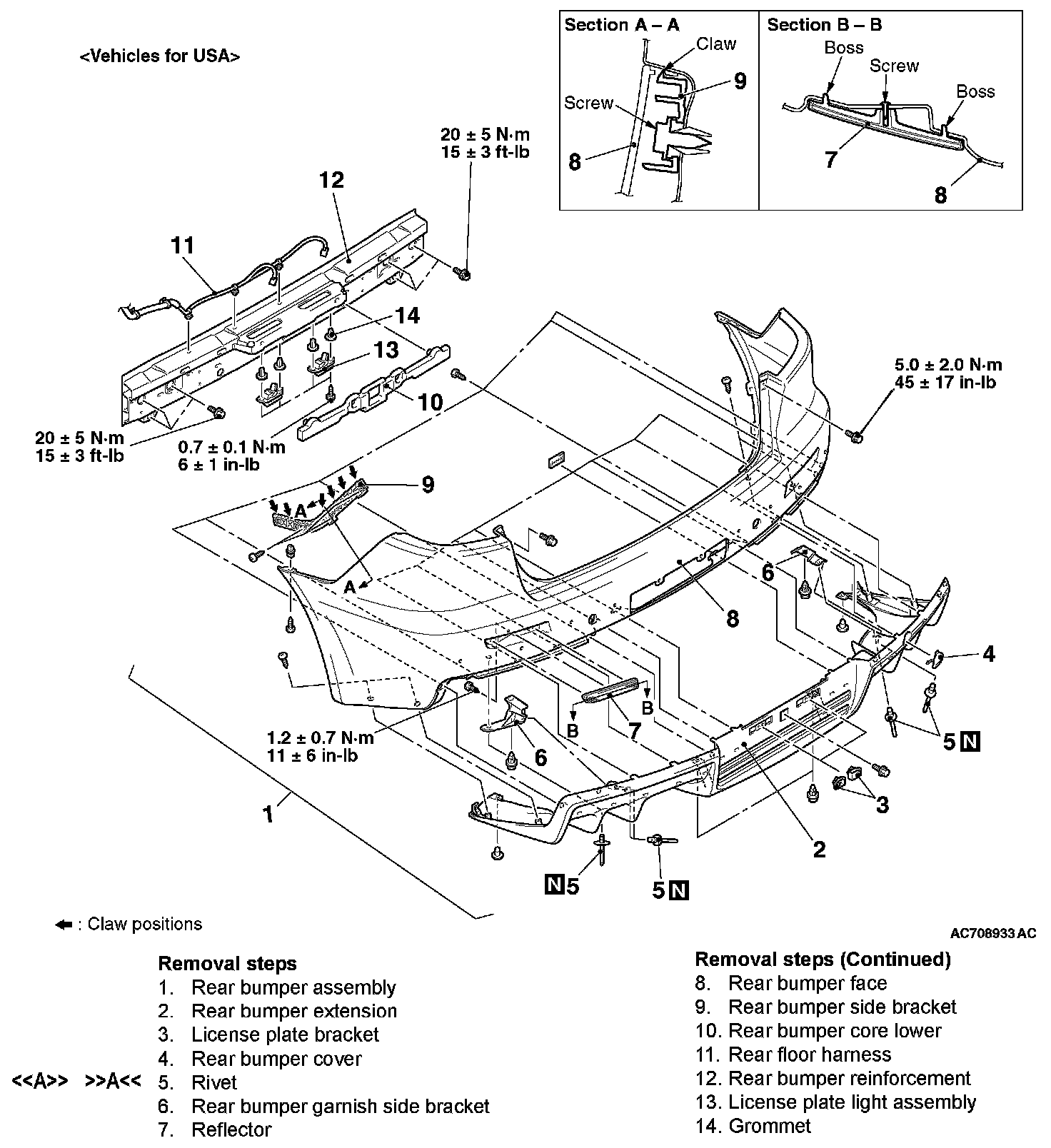

Removal Steps 1-14:

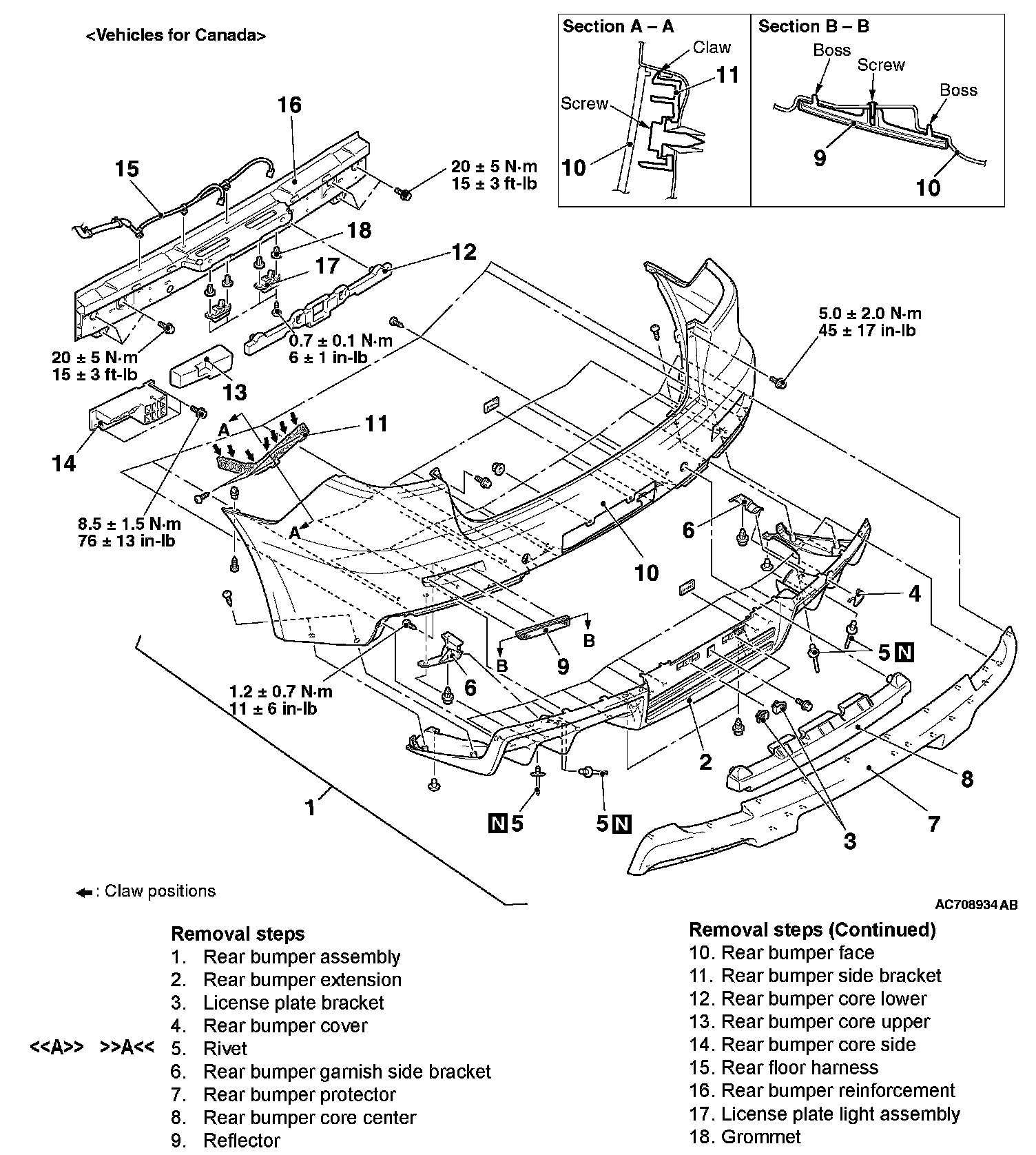

Removal Steps 1-18:

REMOVAL SERVICE POINT

]]A[[ RIVETS REMOVAL

Refer to FRONT BUMPER DISASSEMBLY SERVICE POINT.

INSTALLATION SERVICE POINT

[[A]] RIVETS INSTALLATION

Refer to FRONT BUMPER ASSEMBLY SERVICE POINT.
