Inspection Procedure 1
Inspection Procedure 1: Scan tool cannot communicate with WCM.CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.
TECHNICAL DESCRIPTION (COMMENT)
If the M.U.T.-III cannot communicate with the WCM, the CAN bus lines may be defective. If the WCM does not work, the WCM or the power supply circuit maybe defective.
TROUBLESHOOTING HINTS
- Malfunction of the power supply or ground of WCM
- Malfunction of CAN bus line
- Malfunction of WCM
DIAGNOSIS
Required Special Tools:
- MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827 M.U.T.-III USB Cable
- MB991910 M.U.T.-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan toolMB991958.

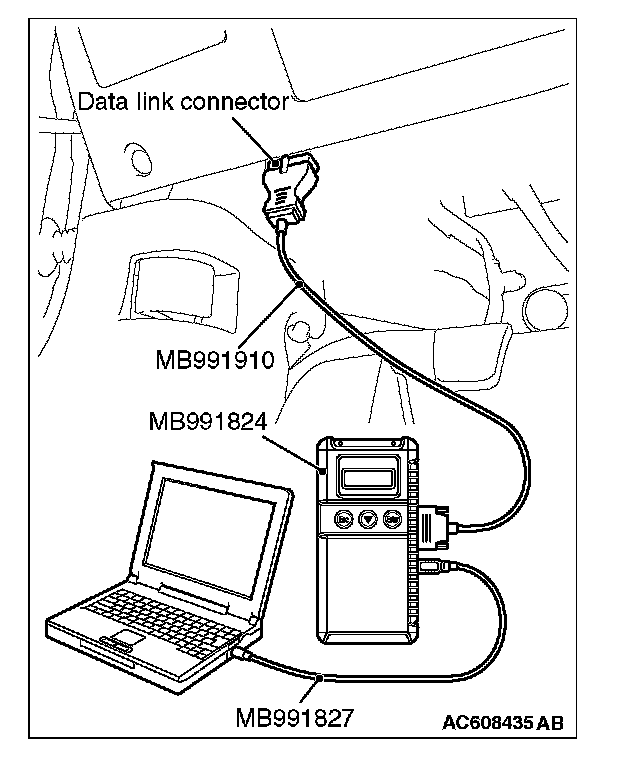

1. Connect scan tool MB991958. Refer to "How to connect the Scan Tool(M.U.T.-III)." Scan Tool Connecting
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line (Refer to Controller Area Network, Diagnosis).
STEP 2. Check the power supply circuit and the ground circuit to WCM.
Refer to Inspection Procedure 4 "Abnormality in WCM power supply and ground circuits." Inspection Procedure 4
Q: Is the power supply circuit and the ground circuit to WCM in good condition ?
YES: Go to Step 3.
NO: Repair the power supply circuit and the ground circuit to WCM.
STEP 3. Retest the system
Check if scan tool can communicate with WCM.
Q: Does the scan tool communicate with WCM?
YES: The trouble can be an intermittent malfunction (Refer to General (Body and Chassis) - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction).
NO: Replace WCM and register the ID codes (Refer to ID Codes Registration Judgment Table).
