Overhaul

TRANSMITTER

DISASSEMBLY AND ASSEMBLY

Post-Installation Operation:

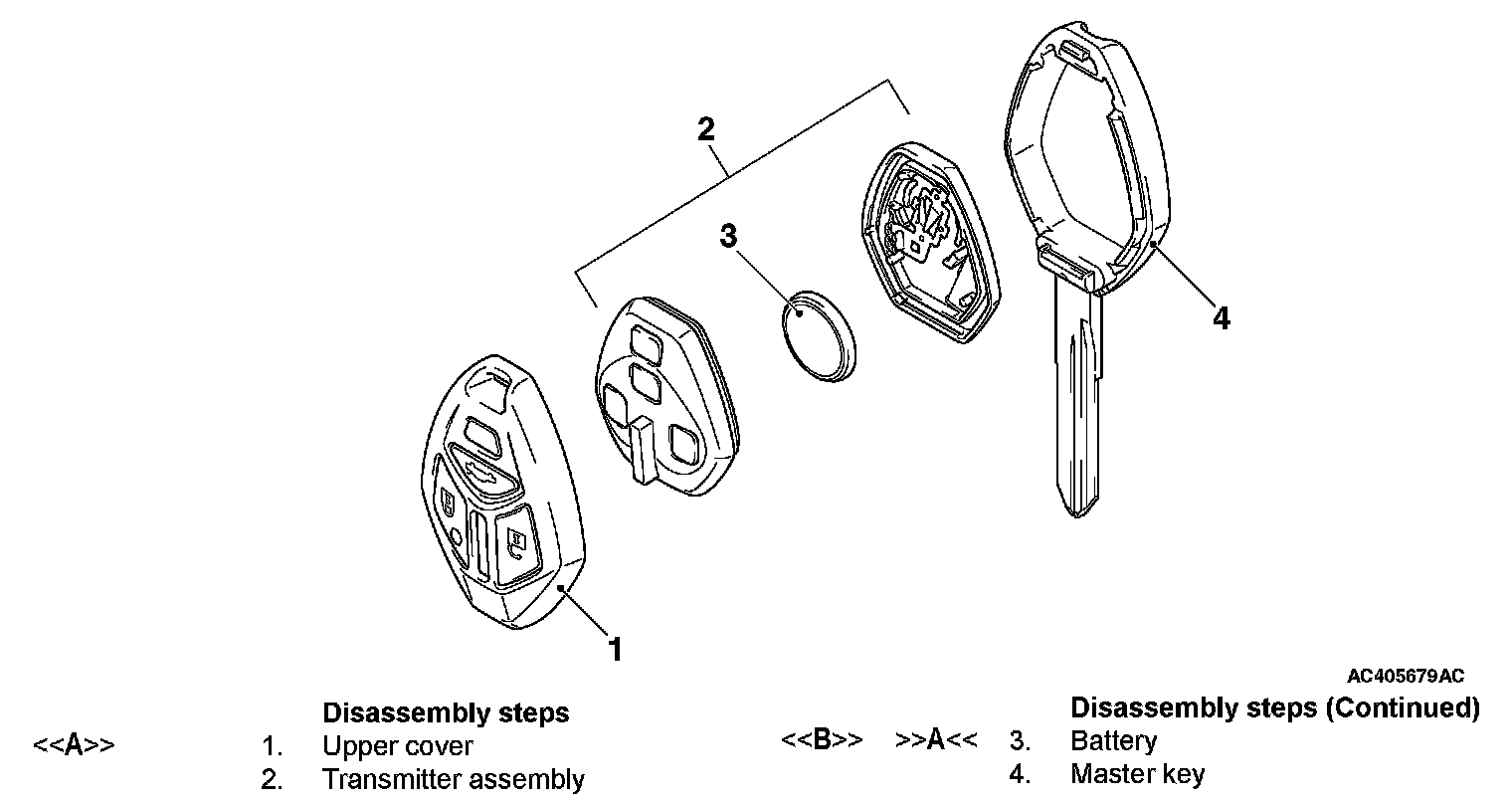

Disassembly Steps 1-4:

DISASSEMBLY SERVICE POINTS

[A] UPPER COVER REMOVAL

CAUTION: To prevent damage to the transmitter, wrap a flat-tipped screwdriver with protective tape before prying.

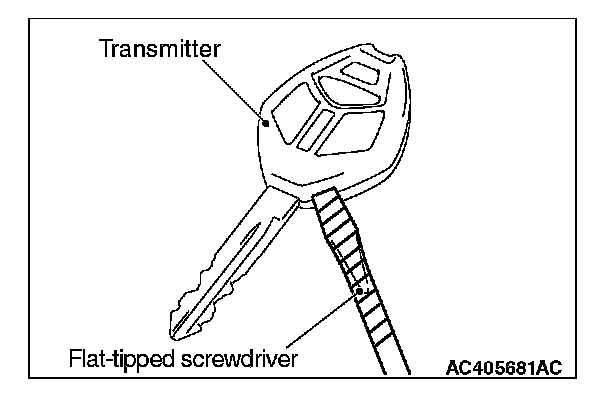

Insert a flat-tipped screwdriver in the area shown, and remove the upper cover by prying it with the screwdriver.

[B] BATTERY REMOVAL

CAUTION:
- Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
- To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.

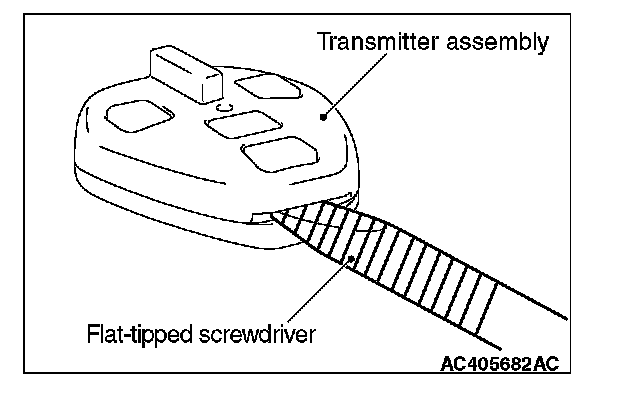

Insert a flat-tipped screwdriver in the area shown, and remove the battery by prying it with the screwdriver.

ASSEMBLY SERVICE POINT

]A[ BATTERY INSTALLATION

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.






Install a new battery to the transmitter assembly with its (+) side facing towards the master key side.

Battery required for replacement: Coin type battery CR1620
