Component Tests and General Diagnostics

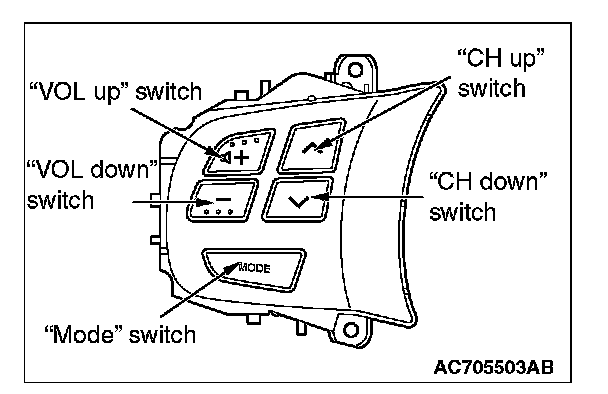

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH INSPECTION

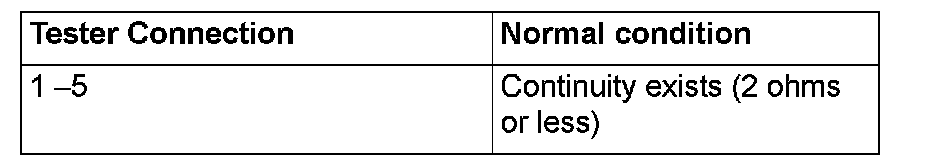

Use an ohmmeter to measure the resistance value between the terminal.

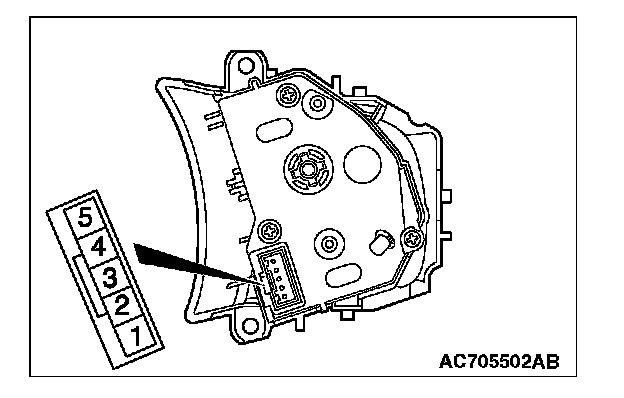

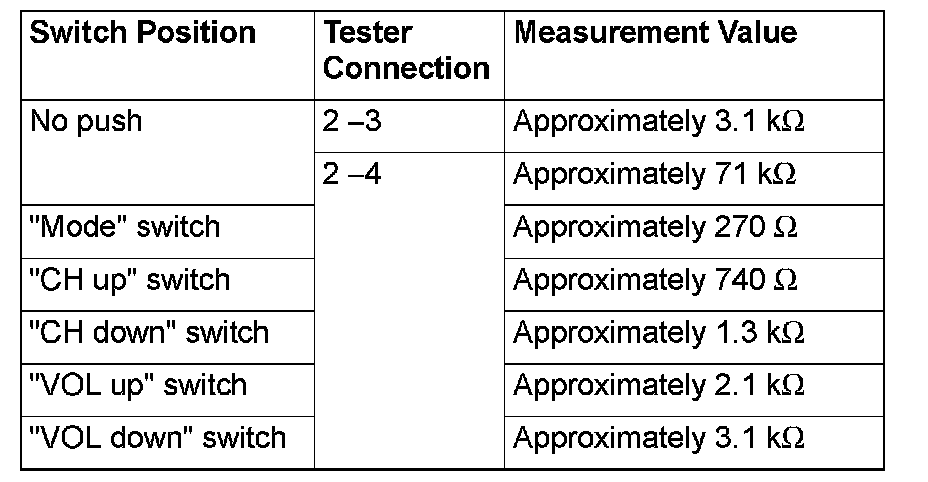

On the steering wheel audio remote control switch connector, check the continuity between terminals.
