Initial Inspection and Diagnostic Overview

INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS

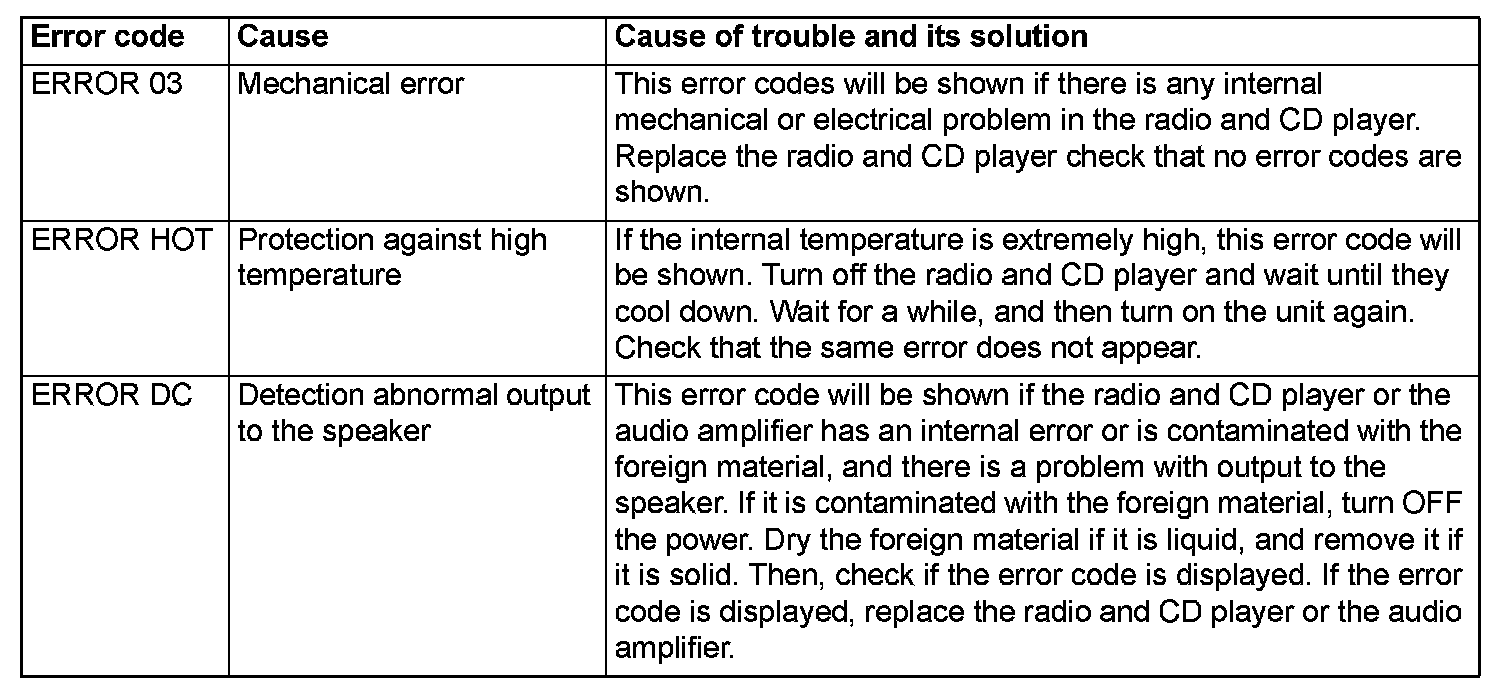

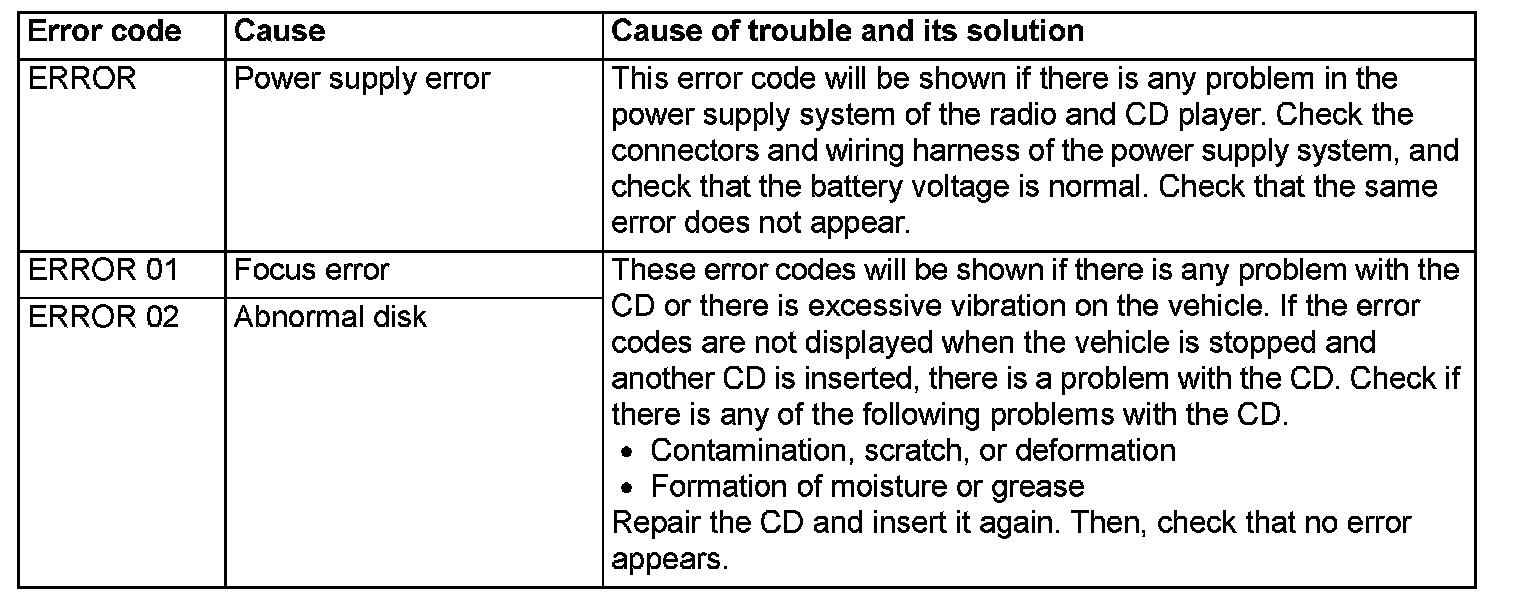

RADIO AND CD PLAYER ERROR CODES
If the radio and CD player detects any malfunction in itself or the inserted CD, the error codes below will be shown on the display.

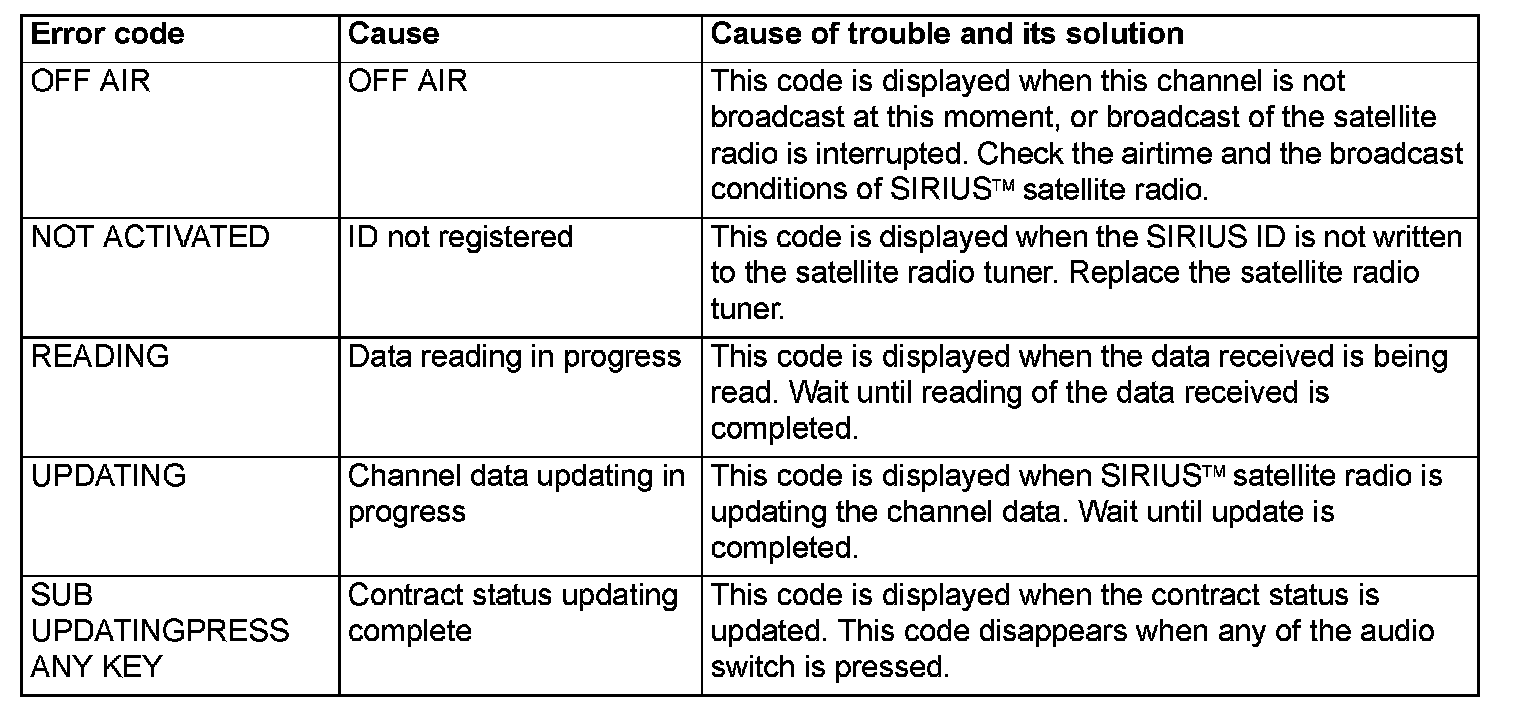

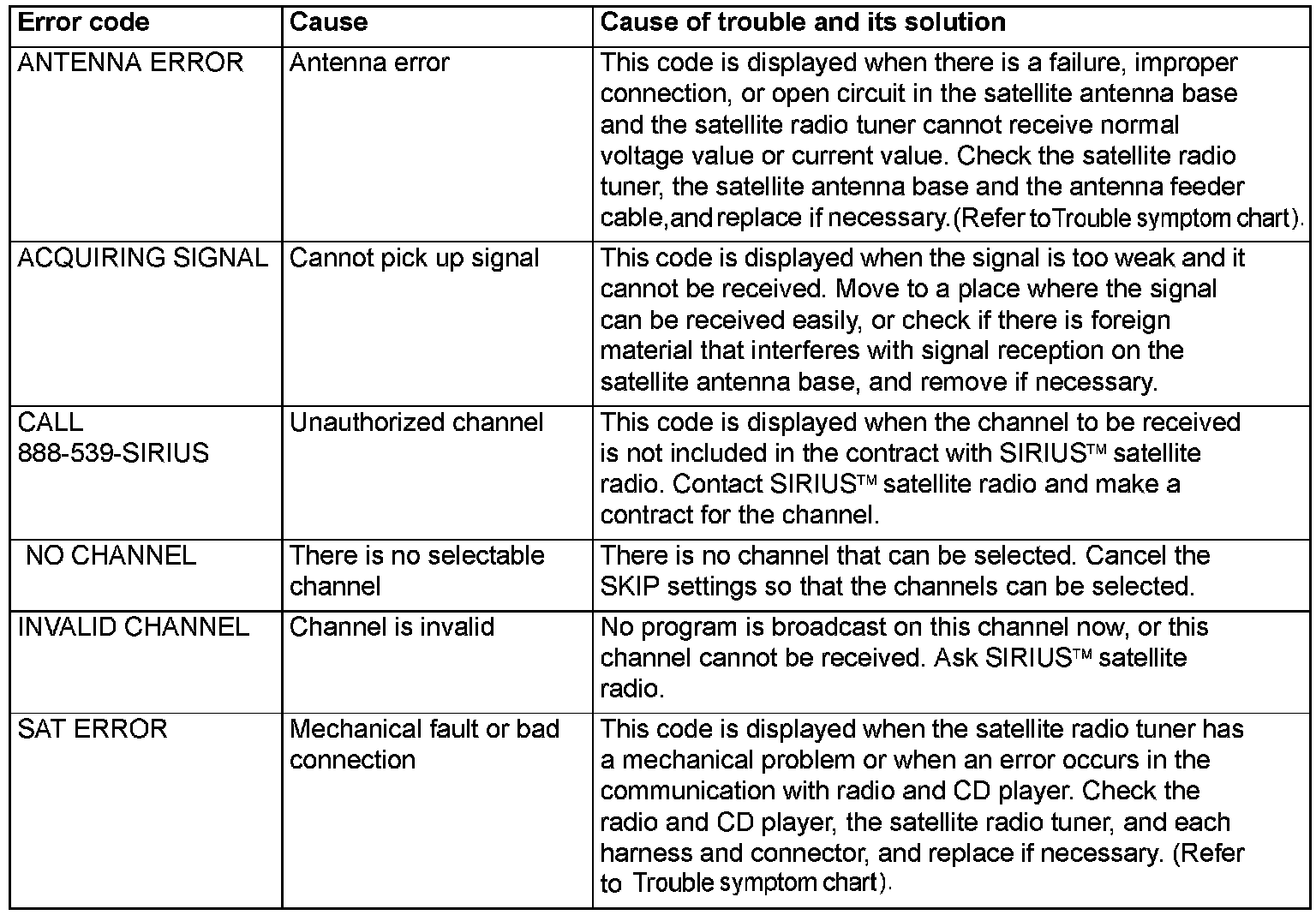

SATELLITE RADIO ERROR CODES [Vehicles with satellite radio tuner]
The display displays the error codes below if an abnormality related to the satellite radio is detected.
