Radio, Stereo, and Compact Disc: Description and Operation

RADIO AND CD PLAYER

GENERAL INFORMATION

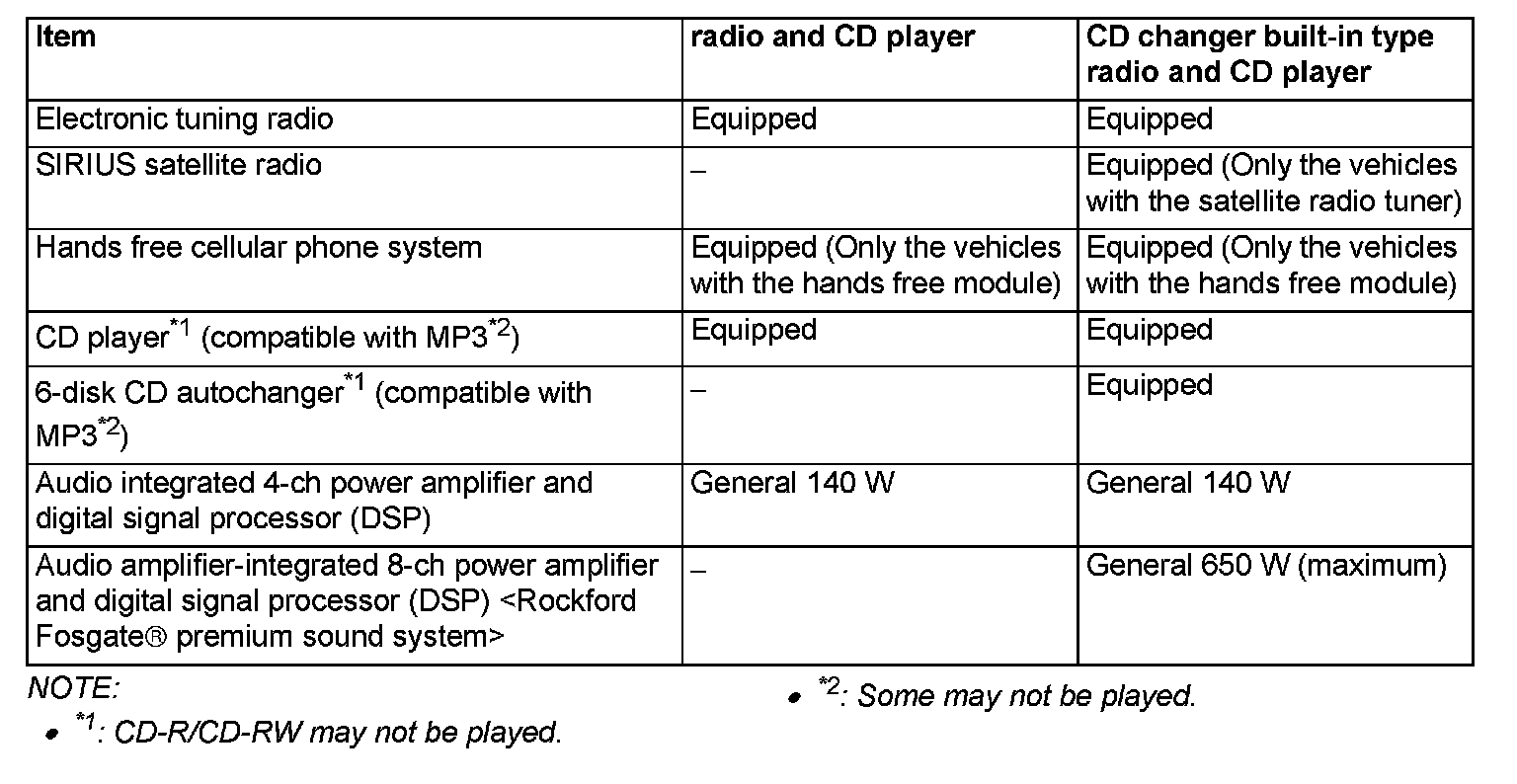

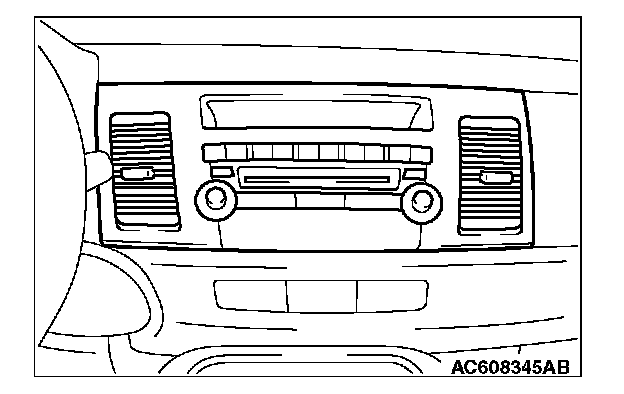

- Two types of radio and CD player, radio and CD player or CD changer built-in type radio and CD player , have been established. The radio and CD player was designed to create a uniformity impression with the instrument panel. Also, a new function automatically corrects the sound quality and volume during driving.

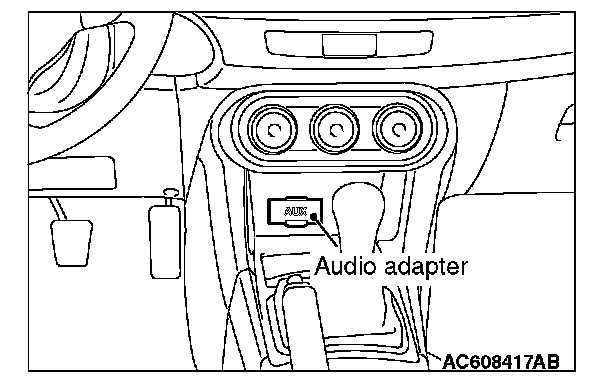

- For the vehicles with Rockford Fosgate (R) premium sound system, the audio adapter has been established onto the center tray. With this modification, portable music player can be connected.
